Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer case shield, if equipped. Refer to TRANSFER CASE SHIELD REPLACEMENT  .
  2. Remove the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT -- FRONT in Propeller Shaft.
  3. Disconnect the transfer case switch electrical connector (2).
  4. Disconnect the encoder motor electrical connector (7).

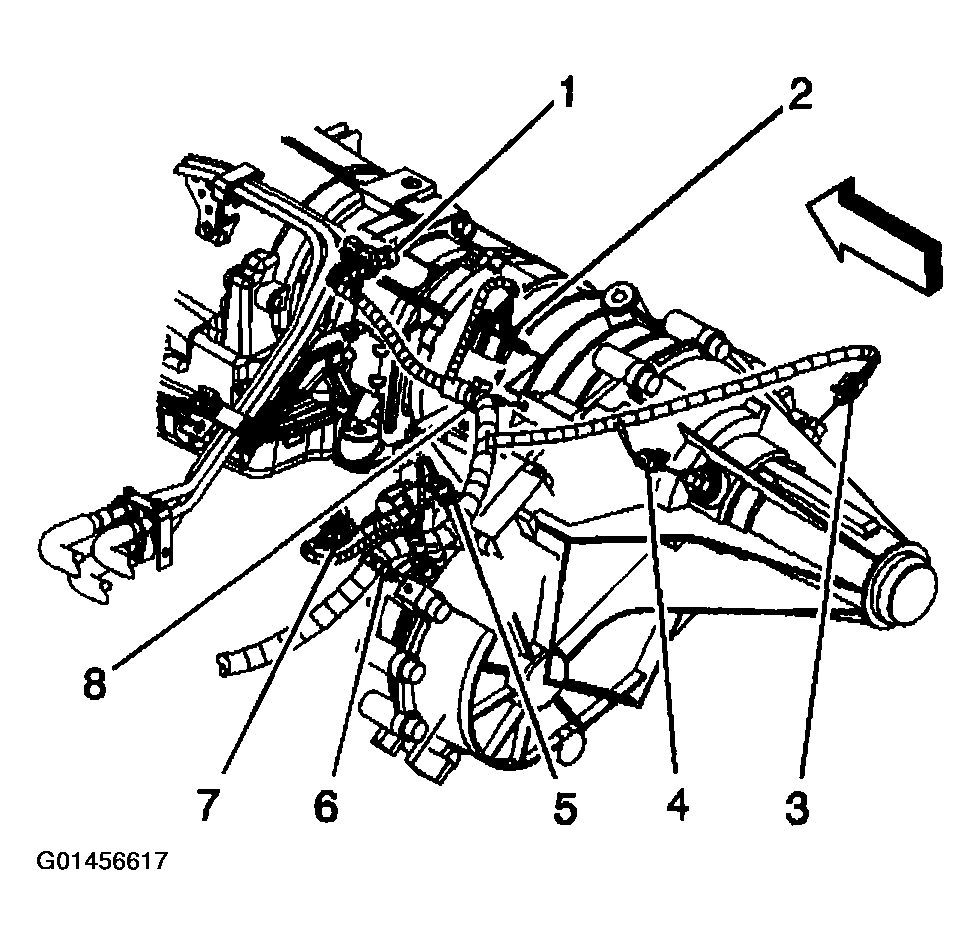

    Fig 1: Disconnecting Encoder Motor Electrical Connector & Transfer Case Switch Electrical Connector
    G01456617Courtesy of GENERAL MOTORS CORP.
  5. Remove the encoder motor bolts.
  6. Remove the encoder motor.
  7. Remove the actuator insulator gasket.
  8. If replacing the encoder motor, remove the locating pins from the old motor.

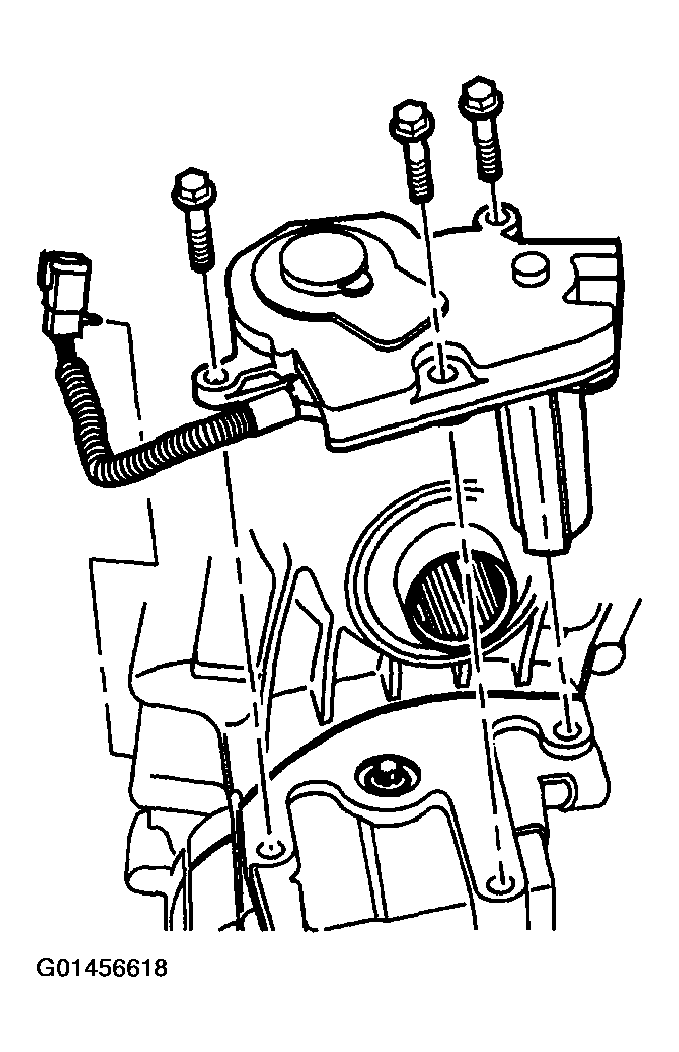

    Fig 2: Removing Encoder Motor, Bolts & Actuator Insulator Gasket
    G01456618Courtesy of GENERAL MOTORS CORP.
