Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step tests the functionality of the mode switch.
  2. 3. This step tests the modules ability to operate the transfer case modes.

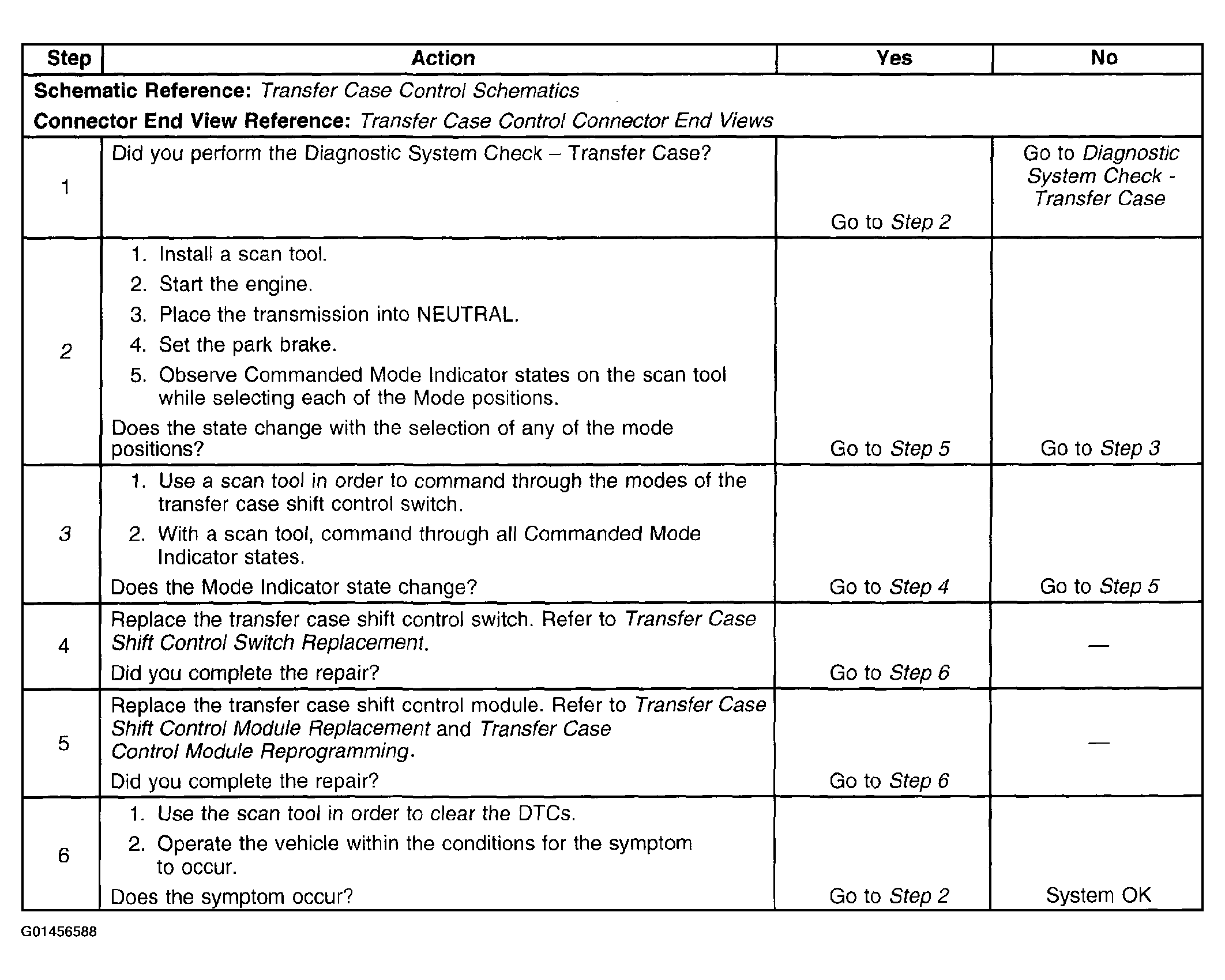

    Fig 1: Diagnostic System Check - Transfer Case Shift Control Switch Inoperative
    G01456588Courtesy of GENERAL MOTORS CORP.
