Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

2. This step determines the position of the front axle switch.
3. This step helps determine if the front axle will not engage.
4. This step helps determine if the front axle will not disengage.

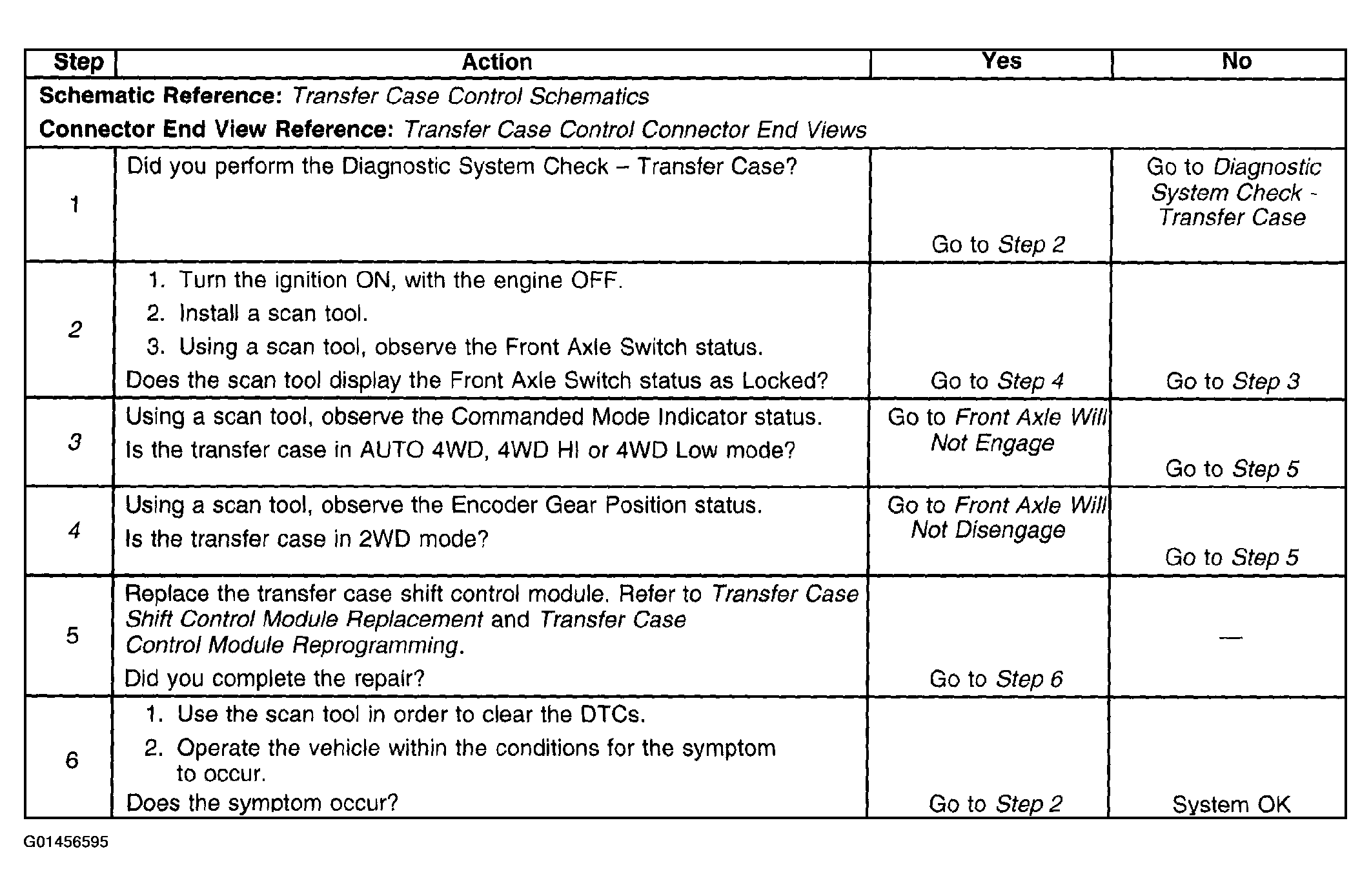

Fig 1: Diagnostic System Check - Transfer Case Shift Control Switch Indicators Flash Continuously 15 Seconds or More
Courtesy of GENERAL MOTORS CORP.
