Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

2. This step determines whether the failure is the result of a malfunctioning transfer case shift control module or the IPC.

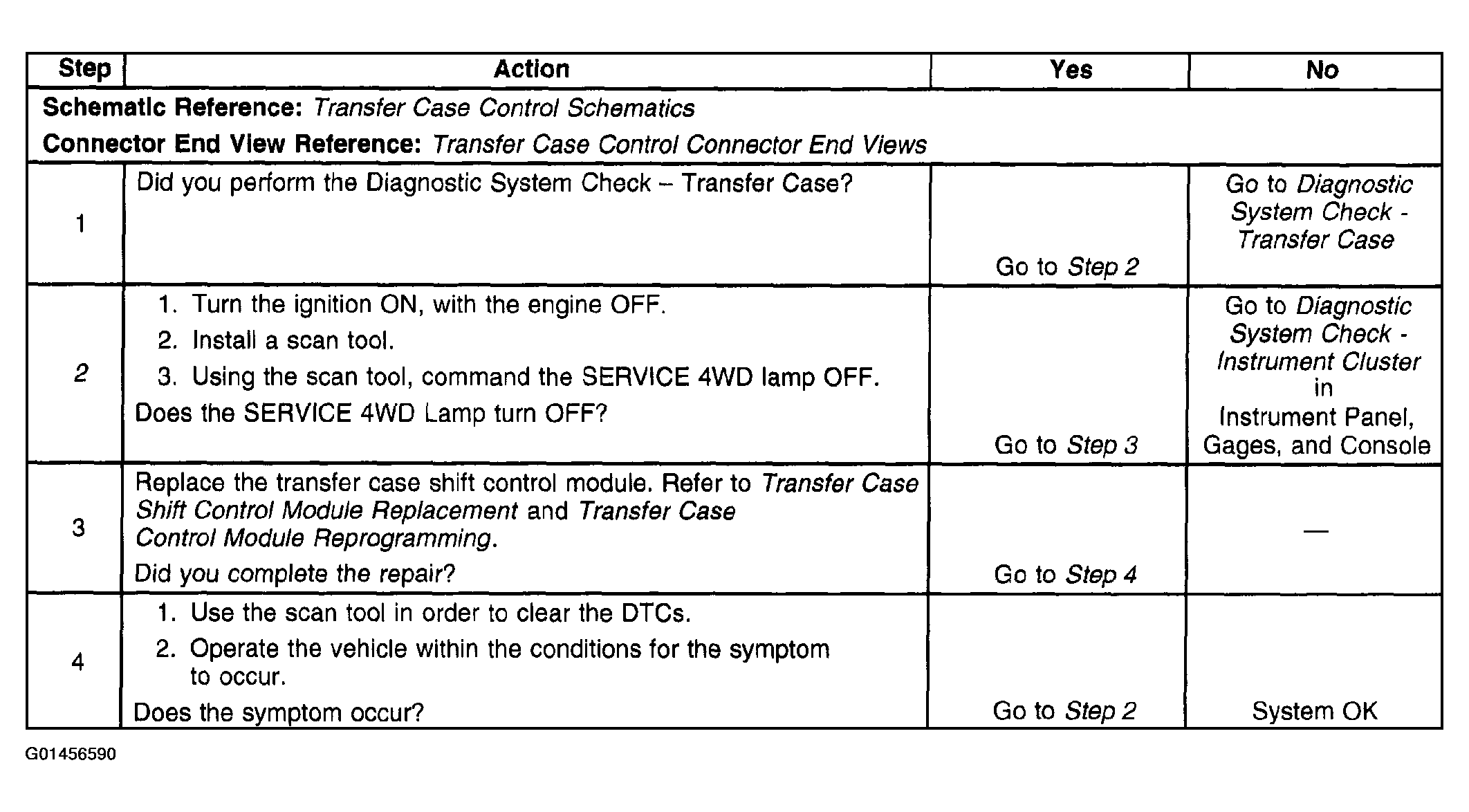

Fig 1: Diagnostic System Check - Service Indicator Always On
Courtesy of GENERAL MOTORS CORP.
