4LO Power Flow

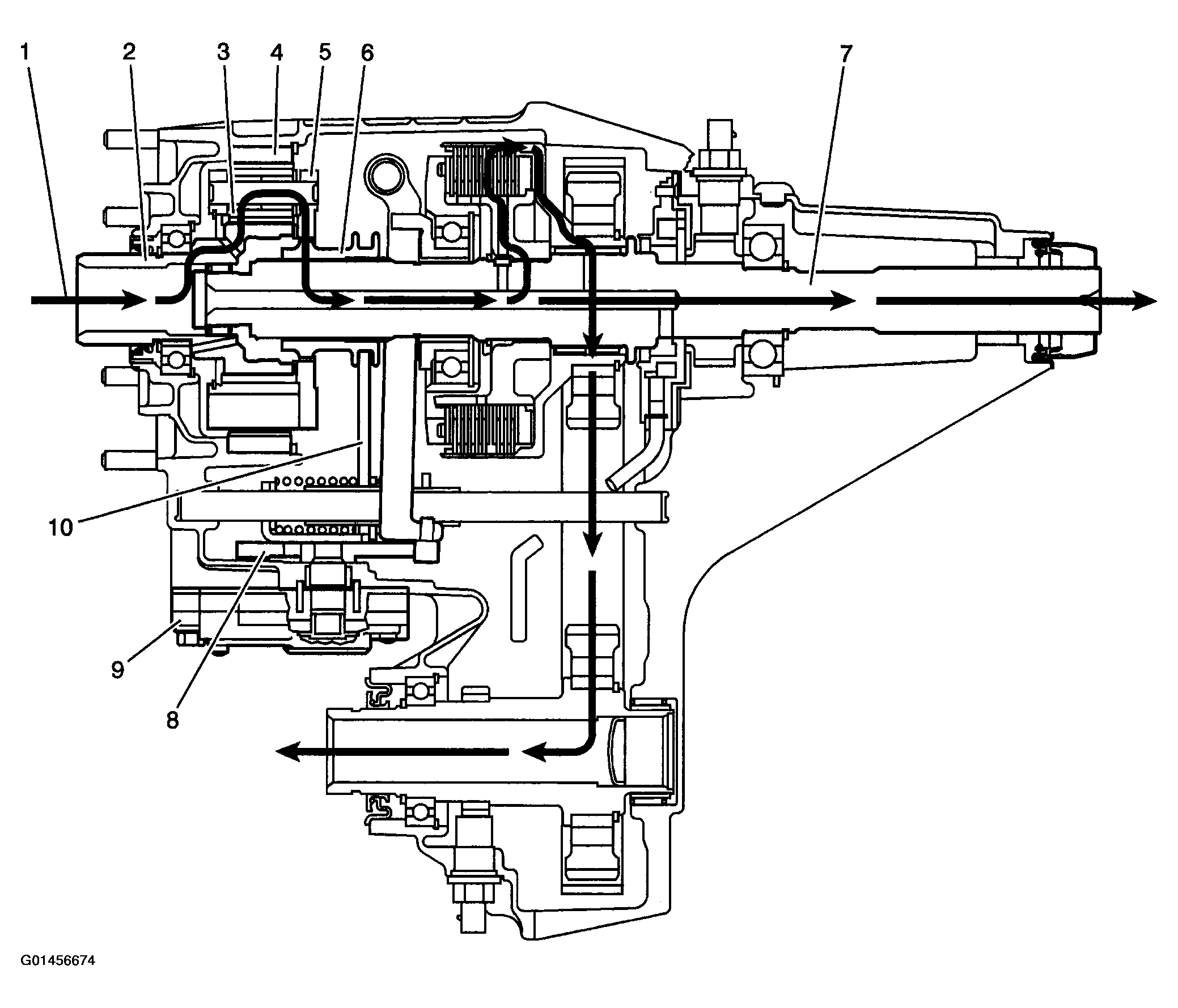

When shifting the transfer case to the 4LO mode, it commands the encoder motor (9) to turn the control actuator lever shaft (8), to move the high/low range shift fork (10). The shift fork (10) moves the high/low range collar (6), which is slip splined on the rear output shaft (7) toward the rear of the transfer case. The range collar (6) outer teeth disengage from the input shaft gear (2) inner teeth. The range collar (6) outer teeth then engage in the planetary carrier (5) teeth. The power flow is now from the input shaft gear (2) planetary teeth to the planetary gears (3) in the carrier. Rotating the planetary gears (3), which are engaged in the annulus gear (4), the planetary carrier (5) rotates. The planetary carrier (5) engaged to the range collar (6), drives the rear output shaft (7), providing a 2.72:1 reduction to the speed of the rear output shaft (7). The power flow to the front propshaft is the same as it is in the 4HI.
A neutral position is obtained when the range collar (6) is not engaged to the input shaft gear (2) or the planetary carrier (5). Neutral position is used for towing the vehicle.
Service 4WD Indicator: The Service 4WD indicator is an integral part of the cluster and cannot be serviced separately. This lamp is used to inform the driver of the vehicle that a transfer case system malfunctioned. The Service 4WD indicator is controlled by the transfer case shift control module via Class 2.
Transfer Case Encoder: The encoder is mounted to the transfer case motor/encoder assembly and is replaced as an assembly. The encoder converts the shift detent lever shaft position, representing a mode or range, into an electrical signal input to the transfer case shift control module. The module detects what position the transfer case is in by monitoring the voltage returned on the encoder signal circuit. This voltage translates into AUTO 4WD, 2HI, 4HI, NEUTRAL, and 4LO or in transition between gears.
Transfer Case Motor/Encoder: The transfer case motor/encoder consists of a permanent magnet (PM) DC motor and gear reduction assembly. It is located on the left hand side, driver's side, of the transfer case. When activated, it turns the shift detent lever shaft of the transfer case, clockwise or counterclockwise,
to shift the transfer case. The motor/encoder is controlled with a pulse width modulated (PWM) signal by the transfer case shift control module. This circuit consists of a driver on both the Motor A and Motor B circuits. The encoder motor is bi-directional in order to allow the motor to shift the transfer case from 2HI or 4HI to NEUTRAL and 4LO positions.
Transfer Case Motor Lock: The transfer case motor lock is used to provide a 2HI, 4HI, and 4LO lock-up feature. When the lock circuit is energized, the transfer case encoder motor is allowed to turn. When the transfer case is placed 2HI, 4HI, or 4LO the motor lock circuit is de-energized and the lock is applied. This assures that the transfer case remains in the current gear position until a new gear position is requested. When AUTO is selected, the motor lock remains applied until an adaptive mode, torque being applied to the front propshaft, is required. During an adaptive mode the motor lock circuit is energized and the motor lock is released, enabling the encoder motor to turn and apply or release torque at the front propshaft.
Transfer Case Shift Control Module: The transfer case shift control module uses the VIN information for calculations that are required for the different calibrations used based on axle ratio, transmission, tire size, and engine. The system does not know which calibration to use without this information. When the vehicle is in the AWD mode, the transfer case shift control module monitors the speed of the front and rear propshaft, in order to detect wheel slippage. When wheel slippage is detected, the module applies a clutch pack contained inside the transfer case. This clutch pack is used to lock-in and apply the front propshaft, transferring torque to the front wheels. The clutch pack is applied by a motor/encoder assembly. When slip is no longer detected by the transfer case shift control module, the clutch is no longer applied.
Transfer Case Speed Sensors: There are three speed sensors on the automatic transfer case (ATC), two on the rear output shaft and one on the front output shaft. Each speed sensor is a permanent magnet (PM) generator. The PM generator produces a pulsing AC voltage. The AC voltage level and number of pulses increases as speed increases. Vehicle Speed Sensor - One of the two speed sensors on the rear output shaft is the vehicle speed sensor (VSS) input to the powertrain control module (PCM). The PCM sends this information to the transfer case shift control module via the Class 2 serial data bus. Rear Propshaft Speed Sensor - The transfer case shift control module converts the pulsating AC voltage from the rear transfer case speed sensor to a rear propshaft speed in RPM to be used for calculations. The rear propshaft speed can be displayed with a scan tool. Front Propshaft Speed Sensor - The transfer case shift control module converts the pulsating AC voltage from the front transfer case speed sensor to front propshaft speed in RPM to be used for calculations, and to monitor the difference between the front and rear sensor speed. It is also used in the AUTO, Adapt, mode to determine the amount of slip and the percent of torque to apply to the front axle. The front propshaft speed can be displayed with a scan tool.
