2WD Power Flow
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

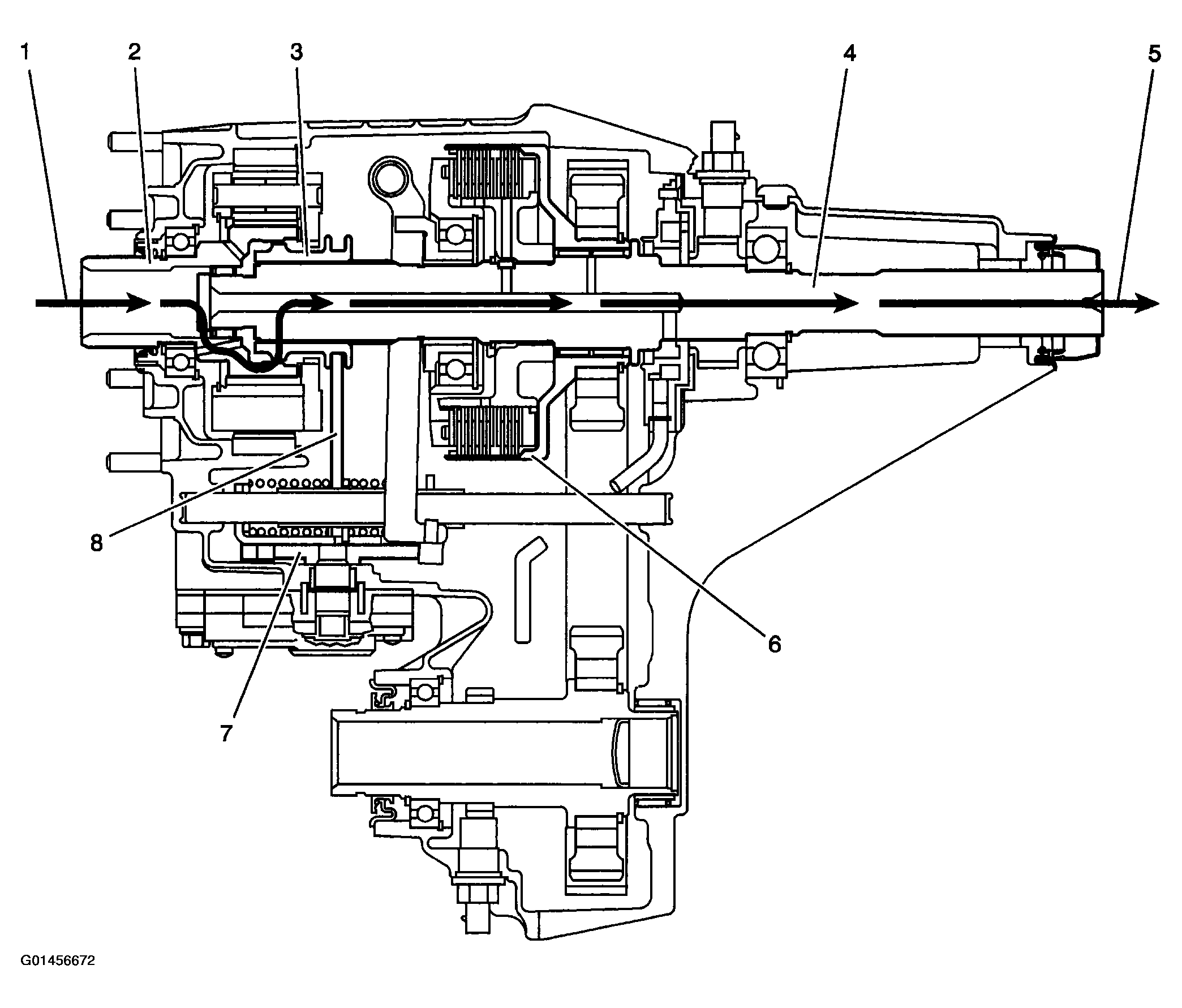

When the NVG 246 EAU is in the 2HI mode, the power flows from the transmission (1) to the input shaft gear (2). The input shaft gear (2) is connected to the rear output shaft (4) by the high/low range collar (3). The range collar (3) outer teeth are engaged with the input shaft gear (2) inner, high-speed position teeth. At the same time the range collar is slip splined to the rear output shaft (4). The rear output shaft (4) delivers the power flow to the rear propshaft (5). The position of the control actuator lever shaft (7) allows no clutch (6) engagement. The high/low range shift fork (8), is in the high-speed position on the control actuator lever shaft (7).
