Transfer Case Control Connector End Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

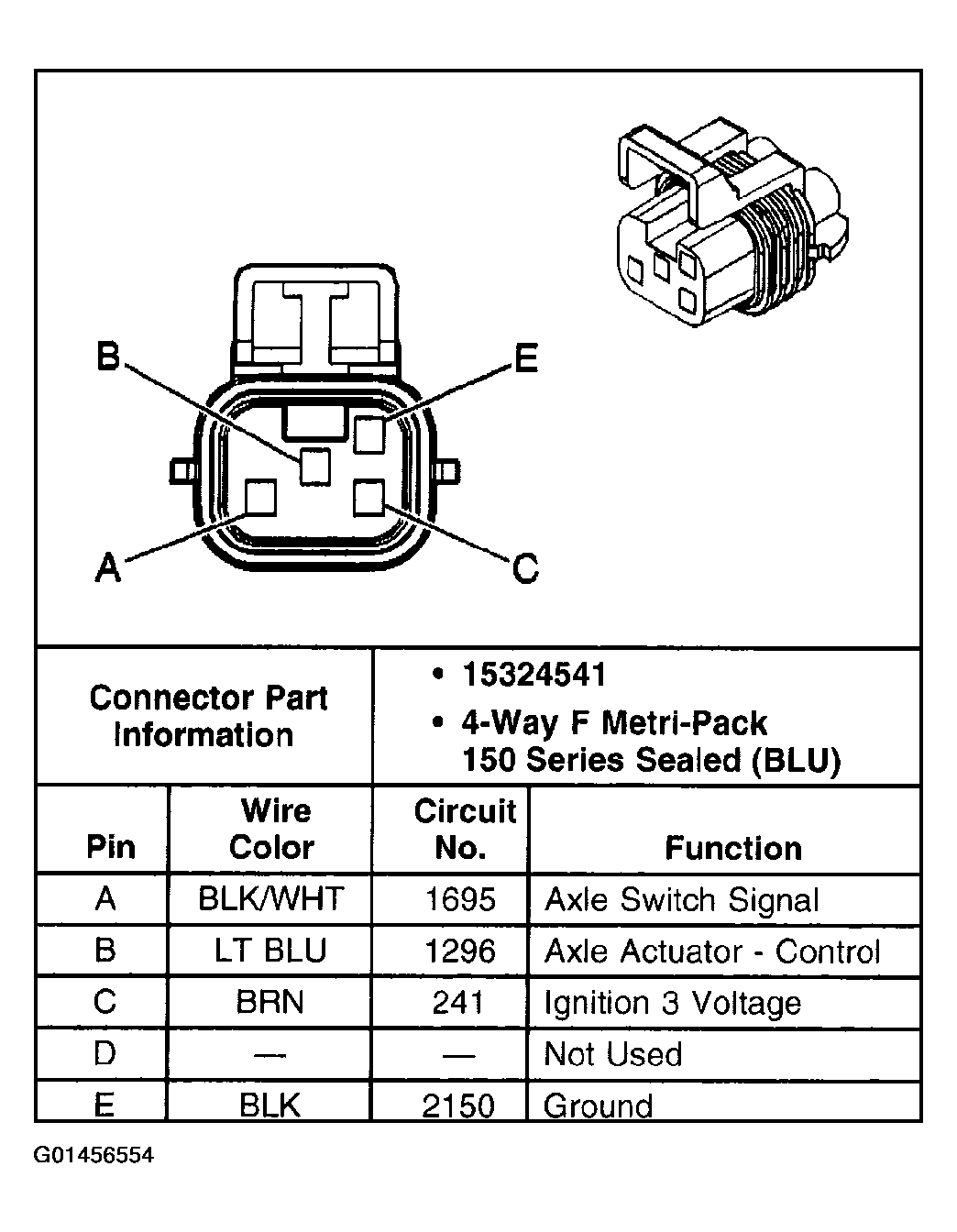

Fig 1: Identifying Front Axle Actuator Pin Terminals

G01456554

Courtesy of GENERAL MOTORS CORP.

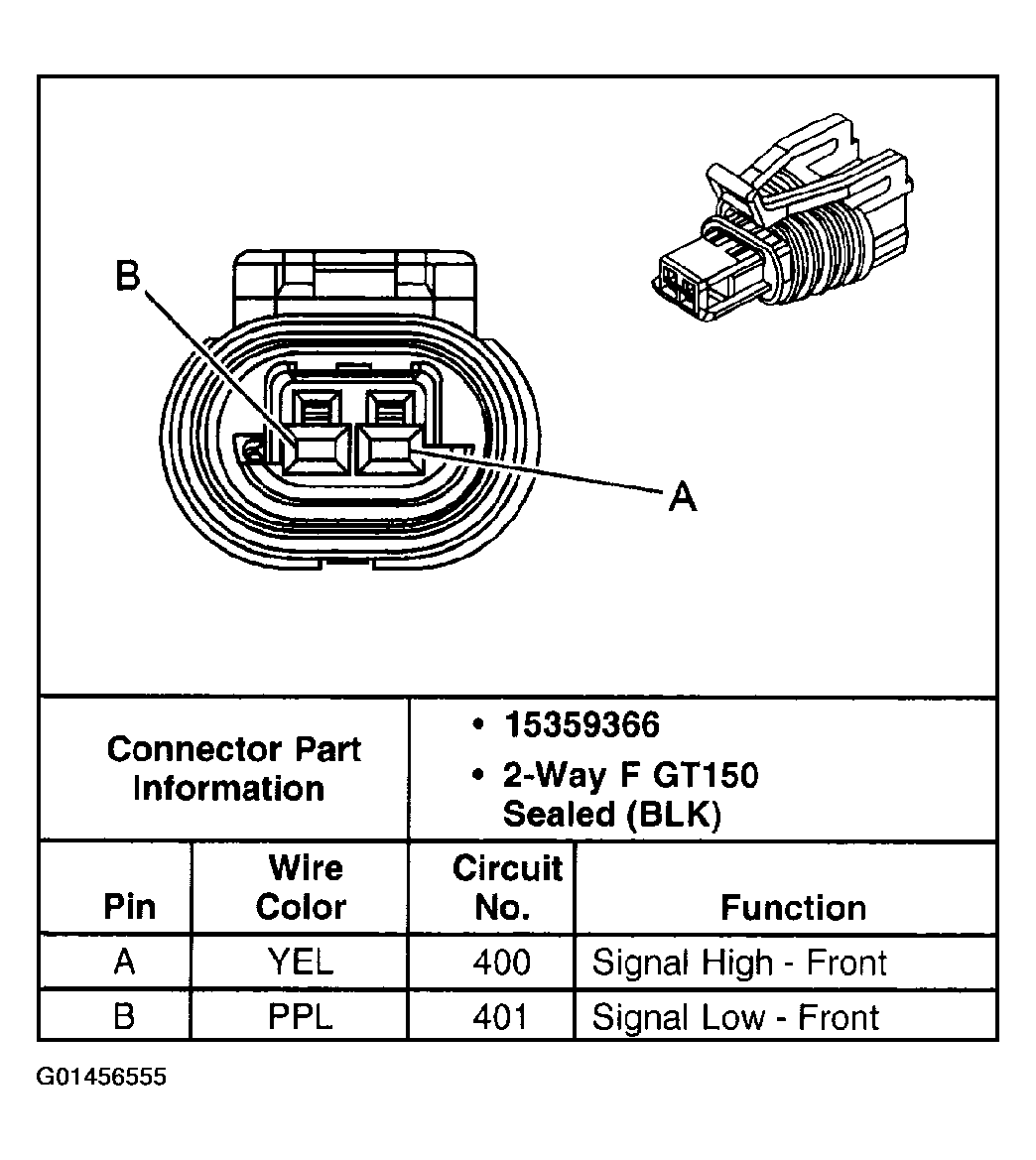

Fig 2: Identifying Propshaft Speed Sensor - Front Pin Terminals

G01456555

Courtesy of GENERAL MOTORS CORP.

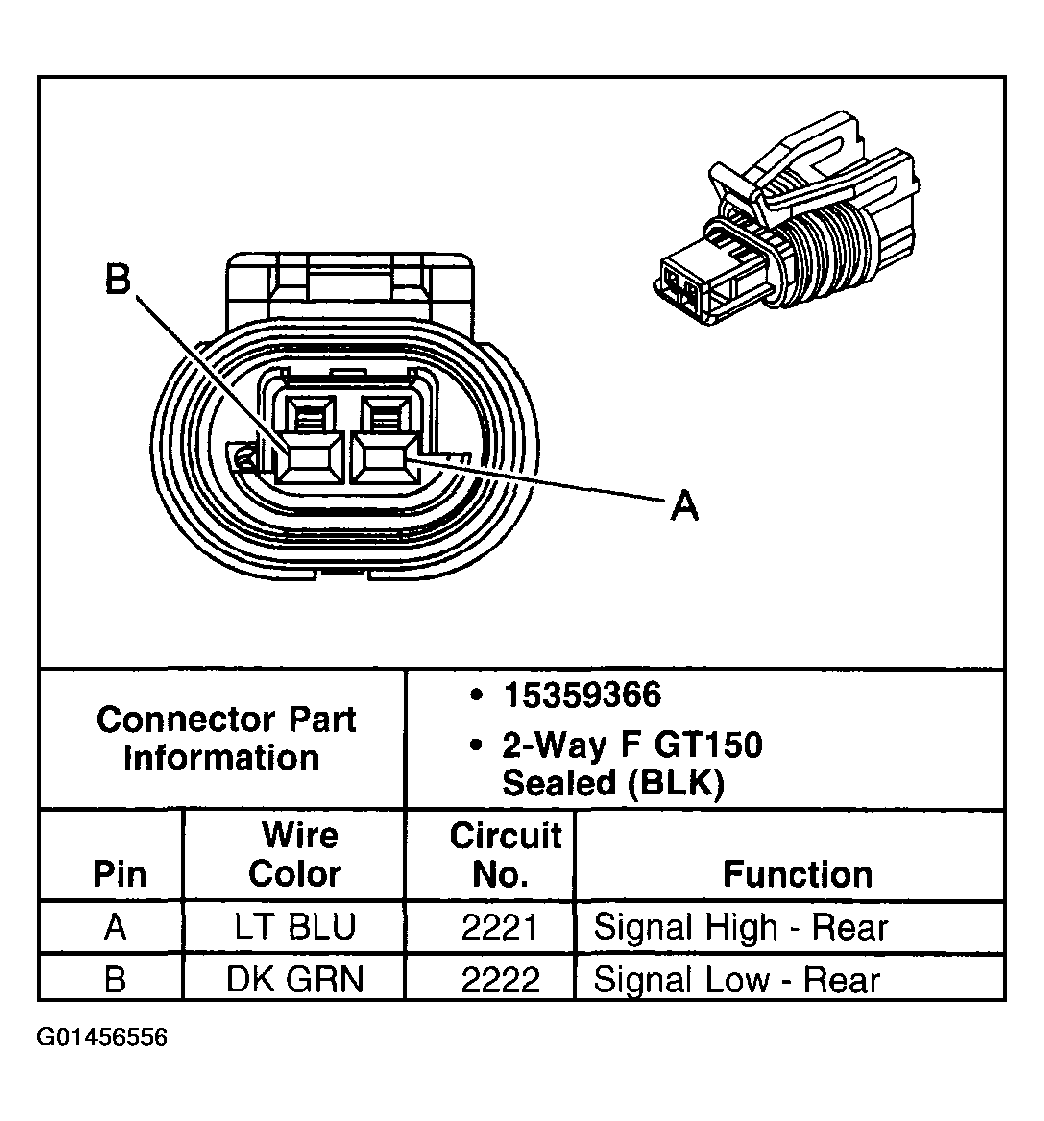

Fig 3: Identifying Propshaft Speed Sensor - Rear Pin Terminals

G01456556

Courtesy of GENERAL MOTORS CORP.

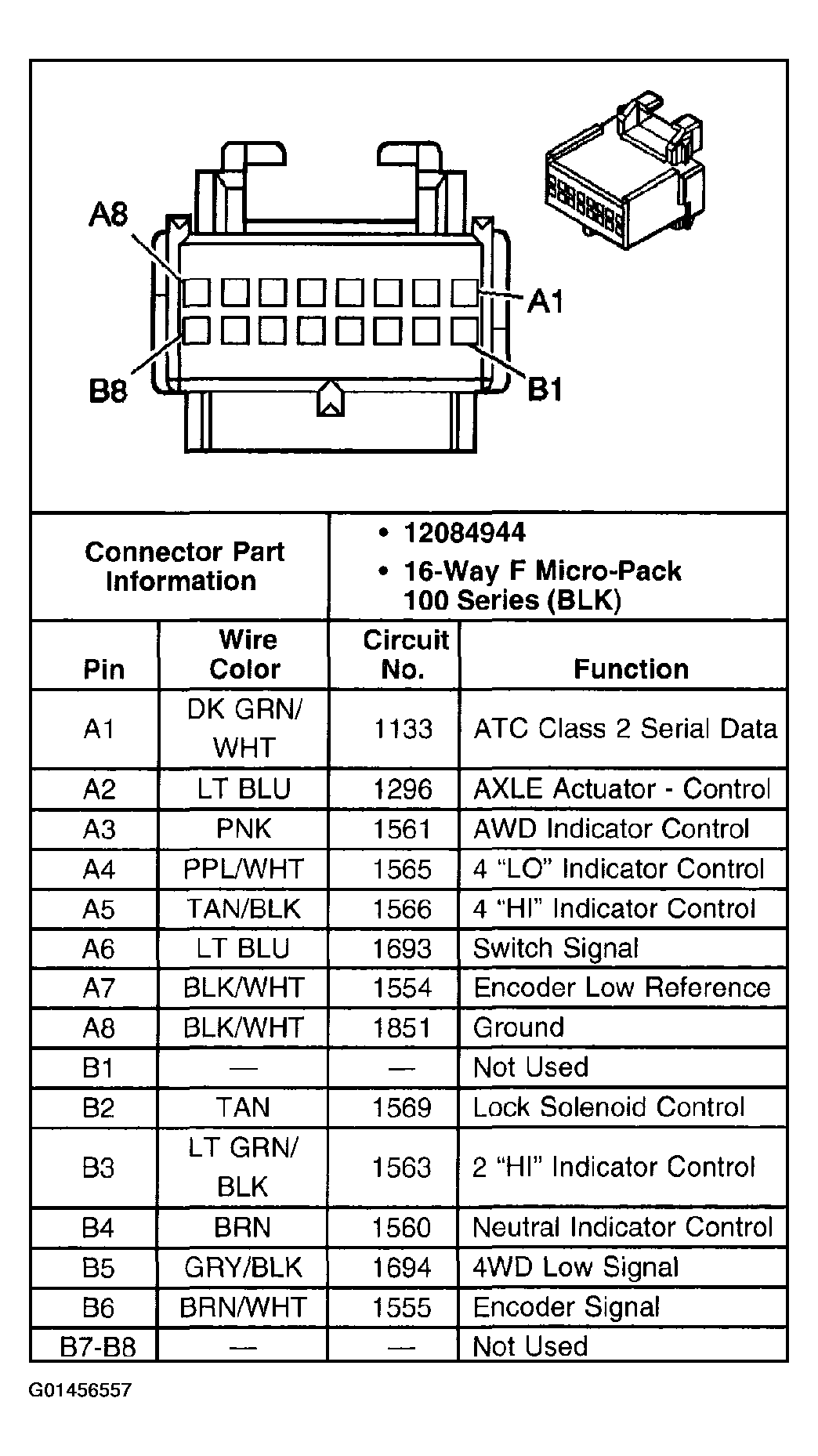

Fig 4: Identifying Transfer Case Shift Control Module - C1 Pin Terminals

G01456557

Courtesy of GENERAL MOTORS CORP.

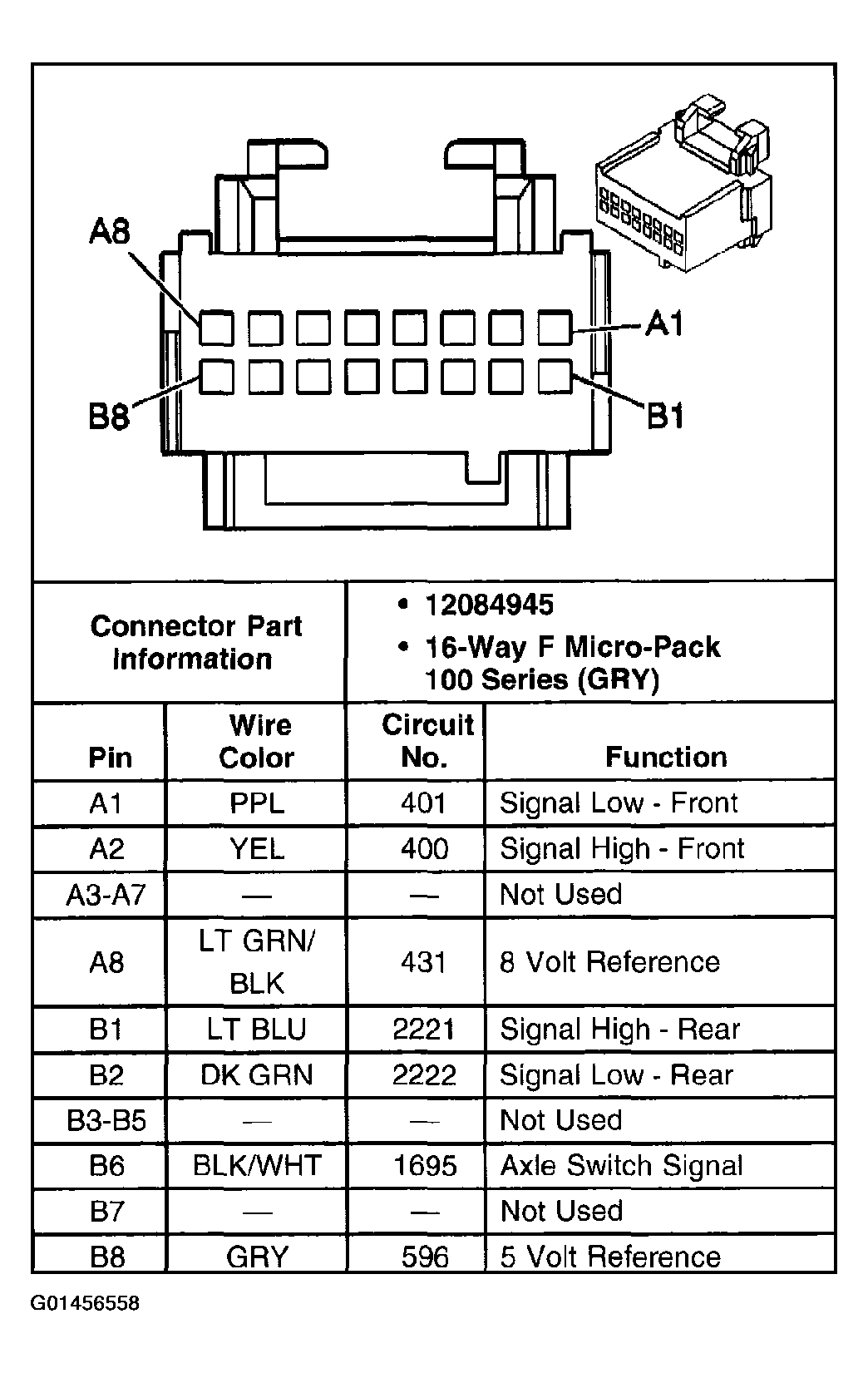

Fig 5: Identifying Transfer Case Shift Control Module - C2 Pin Terminals

G01456558

Courtesy of GENERAL MOTORS CORP.

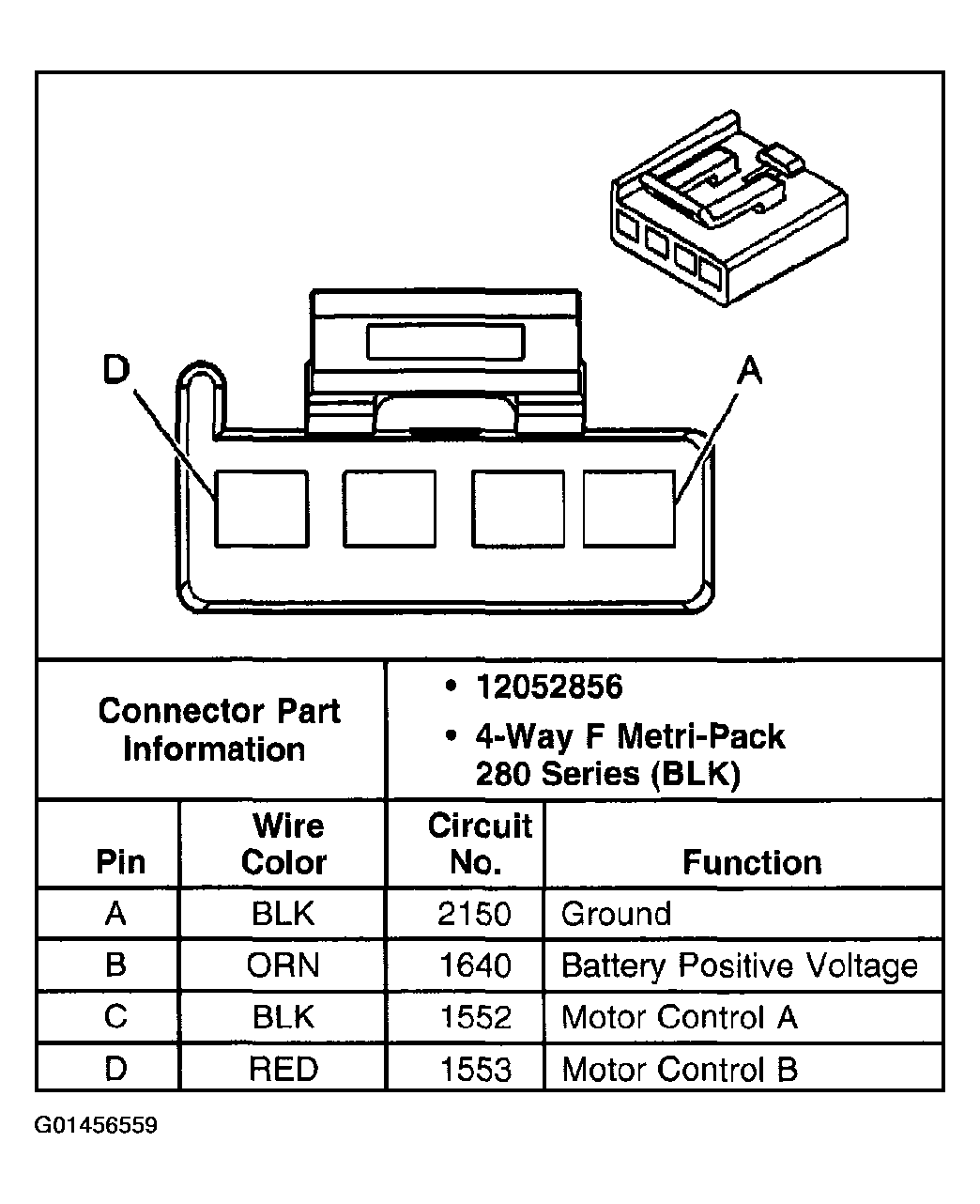

Fig 6: Identifying Transfer Case Shift Control Module - C3 Pin Terminals

G01456559

Courtesy of GENERAL MOTORS CORP.

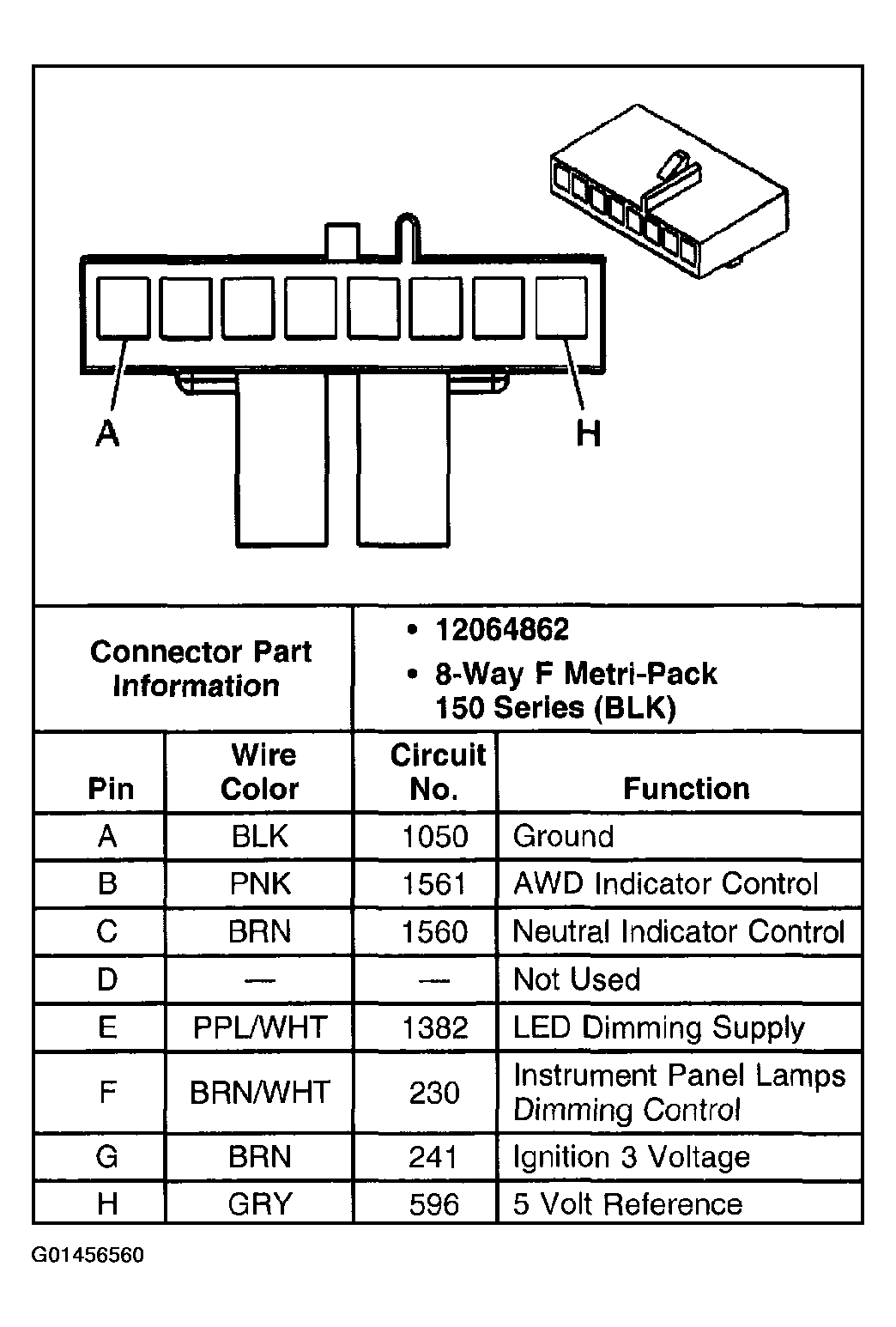

Fig 7: Identifying Transfer Case Shift - C1 Pin Terminals

G01456560

Courtesy of GENERAL MOTORS CORP.

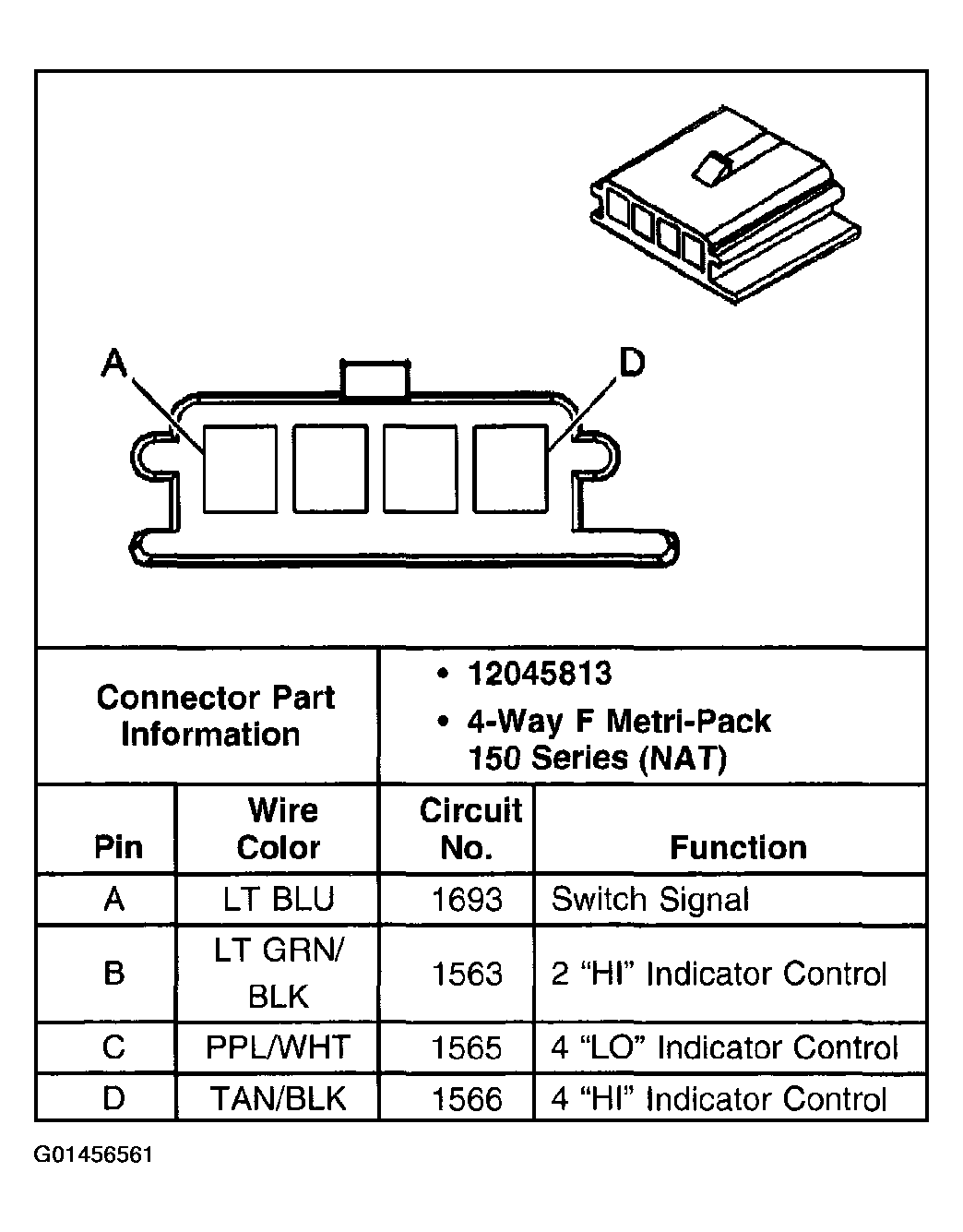

Fig 8: Identifying Transfer Case Shift Control Switch - C2 Pin Terminals

G01456561

Courtesy of GENERAL MOTORS CORP.

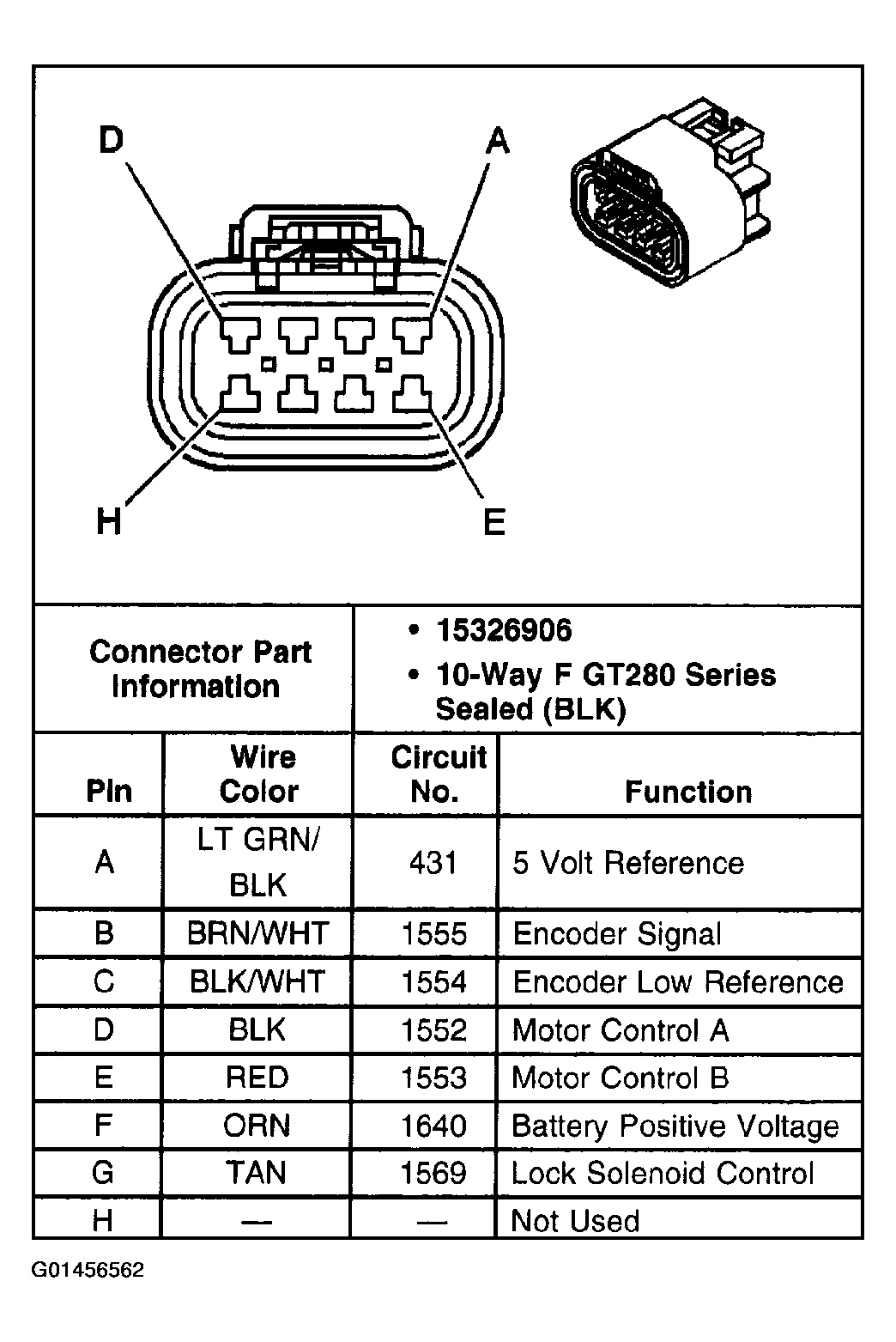

Fig 9: Identifying Transfer Case - Encoder Motor Pin Terminals

G01456562

Courtesy of GENERAL MOTORS CORP.
