Transfer Case Control Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

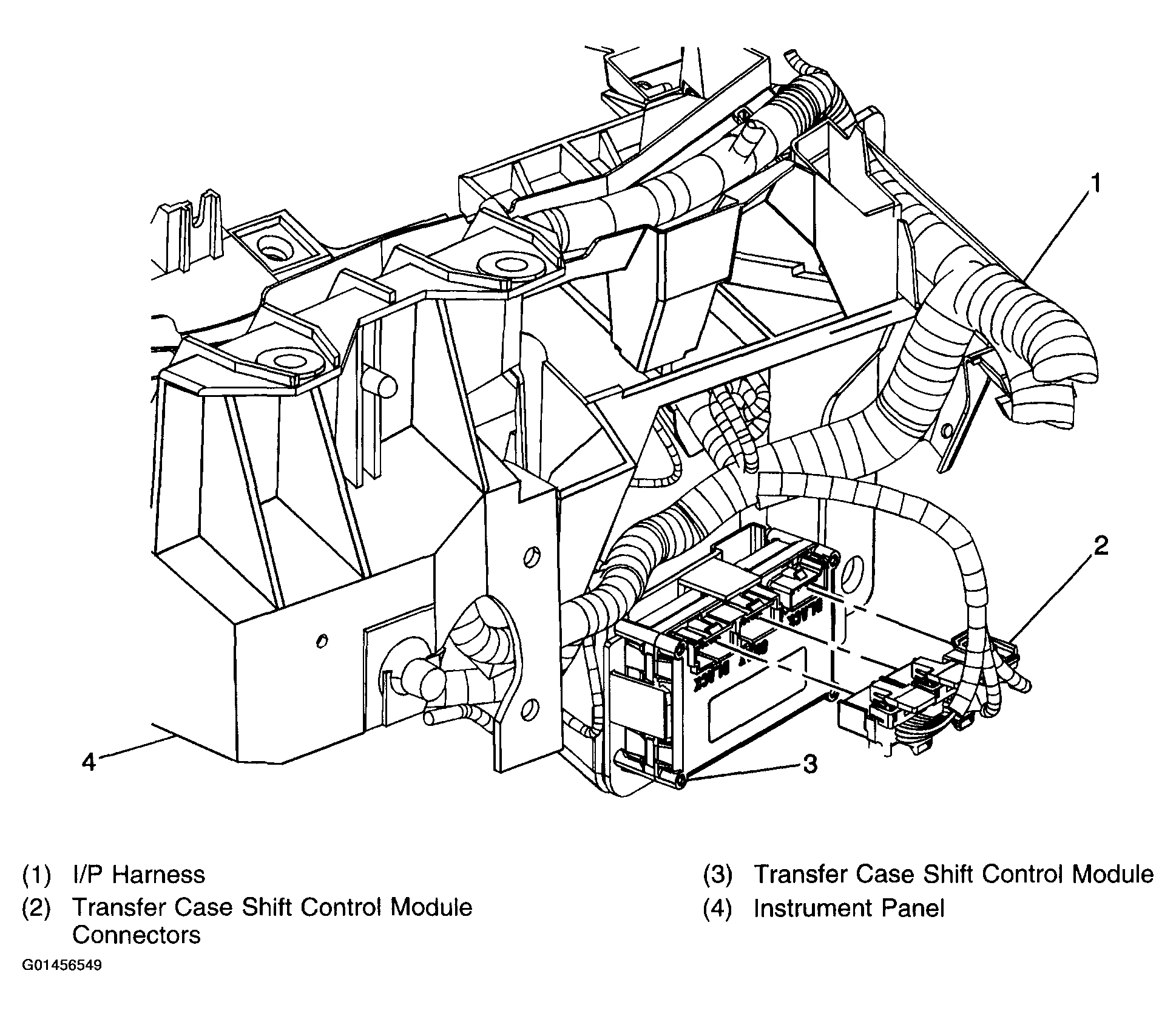

Fig 1: Transfer Case Control Component Views - Transfer Case Shift Control Module

Courtesy of GENERAL MOTORS CORP.

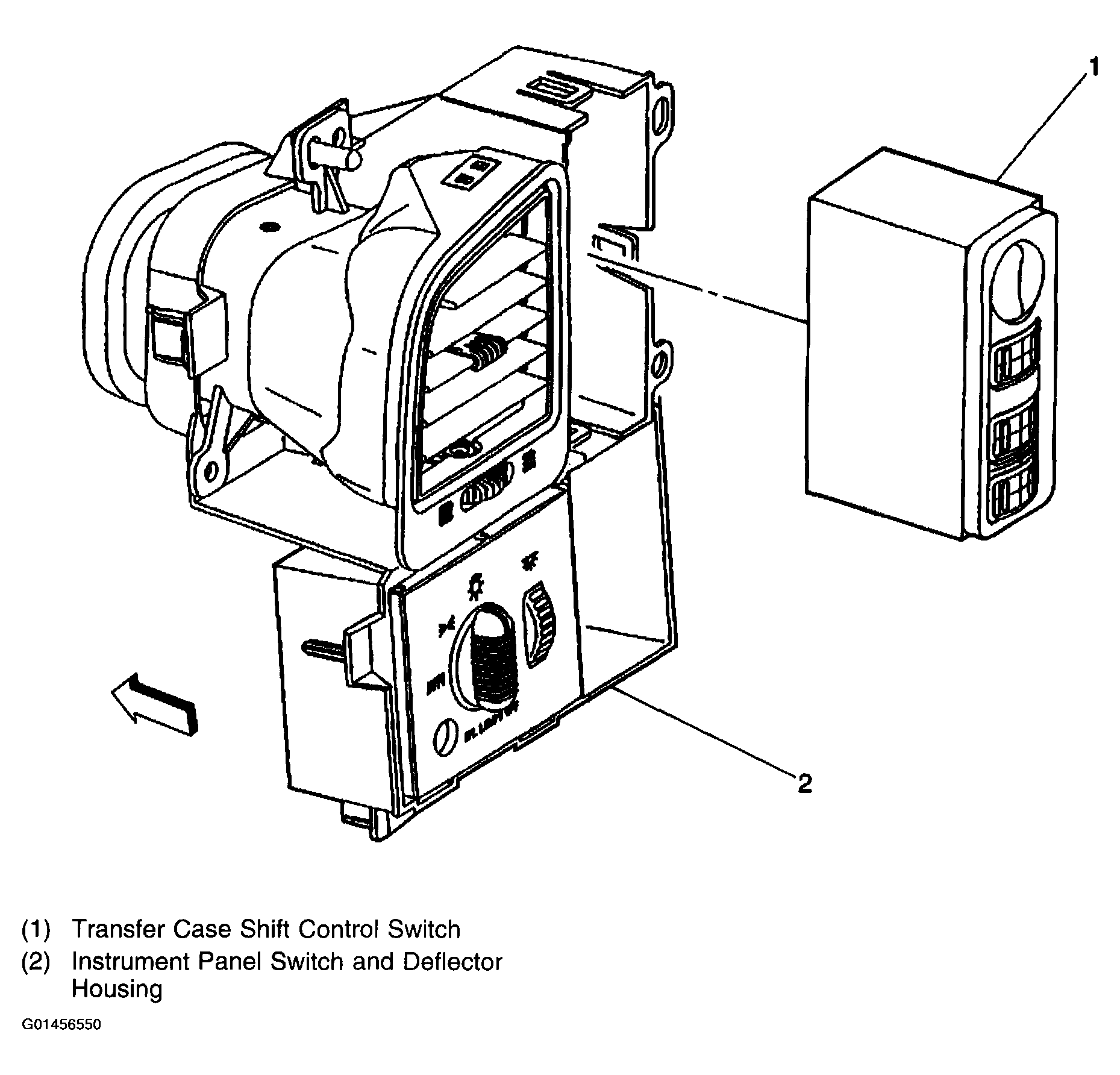

Fig 2: Transfer Case Control Component Views - Transfer Case Shift Control Switch

Courtesy of GENERAL MOTORS CORP.

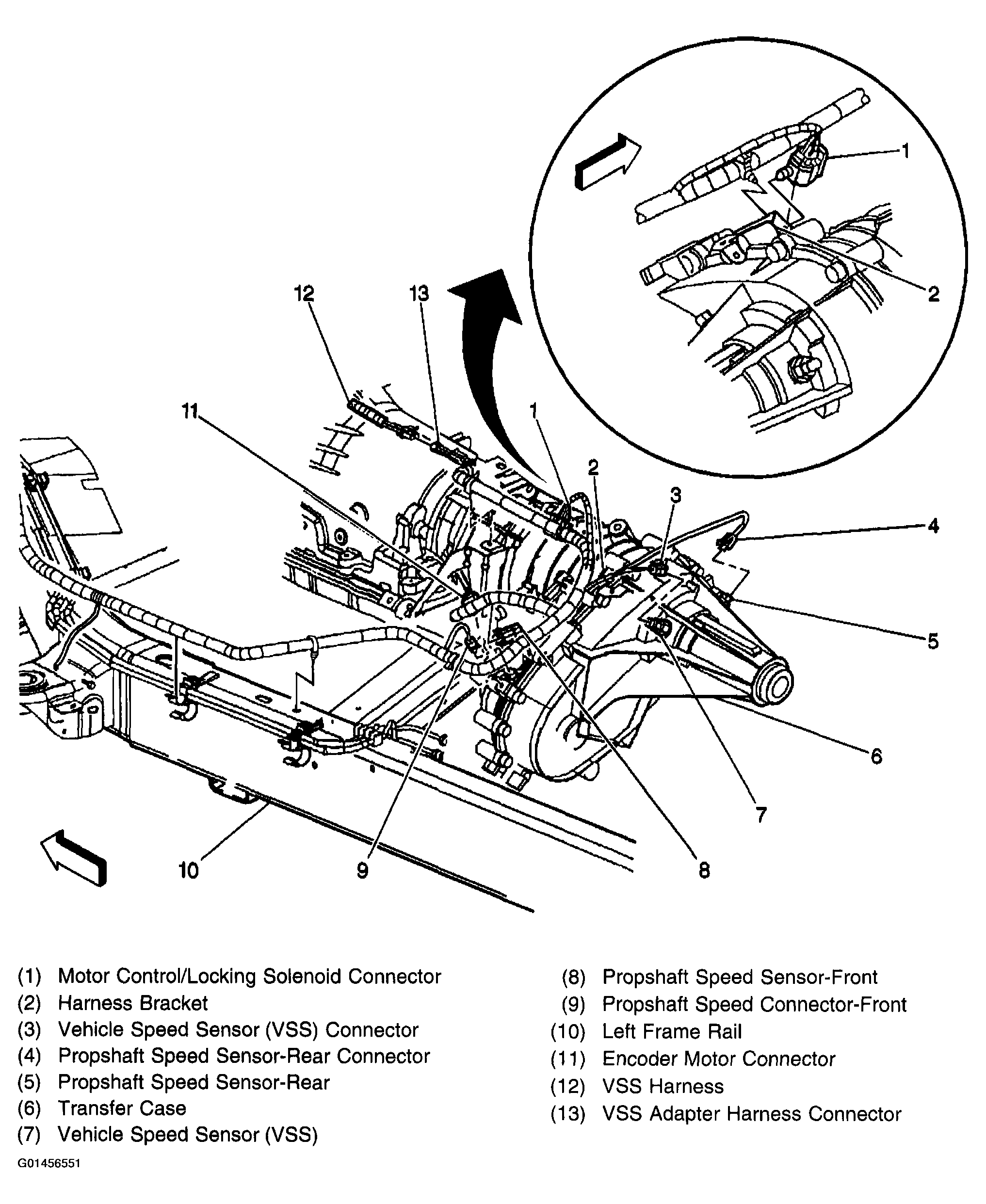

Fig 3: Transfer Case Control Component Views - Transfer Case (NVG 236/246 NP8)

Courtesy of GENERAL MOTORS CORP.

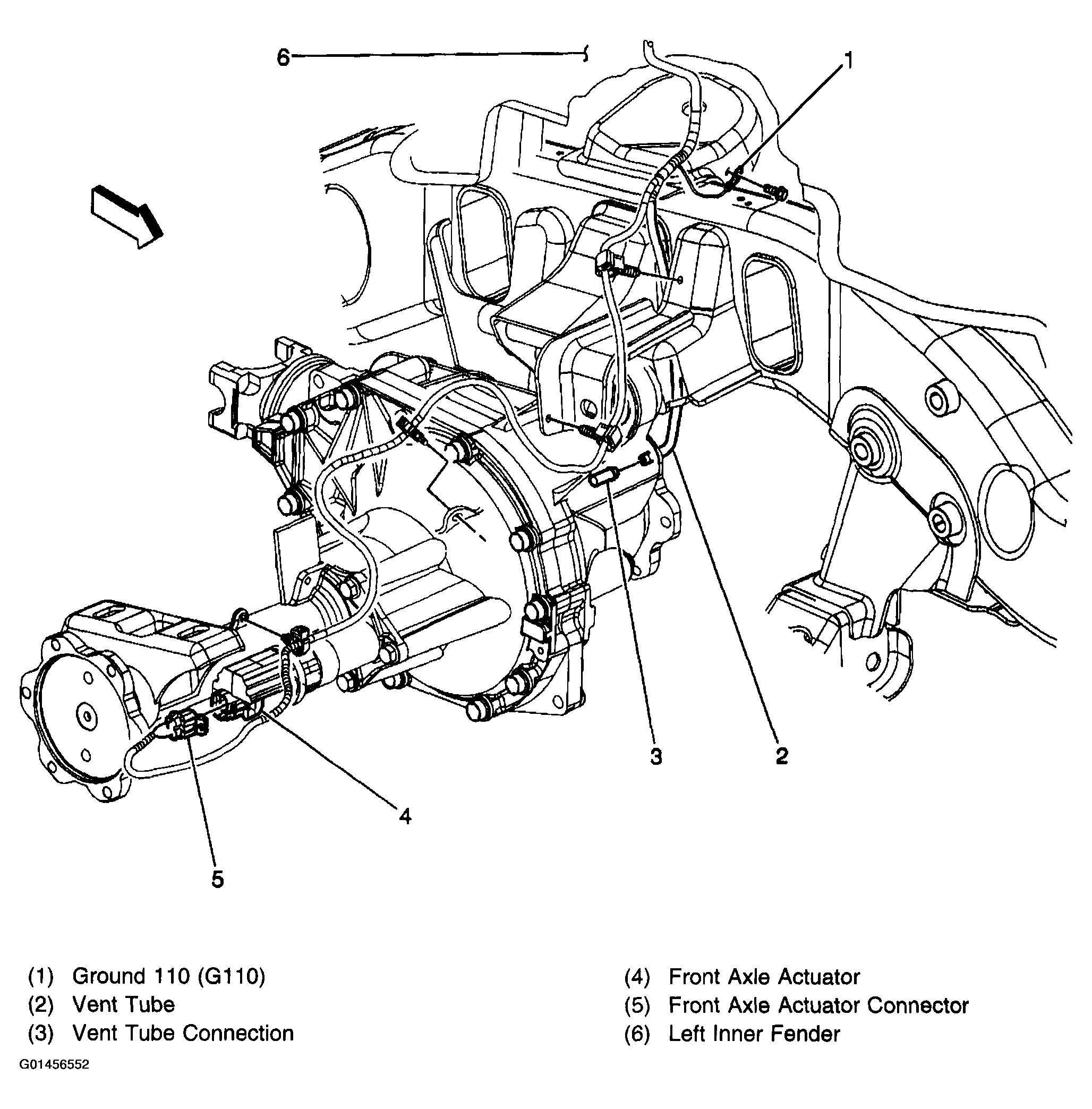

Fig 4: Transfer Case Control Component Views - Front Drive Axle Harness Routing (K25 Series)

Courtesy of GENERAL MOTORS CORP.

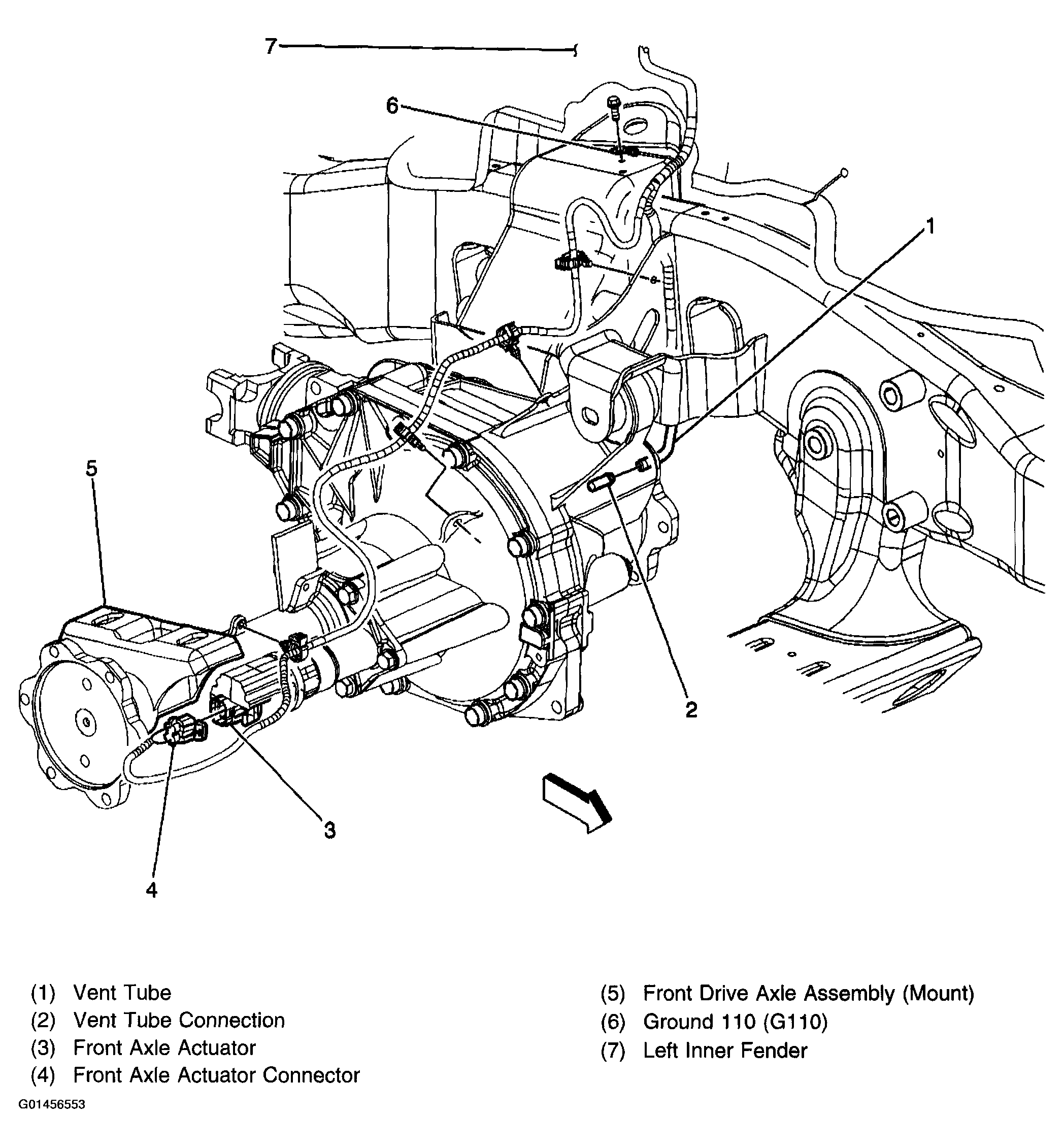

Fig 5: Transfer Case Control Component Views - Front Drive Axle Harness Routing (K15 Series)

Courtesy of GENERAL MOTORS CORP.
