Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the engine protection shield, if equipped.
  3. Remove the outer tie rod end. Refer to TIE ROD REPLACEMENT  .
  4. Remove the inner tie rod end using the J 34028  (2).

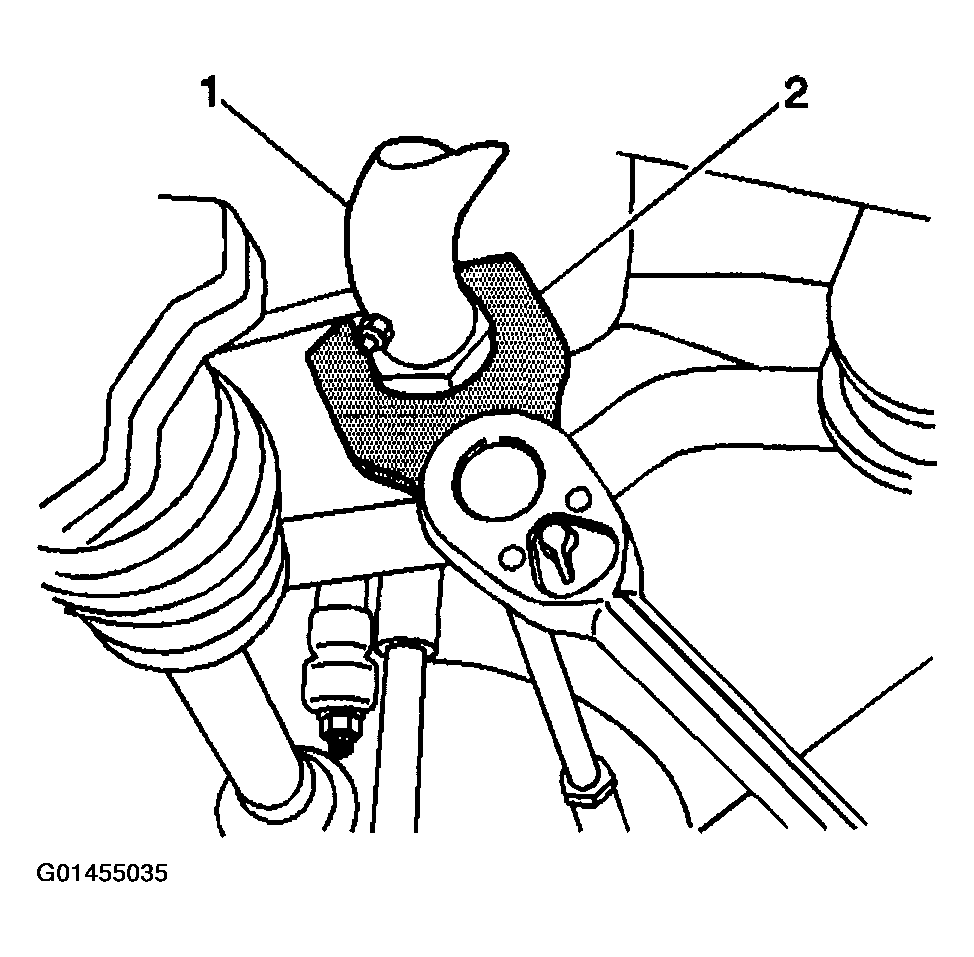

    Fig 1: Removing Inner Tie Rod
    G01455035Courtesy of GENERAL MOTORS CORP.
