Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important: Perform the following procedure before installing the new tie rod ends:

Remove all traces of the oil, grease, or other contaminants.
Clean the threads of the tie rod with denatured alcohol or the equivalent and allow to dry.
Apply red LOCTITE Threadlocker, GM P/N 12345493 (Canadian P/N 10953488) to the threads of the inner tie rod.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the inner tie rod to the relay rod.
Tighten

Using the J 34028 (2) tighten the tie rod to 100 N.m (74 lb ft).

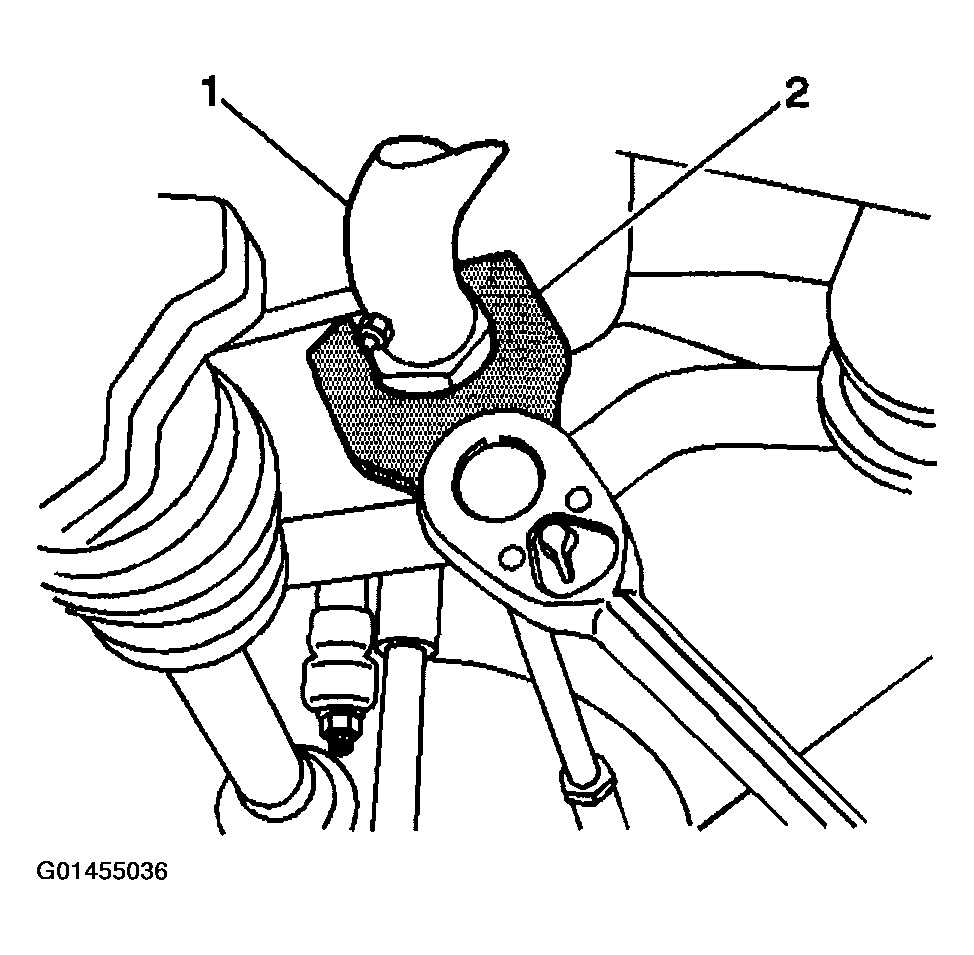

Fig 1: Installing Inner Tie Rod
Courtesy of GENERAL MOTORS CORP.
Install the outer tie rod end. Refer to TIE ROD REPLACEMENT .
Install the engine protection shield, if equipped. Refer to Engine Protection Shield Replacement in Frame and Underbody.
Lower the vehicle.
Verify the wheel alignment. Refer to WHEEL ALIGNMENT SPECIFICATIONS in Wheel Alignment.
