Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pitman arm to the power steering gear.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install a new pitman arm washer and nut.

    Tighten

    Tighten the nut to 250 N.m (184 lb ft).

  3. Remove the power steering gear from the vise.
  4. Install the power steering gear. Refer to POWER STEERING GEAR REPLACEMENT in Power Steering System.
  5. Lower the vehicle.
  6. Check the wheel alignment. Refer to MEASURING WHEEL ALIGNMENT (WITH REAR WHEEL STEERING) or MEASURING WHEEL ALIGNMENT (WITHOUT REAR WHEEL STEERING) in Wheel Alignment.

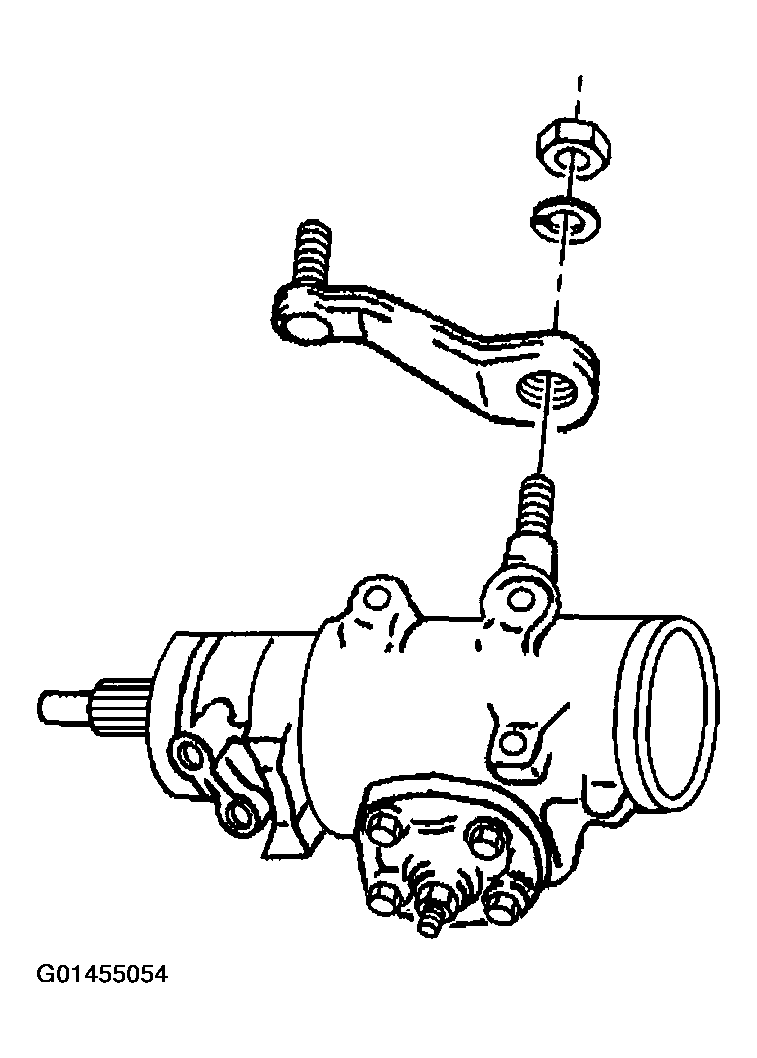

    Fig 1: Installing Pitman Arm Nut & Washer
    G01455054Courtesy of GENERAL MOTORS CORP.
