Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not attempt to free the ball stud by using a pickle fork or wedge type tool, because seal or bushing damage could result. Use the proper tool to separate all ball joints.

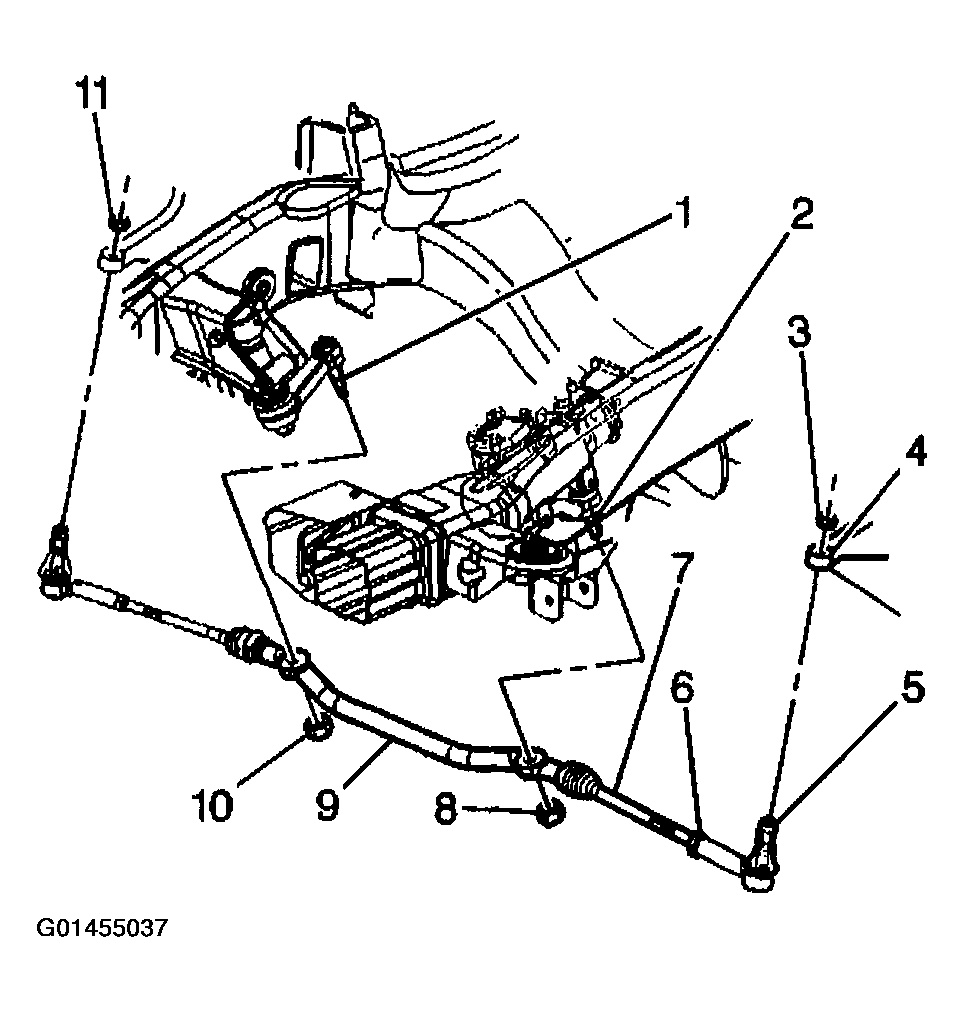

Fig 1: Removing Relay Rod From Idler Arm Ball Stud
G01455037Courtesy of GENERAL MOTORS CORP.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the engine protection shield, if equipped.
  3. Remove the idler arm ball stud nut (10). Do not reuse the idler arm ball stud nut.
  4. Remove the idler arm from the relay rod using the J24319-B

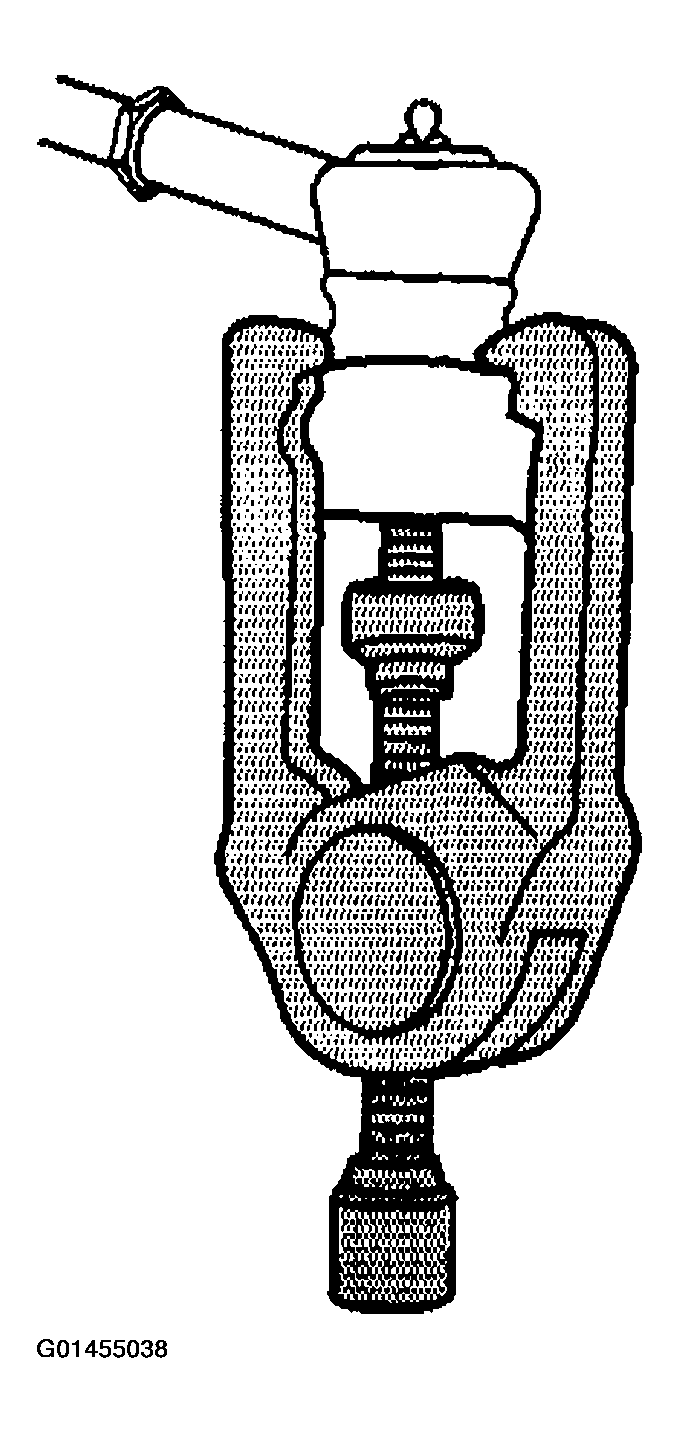

    Fig 2: Removing Idler Arm From Relay Rod Using J 24319-B
    G01455038Courtesy of GENERAL MOTORS CORP.
  5. Remove the idler arm frame bolts (3) and the nuts (1).
  6. Remove the idler arm (2) from the vehicle.

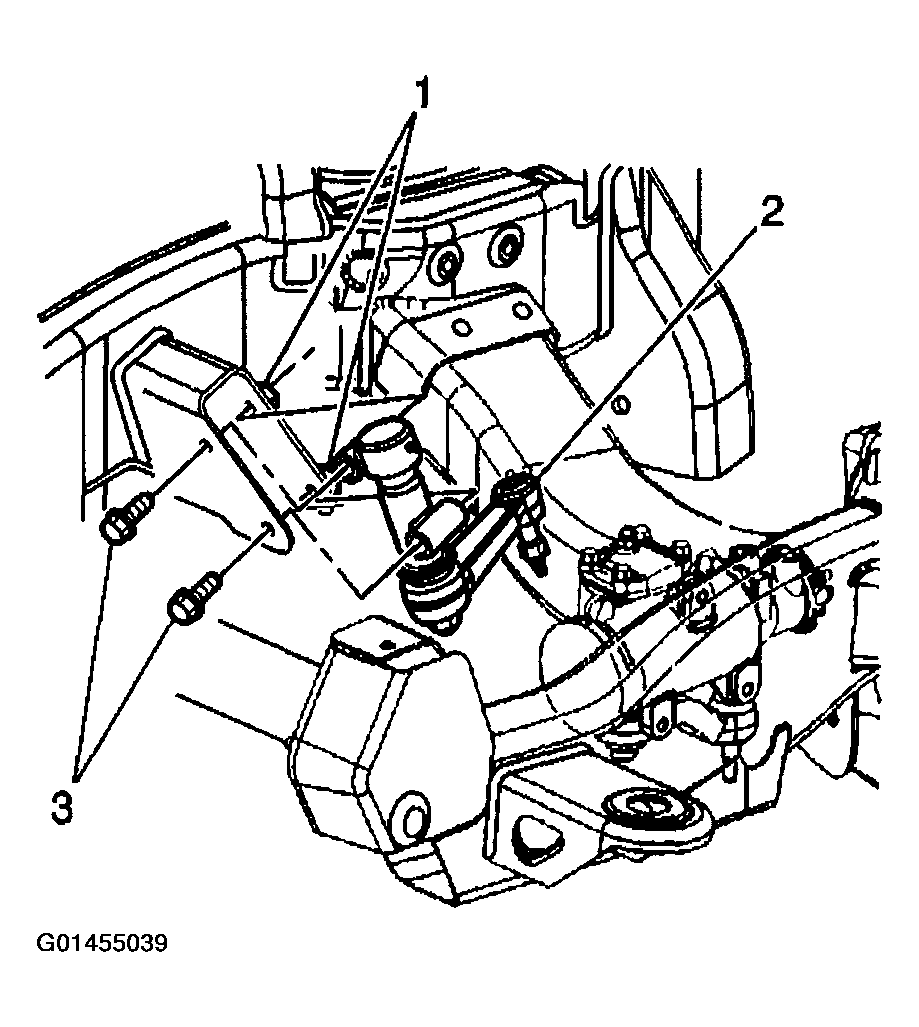

    Fig 3: Removing Idler Arm Frame, Bolts & Nuts
    G01455039Courtesy of GENERAL MOTORS CORP.
