Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the supplemental inflatable restraint (SIR) system. Refer to ZONE 3 in SIR.
  2. Remove the inflator module. Refer to HORN SWITCH REPLACEMENT  in SIR.
  3. Remove the horn switch. Refer to HORN SWITCH REPLACEMENT  .
  4. Make an alignment mark in order to note the relationship of the steering wheel to the steering shaft.
  5. Remove the steering wheel nut.
  6. Remove the steering wheel, using J 1859-A  .

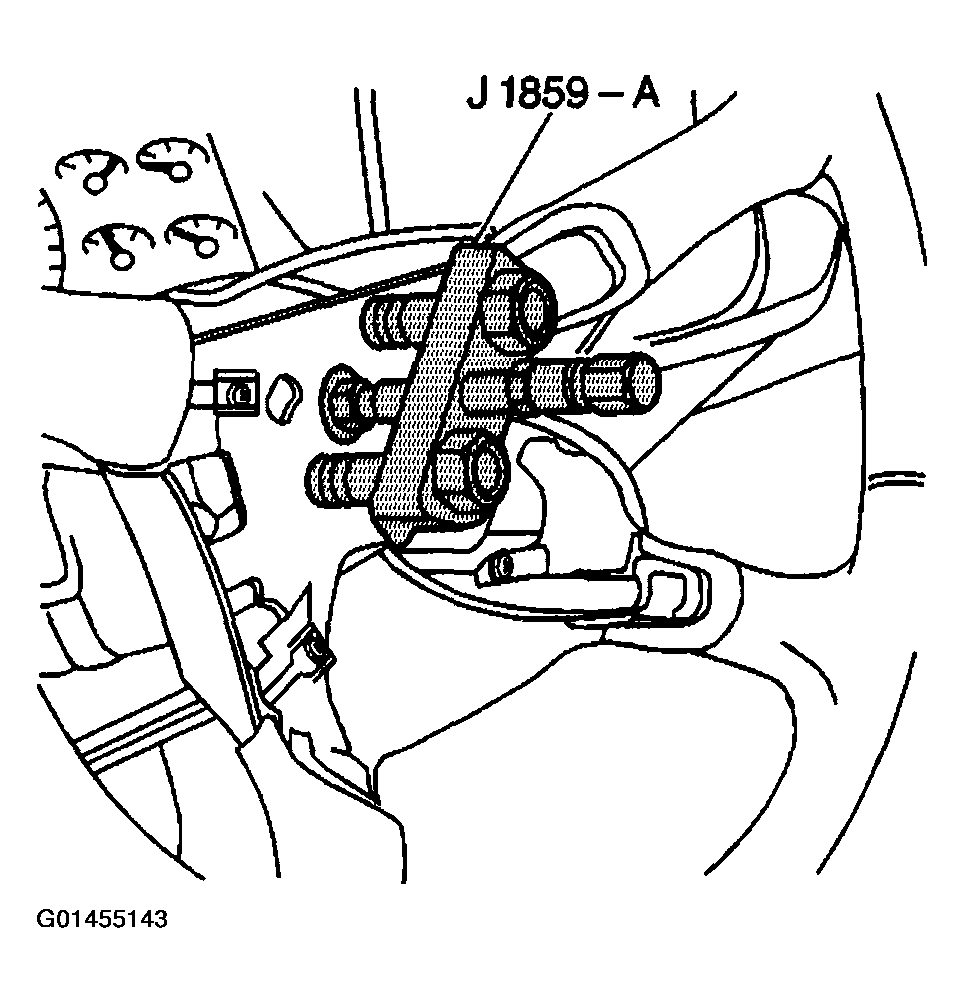

    Fig 1: Removing Steering Wheel Using J 1859-A
    G01455143Courtesy of GENERAL MOTORS CORP.
