Removal Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Refer to SIR CAUTION
in Cautions and Notices.
- Disable the SIR system. Refer to ZONE 3
in SIR.
Important: A new sensor must come with a pin installed. If pin is not installed, return and reorder sensor.
- The steering wheel must be in the straight position.
- Remove the steering column from the vehicle. Refer to STEERING COLUMN REPLACEMENT .
- Set the steering wheel in the LOCKED position.
- If necessary to lock the column, install the anti rotation pin into the steering column.
- Remove the nut and the bolt from the upper intermediate shaft connection and slide the intermediate steering shaft down.
Important: Do not apply force to the sensor and the bearing assembly in a sideways direction.
- Remove the sensor connector by using a suitable tool in order to pull the connector down around the right side of the steering column for accessibility.

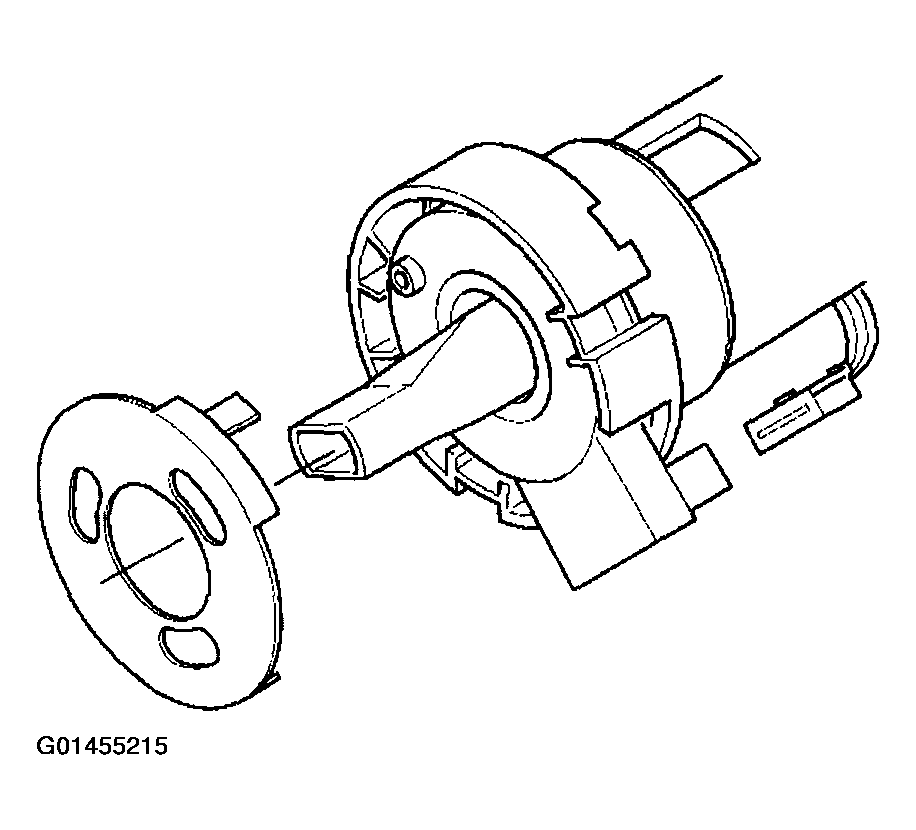

- Remove the sensor retainer from the steering shaft.

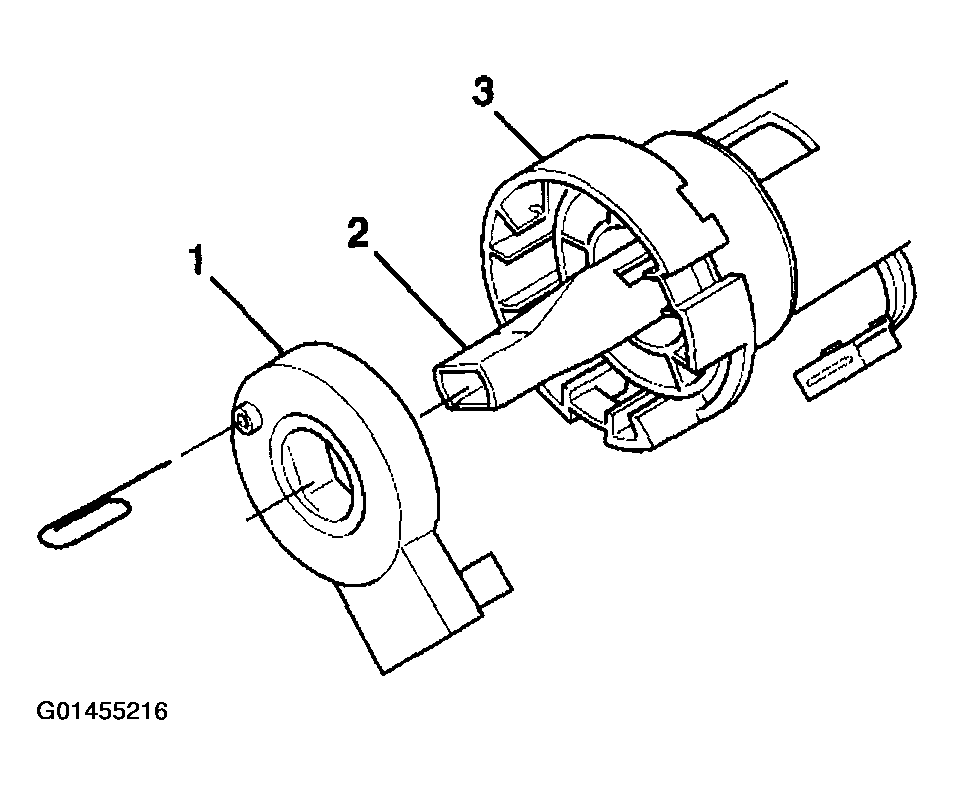

Important: When reusing the sensor (1) you must install a pin into the sensor before it is removed from the steering shaft. By not installing a pin into the sensor it will cause the sensor to lose its centering position and must be discarded.
Pin diameter must be in the range of 1.0-2.0 mm.
Do not remove the bearing adapter (3).
- If reusing the sensor (1), remove the position sensor by pulling the sensor straight out from the bearing adapter (3) until the sensor is almost off the steering shaft (2). Install a pin into the sensor before removing from the steering shaft (2). Do not remove the pin until the sensor is re-installed.
- If replacing the sensor (1), remove the sensor by pulling the sensor straight out from the bearing adapter (3) and off the steering shaft.
Courtesy of GENERAL MOTORS CORP.
