Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering wheel. Refer to STEERING WHEEL REPLACEMENT  .
  2. Remove the shroud retaining screws from the back of the steering wheel.
  3. Remove the shroud from the steering wheel.

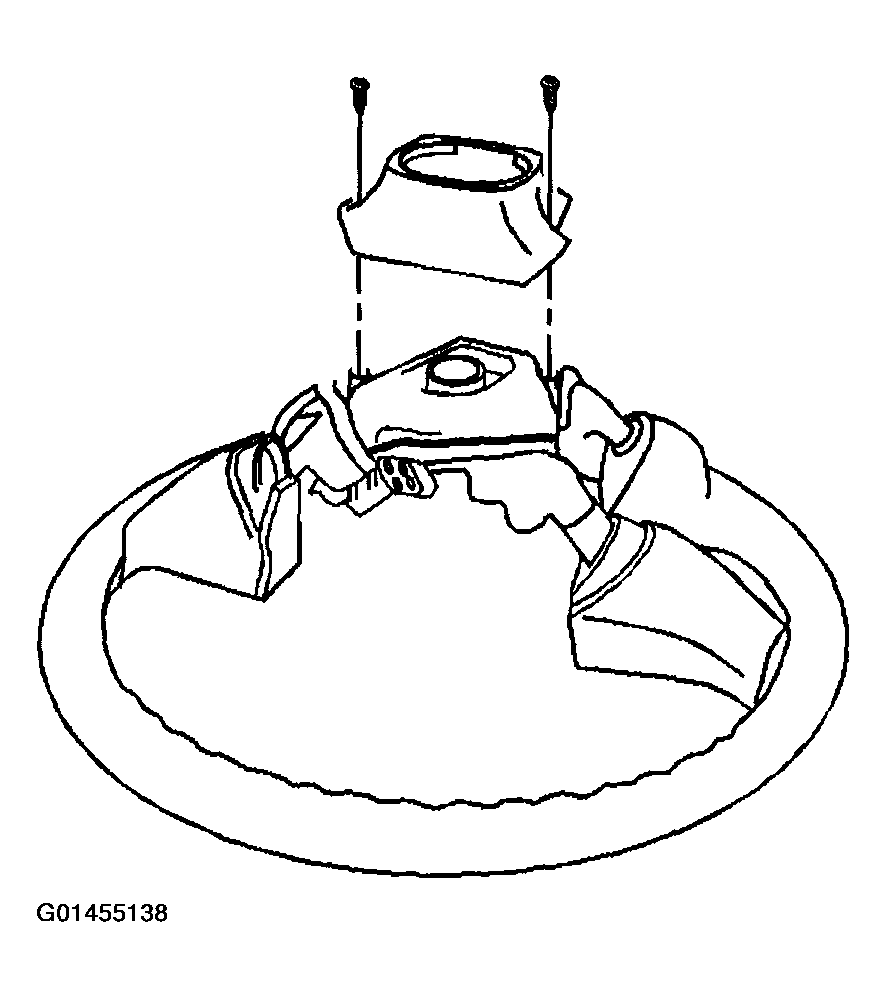

    Fig 1: Removing Shroud Retaining Screws From Back Of Steering Wheel
    G01455138Courtesy of GENERAL MOTORS CORP.
  4. Position a blunt ended tool into the wire harness cavity (1) and apply moderate pressure in order to partially remove the steering wheel control switch from the steering wheel.

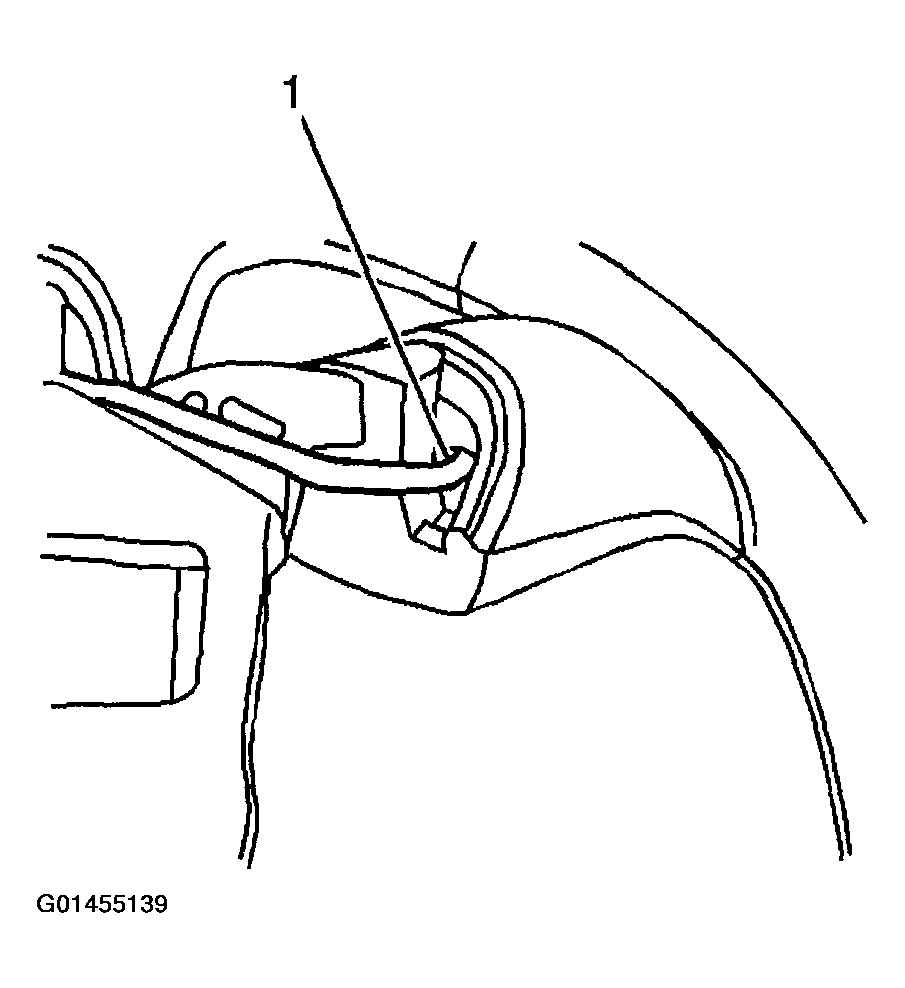

    Fig 2: Identifying Wiring Harness
    G01455139Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the steering wheel control switch electrical connector.

    Important:  The bulbs in the steering wheel control switches are not serviceable. The switches should be replaced only as an assembly.

  6. Remove the steering wheel control switch from the steering wheel.

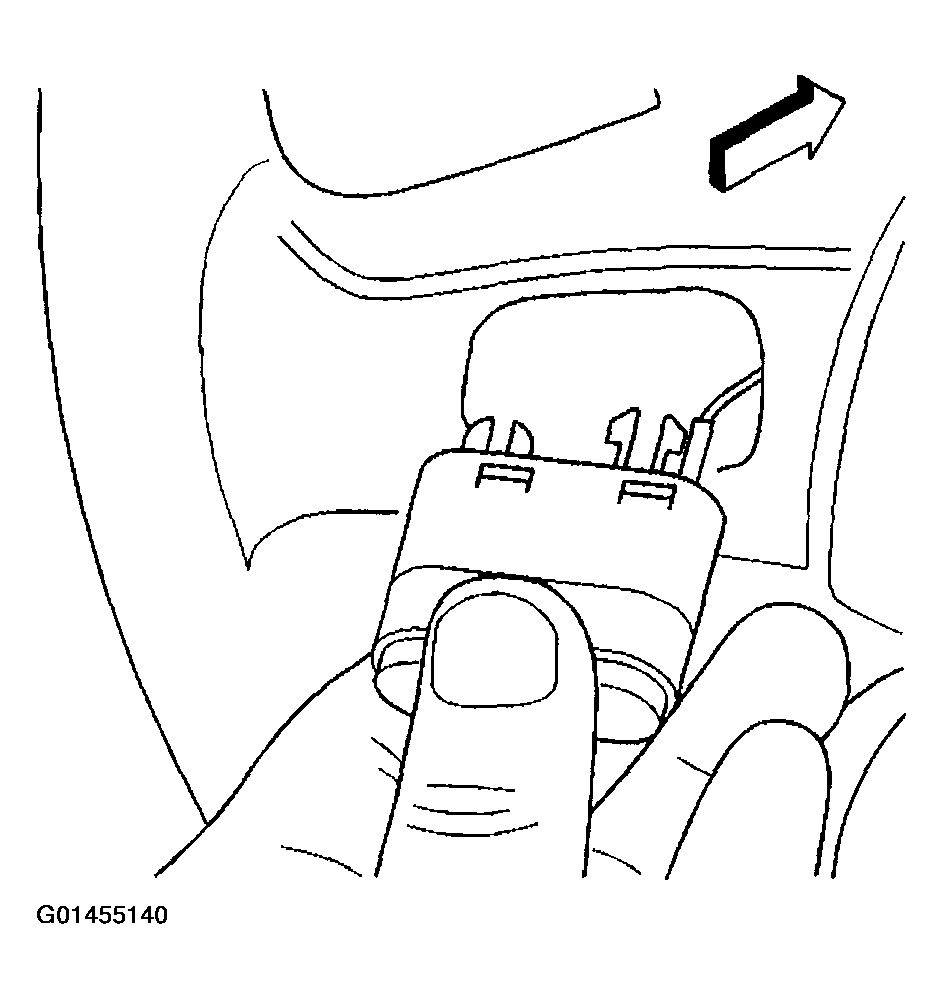

    Fig 3: Disconnecting Steering Wheel Control Switch Electrical Connector.
    G01455140Courtesy of GENERAL MOTORS CORP.
