Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR CAUTION in Cautions and Notices.
  1. Disable the SIR system. Refer to ZONE 3 in SIR.
  2. Remove the turn signal cancel cam assembly. Refer to TURN SIGNAL CANCEL CAM AND UPPER BEARING THRUST WASHER  .
  3. Remove the turn signal and multifunction switch assembly only. Refer to MULTIFUNCTION, TURN SIGNAL SWITCH REPLACEMENT  .
  4. Slide the turn signal switch housing off of the steering column shaft assembly.
  5. Remove the tilt head housing and steering shaft as an assembly. Refer to LOWER BEARING AND STEERING COLUMN JACKET REPLACEMENT (COLUMN SHIFT LEAN SHAFT)  or LOWER BEARING AND STEERING COLUMN JACKET REPLACEMENT (FLOOR SHIFT LEAN SHAFT)  or LOWER BEARING AND STEERING COLUMN JACKET REPLACEMENT (COLUMN SHIFT STANDARD)  or LOWER BEARING AND STEERING COLUMN JACKET REPLACEMENT (FLOOR SHIFT STANDARD)  .
  6. Remove the tilt head from the steering shaft.

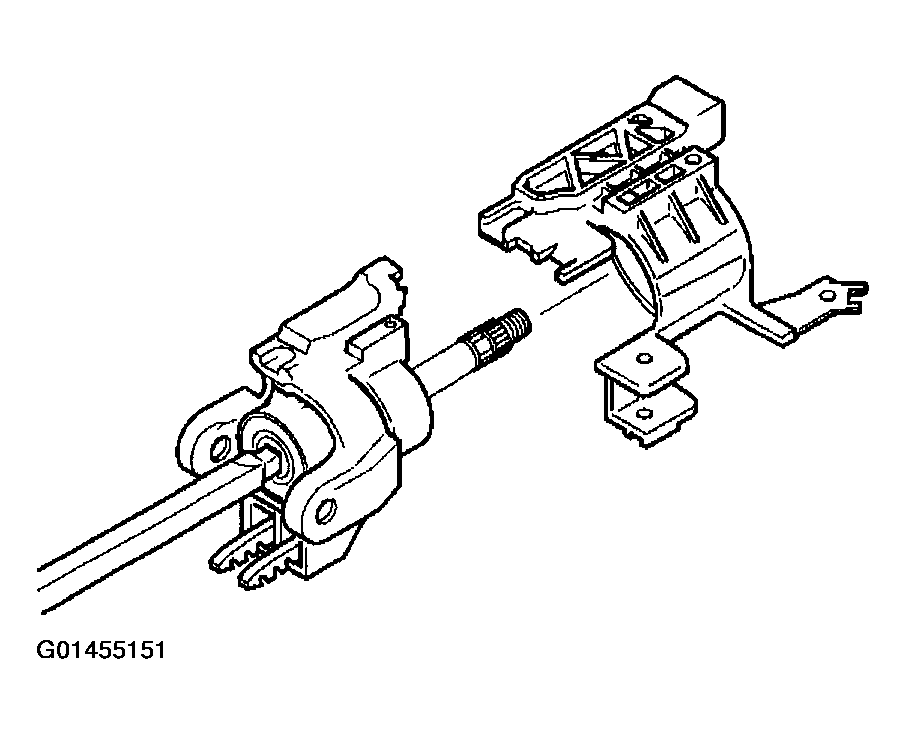

    Fig 1: Removing Turn Signal & Multifunction Switch Assembly (Tilt)
    G01455151Courtesy of GENERAL MOTORS CORP.
