Installation Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

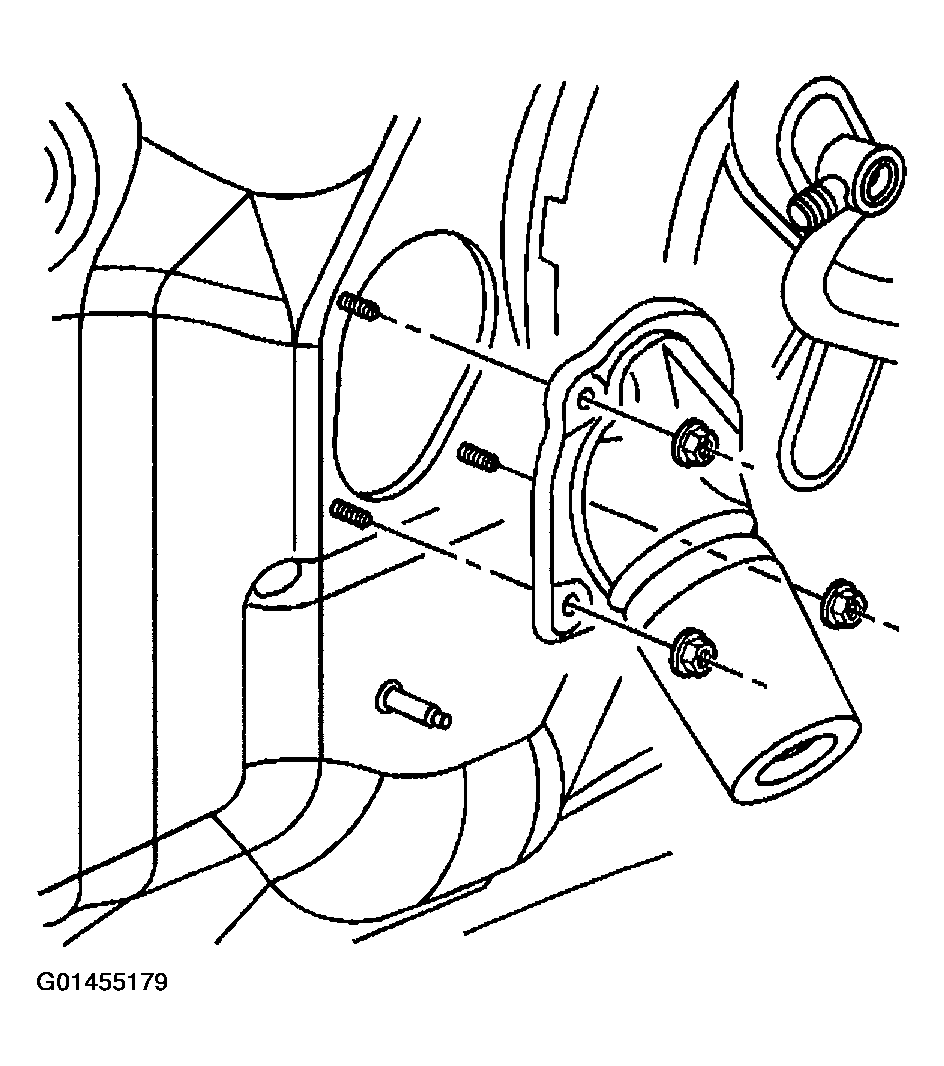

- Install the seal to the vehicle.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the nuts to the studs.
Tighten
Tighten the nuts to 3 N.m (25 lb in).
- Install the intermediate shaft. Refer to INTERMEDIATE STEERING SHAFT REPLACEMENT - LOWER .
