Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Install the shift lever (1).
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the TORX® head screw (2).
Tighten

Tighten the screw to 1.5 N.m (13 lb in).
Roll the seal over the TORX® head screw (2).

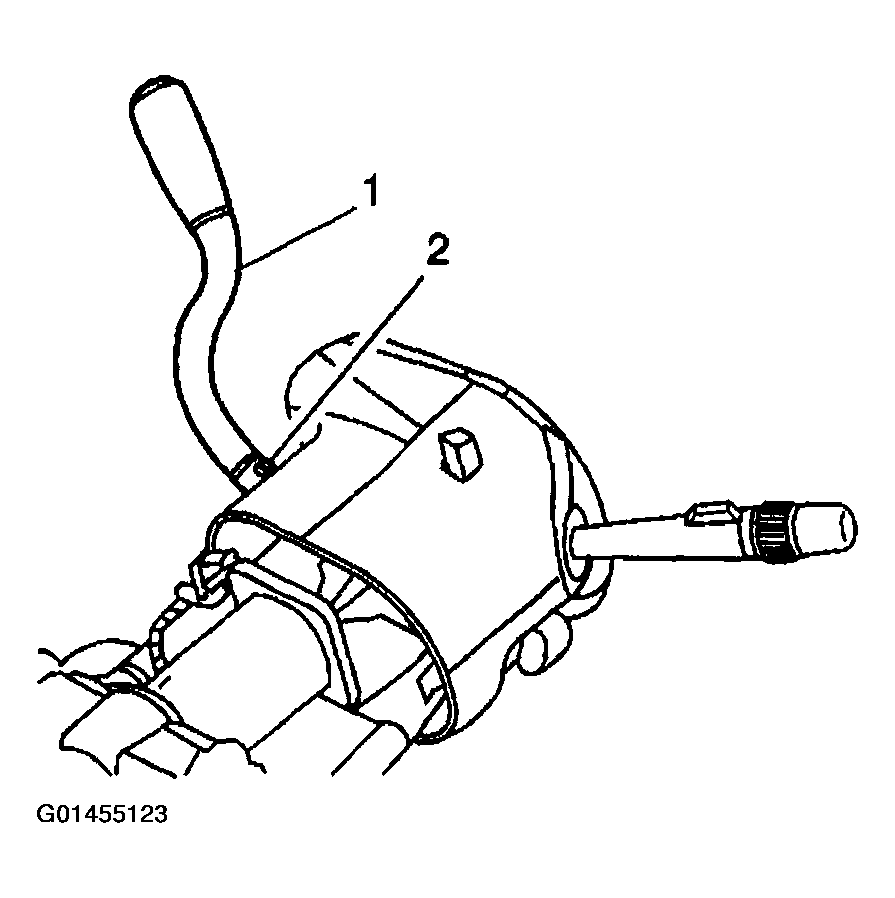

Fig 1: Shift Lever & TORX® Head Screw (Without Tow/Haul Switch)
Courtesy of GENERAL MOTORS CORP.
