Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the shift lever (1).

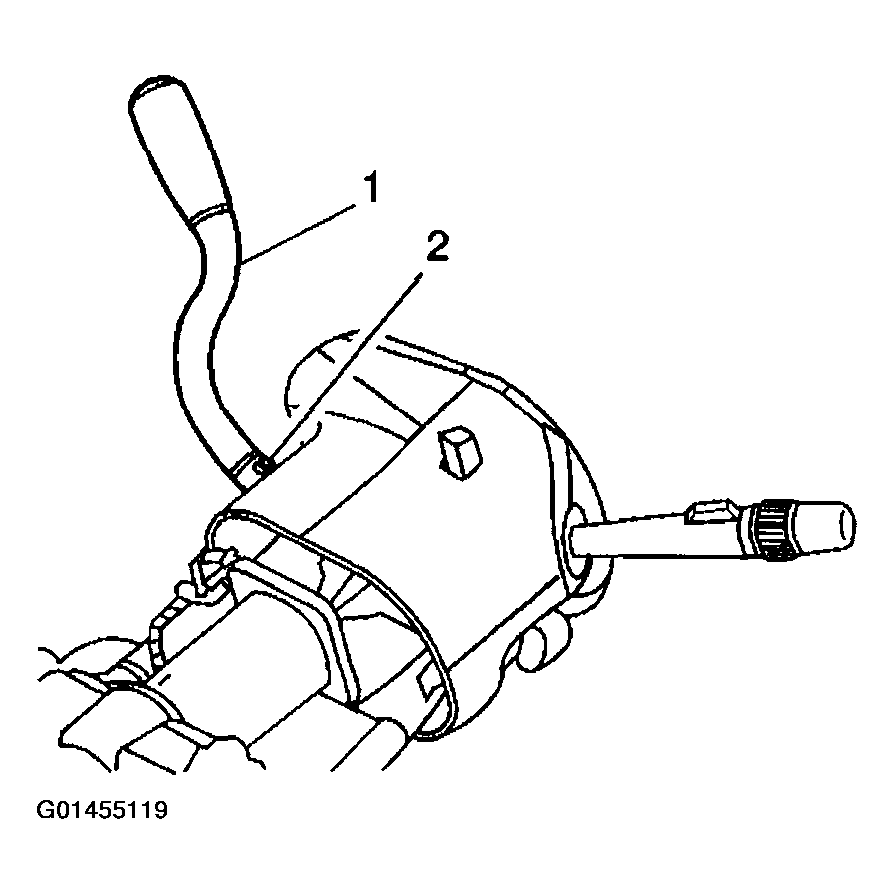

    Fig 1: Shift Lever & TORX® Head Screw (With Tow/Haul Switch)
    G01455119Courtesy of GENERAL MOTORS CORP.
  2. Connect the shifter electrical connector.
  3. Install the wire straps to the harness.
  4. Install the harness retaining pin (4) to the instrument panel.

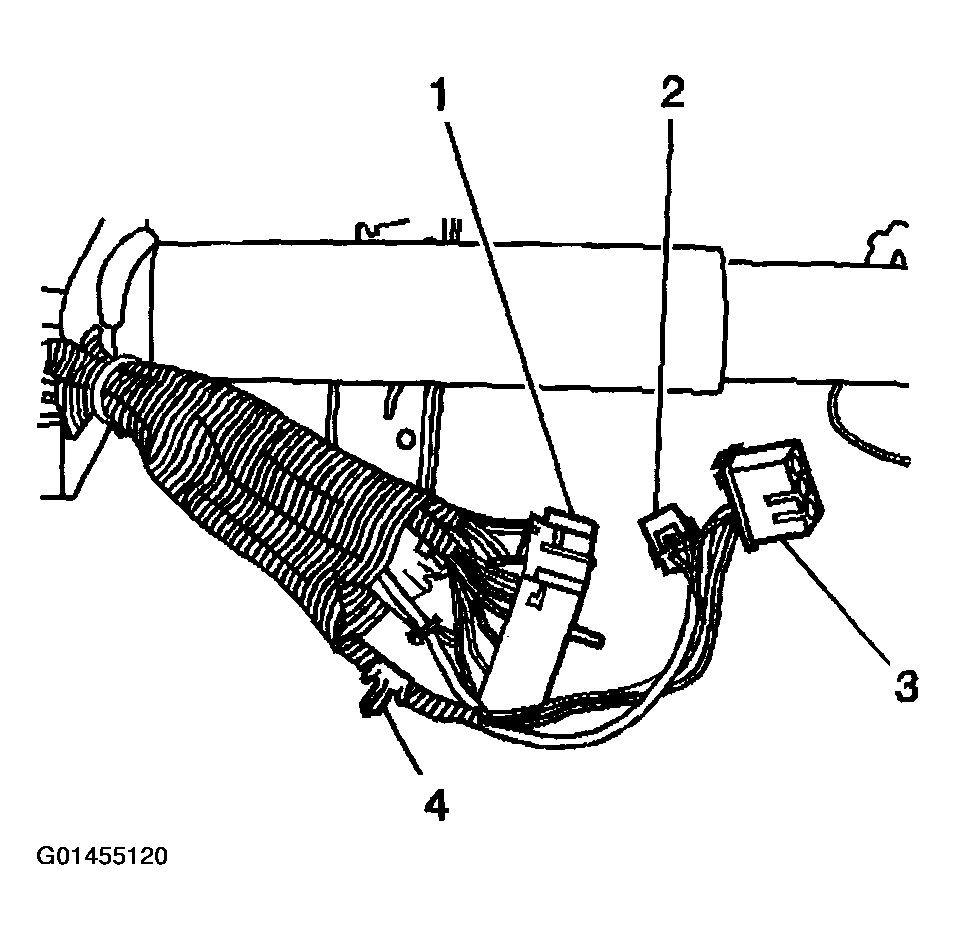

    Fig 2: Connecting Shifter Electrical Connector
    G01455120Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the knee bolster deflector bracket and nuts (1).

    Tighten

    Tighten the nuts to 9 N.m (80 lb in).

  6. Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT in Instrument Panel, Gages and Console.
  7. Install the TORX® head screw.

    Tighten

    Tighten the screw to 1.5 N.m (13 lb in).

  8. Roll the seal over the TORX® head screw.
  9. Install the lower column trim cover.
  10. Install the 2 TORX® head screws to the lower column trim cover.

    Tighten

    Tighten the screw to 3.5 N.m (31 lb in).

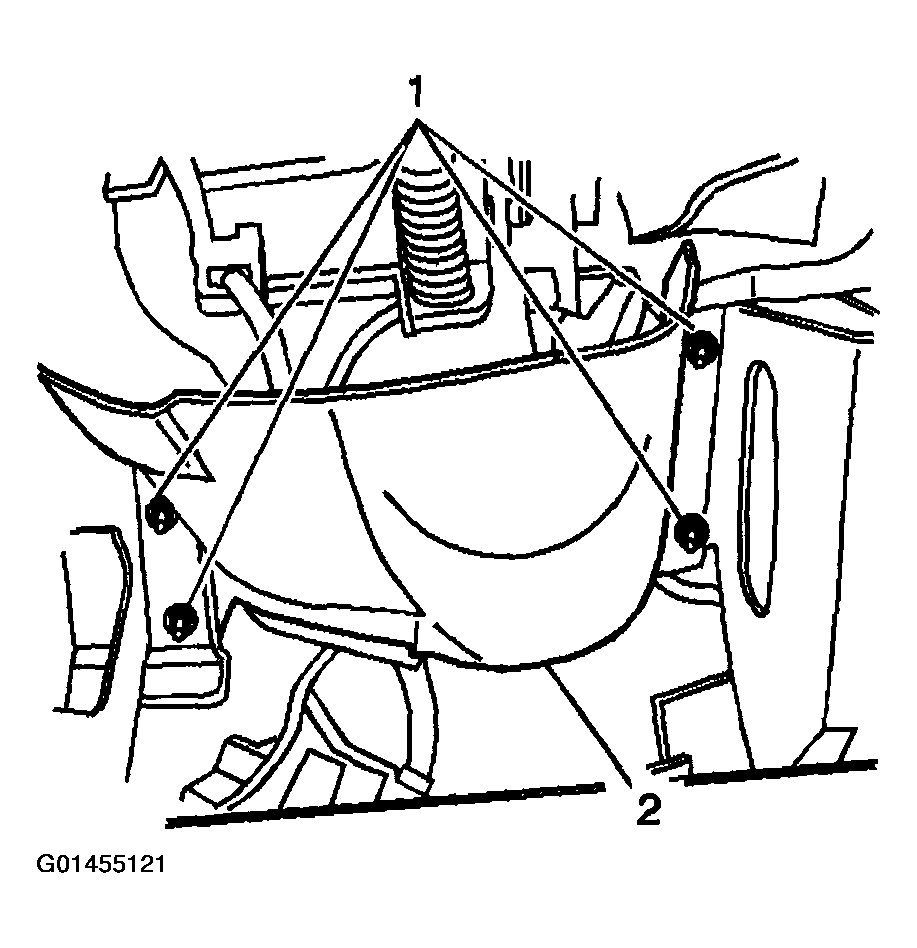

    Fig 3: Installing Nuts To Knee Bolster Deflector Bracket
    G01455121Courtesy of GENERAL MOTORS CORP.
