Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper end of the intermediate shaft into the upper shaft.
  2. Install the lower end of the intermediate shaft coupler.
    1. If you are reinstalling the same shaft, align the marks made during the removal procedure.
    2. Install the lower end of the intermediate shaft coupler onto the steering gear worm shaft.
  3. Install the bolt to the lower shaft coupler.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the bolt to the upper end of the shaft.

    Tighten

    • Tighten the upper bolt to 47 N.m (35 lb ft).
    • Tighten the coupler pinch bolt to 47 N.m (35 lb ft).

  5. Remove the J 42640  from the steering column lower access hole.

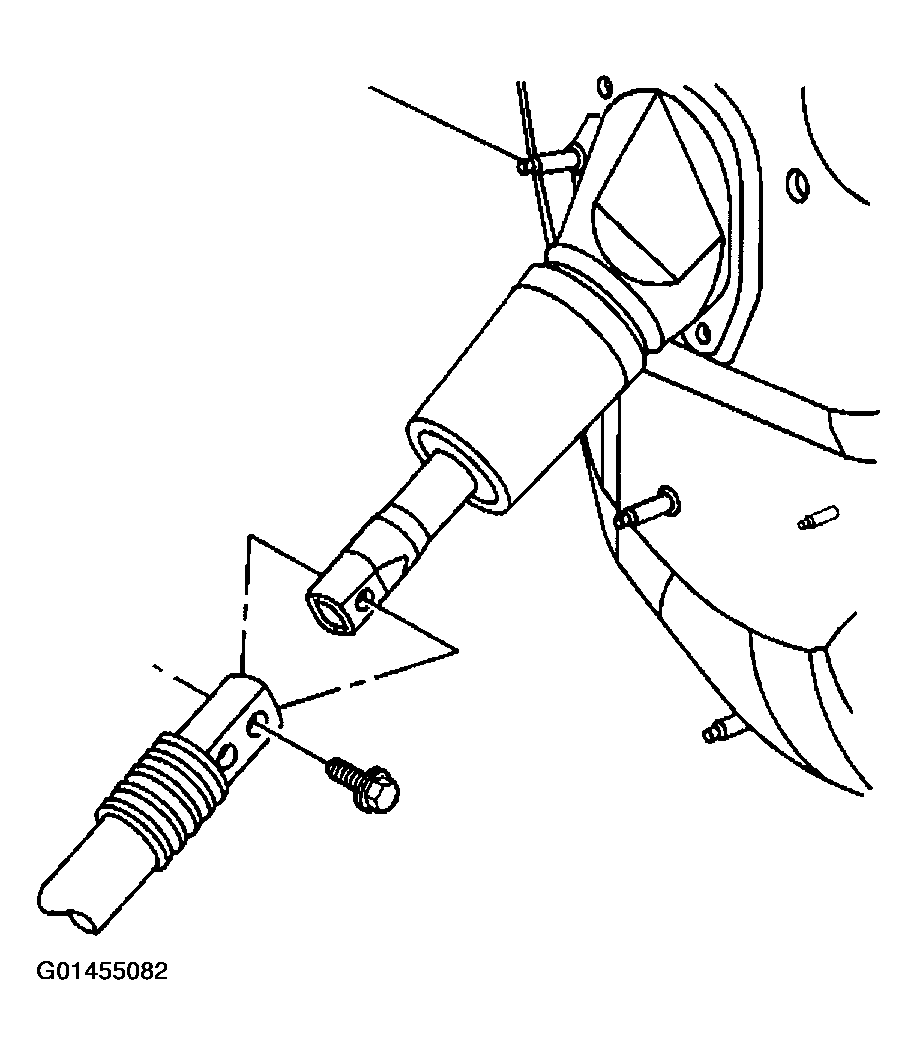

    Fig 1: Installing Bolt To Upper End Of Intermediate Shaft Into Upper Shaft (Lower)
    G01455082Courtesy of GENERAL MOTORS CORP.
    Fig 2: Removing J 42640 From Steering Column Lower Access Hole (Lower)
    G01455083Courtesy of GENERAL MOTORS CORP.
