Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Disable the supplemental inflatable restraint (SIR) system. Refer to ZONE 3 in SIR.
Remove the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT .
Turn the ignition lock cylinder to the START position.
Using an awl, insert the tip into the access hole (1) of the ignition lock cylinder.
Push down and hold the lock cylinder retaining pin.

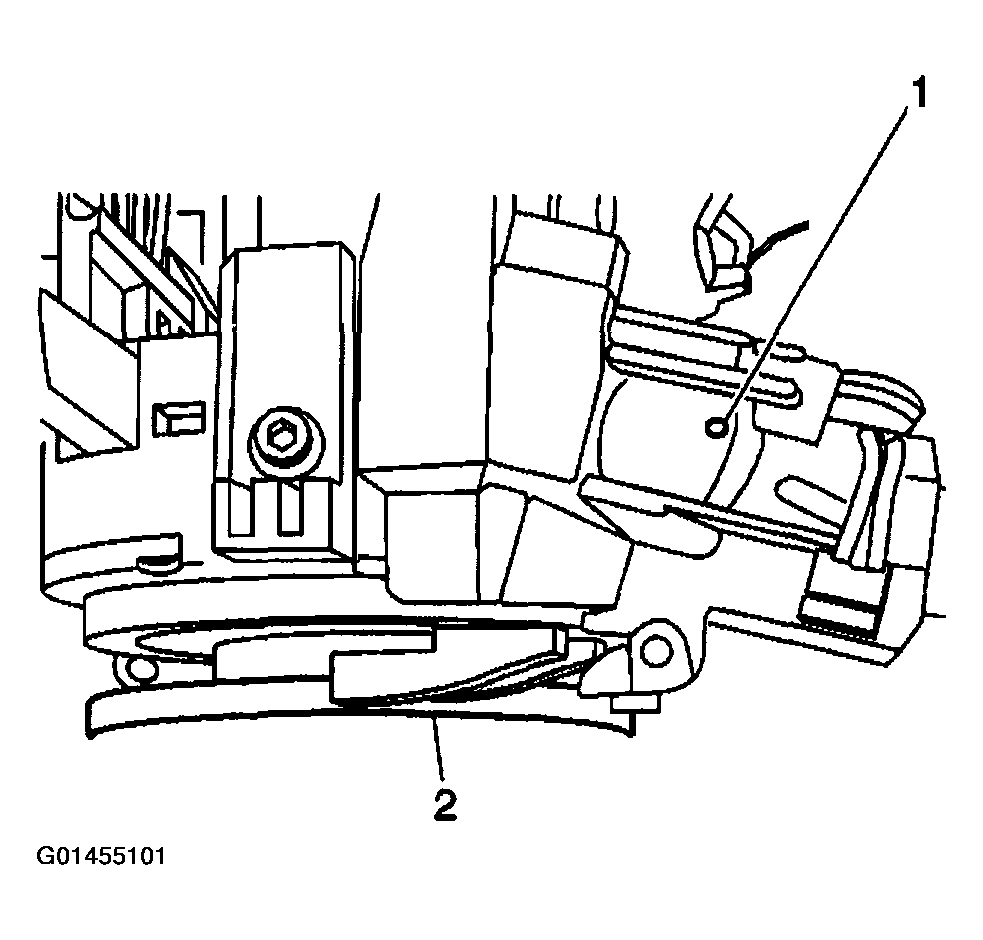

Fig 1: Inserting Tip Into Access Hole Of Ignition Lock Cylinder Using An Awl
Courtesy of GENERAL MOTORS CORP.
Release the lock cylinder to the RUN position.
Pull the lock cylinder away from the steering column.

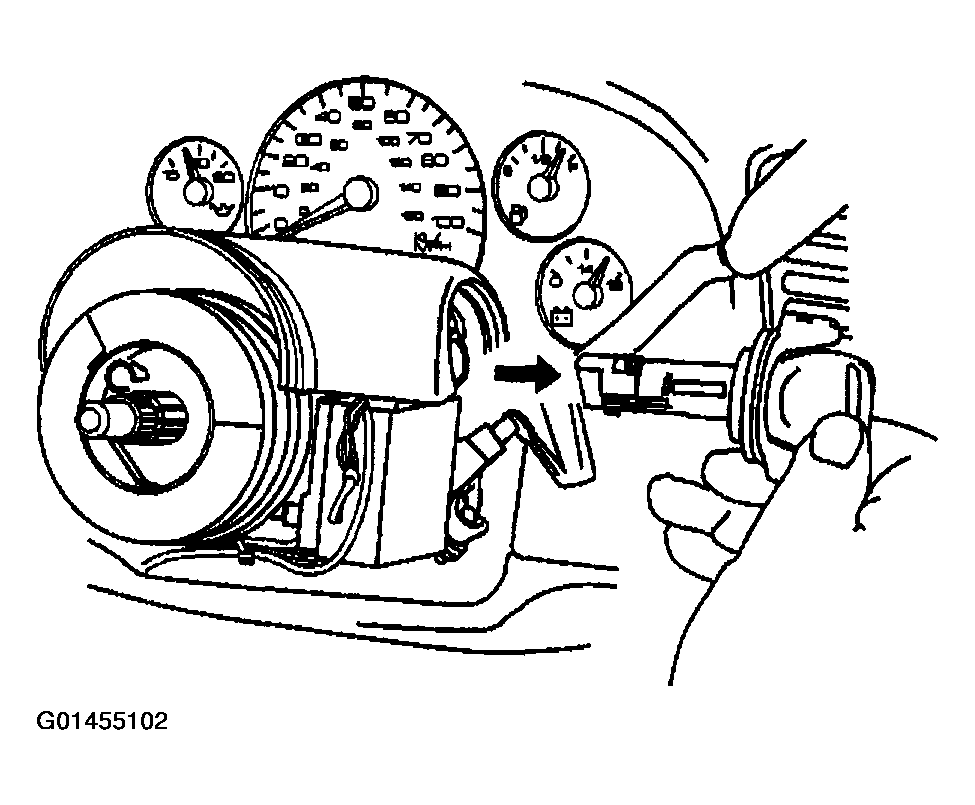

Fig 2: Removing Ignition Lock Cylinder From Steering Column
Courtesy of GENERAL MOTORS CORP.
