Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ignition lock cylinder into the steering column using the following procedure:
    1. Align the positioning locking tab slot on the ignition lock cylinder case assembly to the positioning tab on the ignition lock cylinder.
    2. Push the lock cylinder in until the locking tab locks in the ignition lock cylinder case assembly.
  2. Install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT  .
  3. Enable the SIR system. Refer to ZONE 3 in SIR.
  4. Perform the Passlock learn procedure. Refer to PROGRAMMING THEFT DETERRENT SYSTEM COMPONENTS in Theft Deterrent.

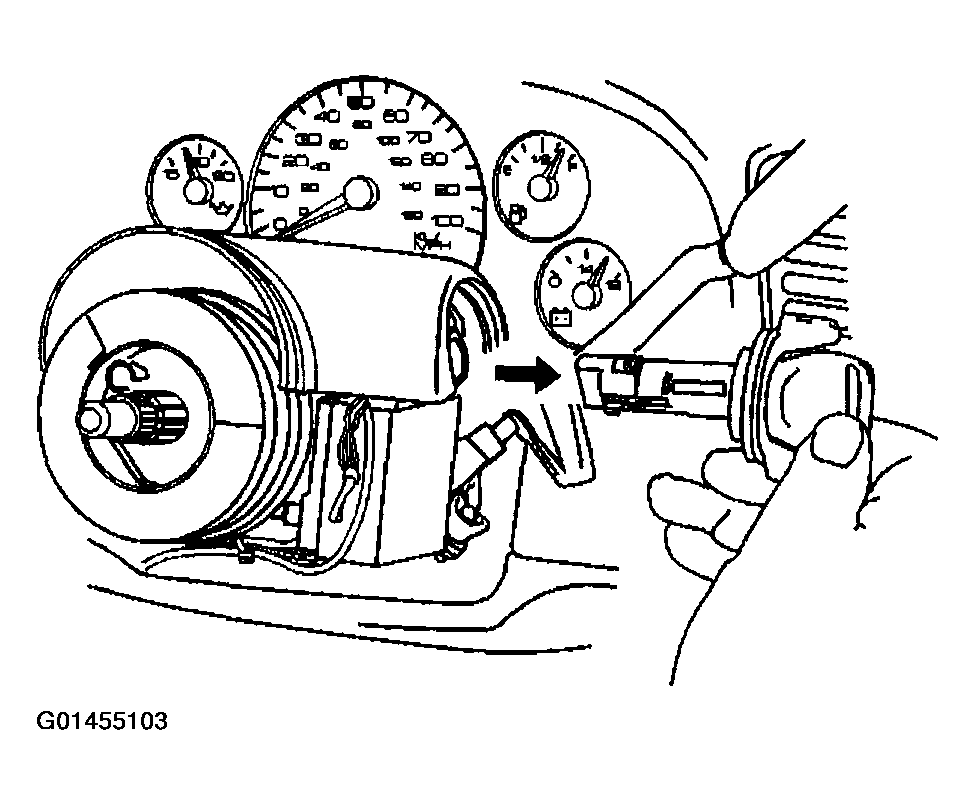

    Fig 1: Installing Ignition Lock Cylinder Into Steering Column
    G01455103Courtesy of GENERAL MOTORS CORP.
