Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the ignition lock cylinder case (1) with the steering column tilt head assembly.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Screw the 3 TORX® screws (2) into the ignition lock cylinder case (1).

    Tighten

    Tighten the screws to 7 N.m (62 lb in).

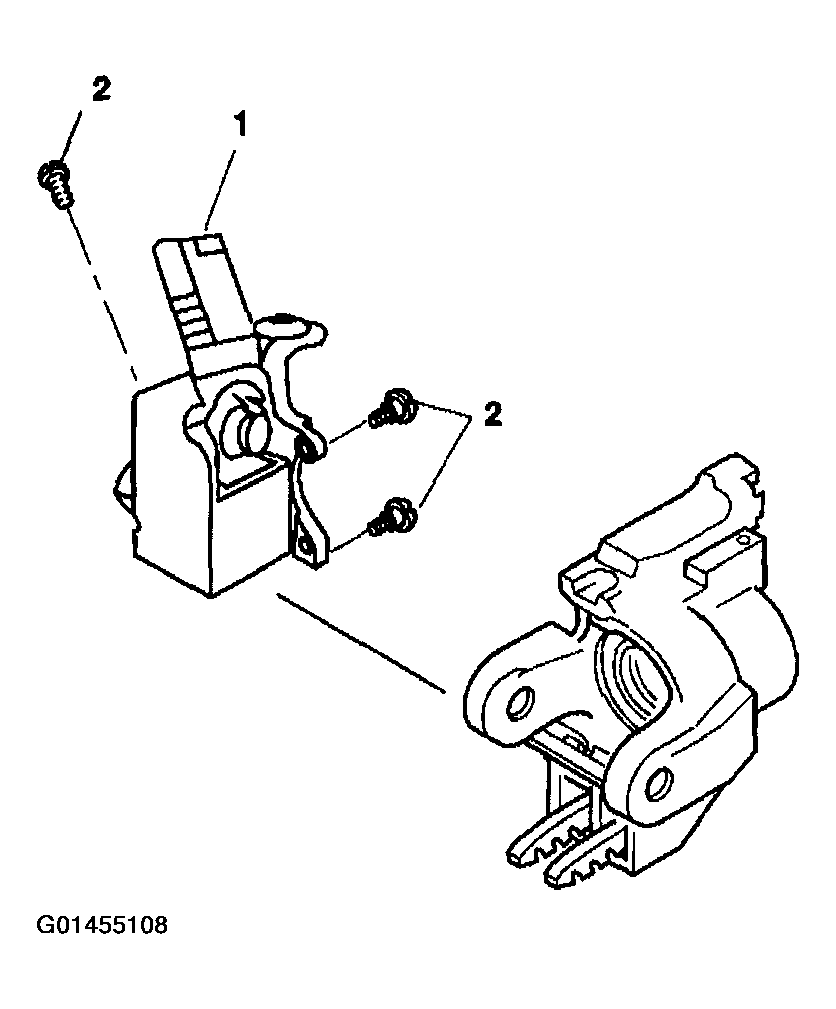

    Fig 1: Installing TORX® Screws & Ignition Lock Cylinder Case
    G01455108Courtesy of GENERAL MOTORS CORP.
  3. Place steering column lock cylinder set into the OFF position.
  4. Place the shift lever clevis into the PARK position.
  5. Press the locking tab on the end of the park lock cable assembly (1) into the slot in the ignition lock cylinder case.
  6. Install the ignition switch. Refer to IGNITION SWITCH REPLACEMENT  .

    Important:  The abrasion sleeve must be installed back onto the steering column wire harness assembly. The ignition lock cylinder case wires and connector must be hanging out of the middle of the abrasion sleeve.

  7. Install the steering column tilt head assembly. Refer to STEERING COLUMN TILT HEAD HOUSING REPLACEMENT (TILT)  or STEERING COLUMN TILT HEAD HOUSING REPLACEMENT (STANDARD)  .
  8. Enable the SIR system. Refer to ZONE 3 in SIR.

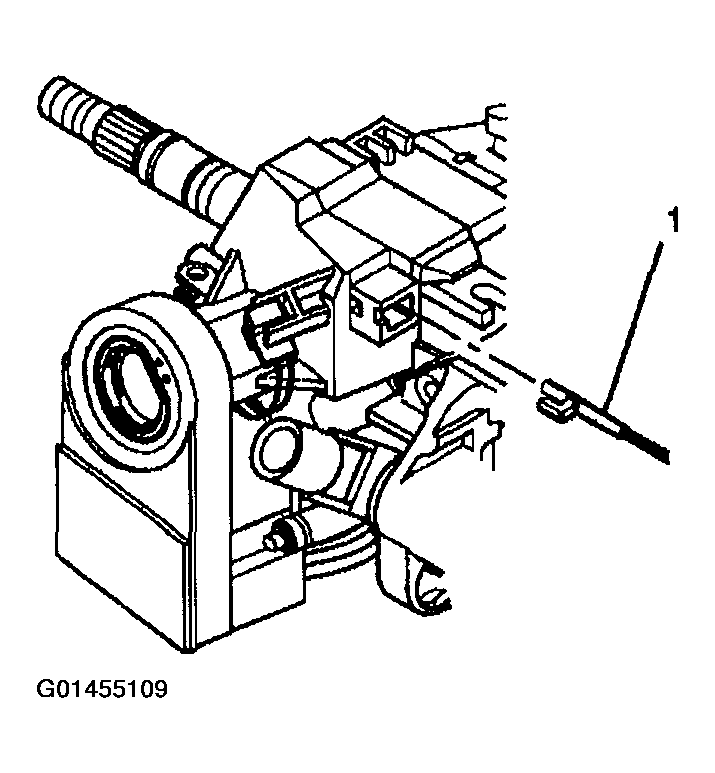

    Fig 2: Installing Park Lock Cable Assembly To Ignition Lock Cylinder Case
    G01455109Courtesy of GENERAL MOTORS CORP.
