Schematic and Routing Diagrams

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Suspension Controls Schematic Icons

Courtesy of GENERAL MOTORS CORP.

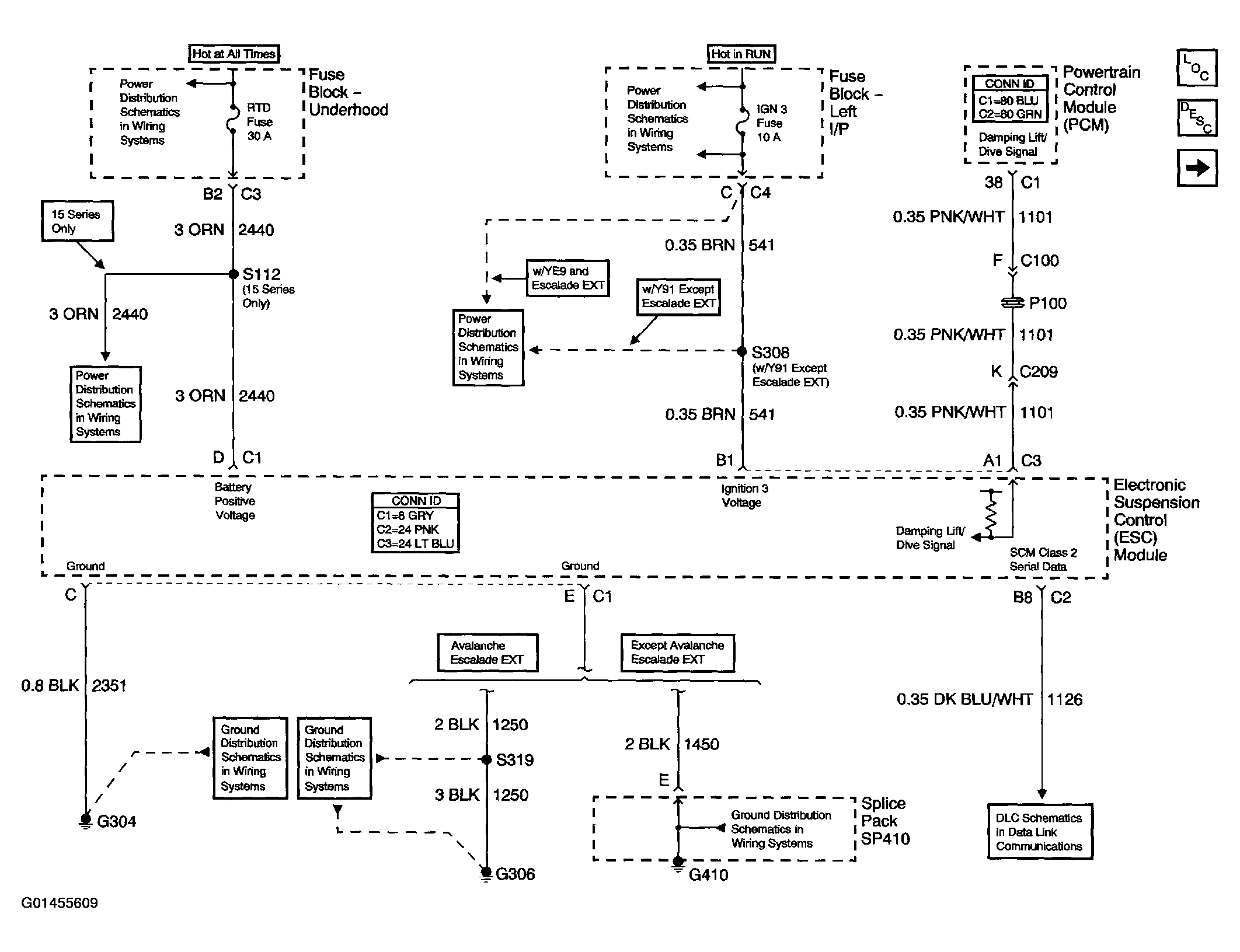

Fig 2: Suspension Controls Schematics (Power, Ground And DLC)

Courtesy of GENERAL MOTORS CORP.

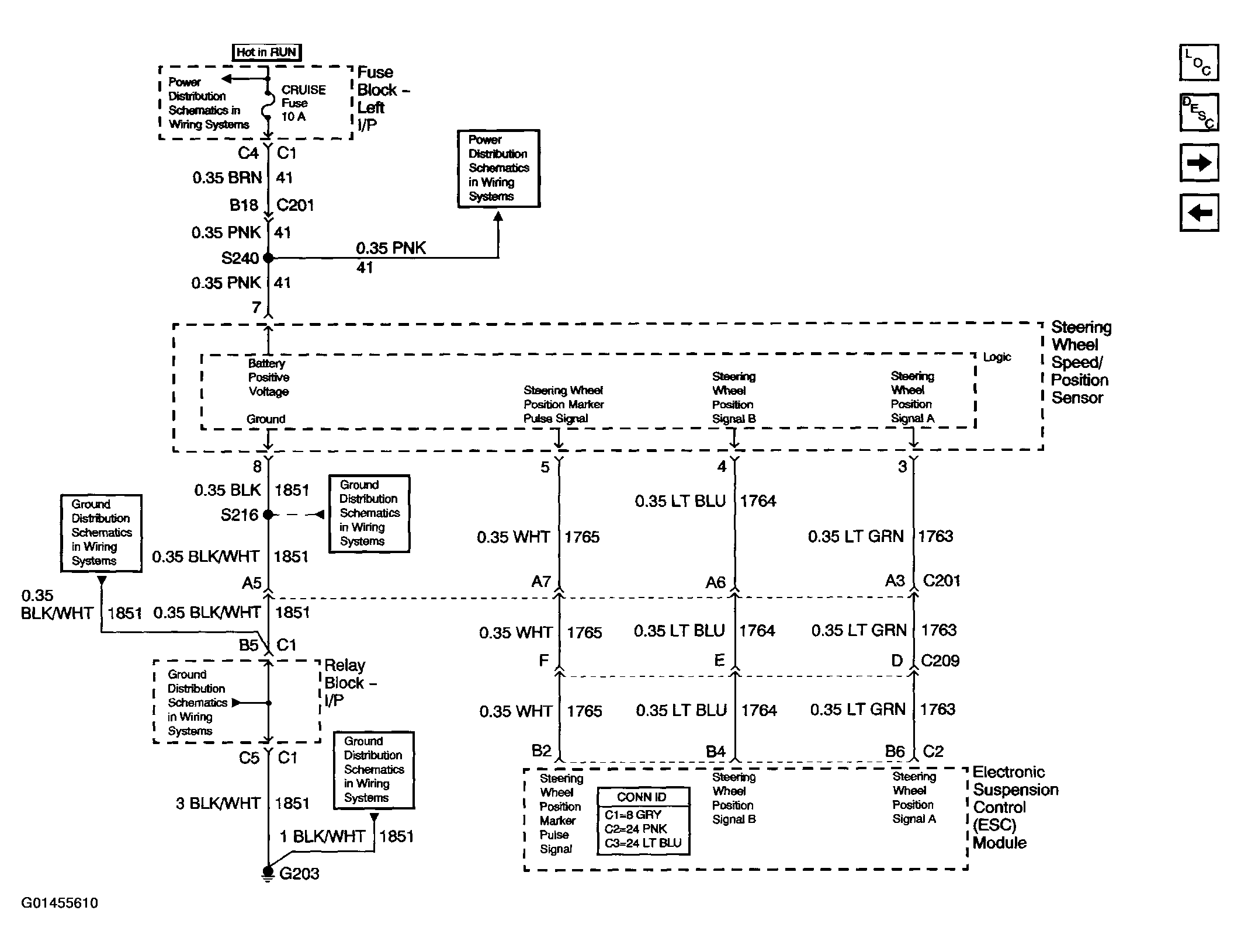

Fig 3: Suspension Controls Schematics (Steering Wheel Speed/Position Sensor Inputs)

Courtesy of GENERAL MOTORS CORP.

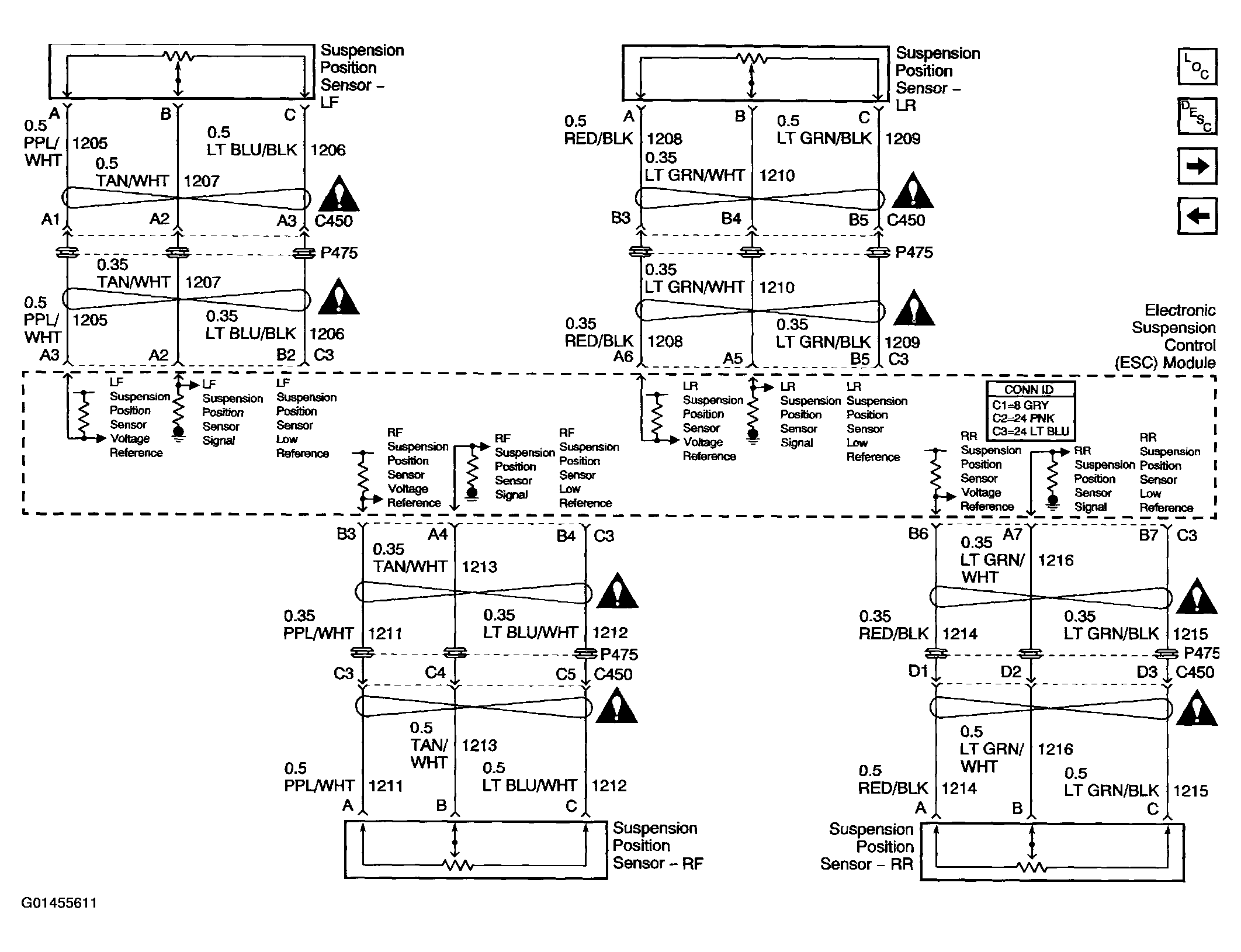

Fig 4: Suspension Controls Schematics (Suspension Position Sensors)

Courtesy of GENERAL MOTORS CORP.

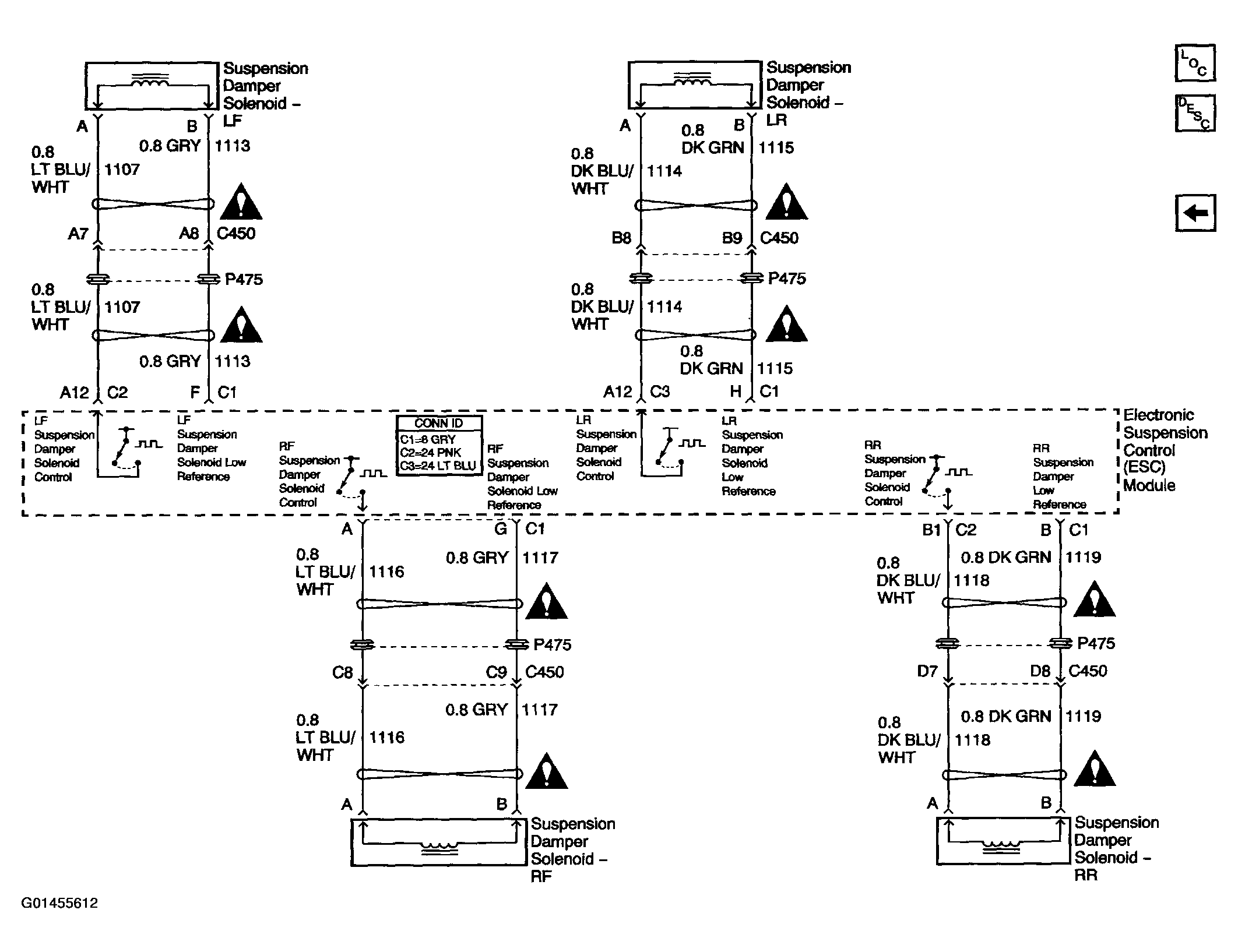

Fig 5: Suspension Controls Schematics (Suspension Damper Solenoids)

Courtesy of GENERAL MOTORS CORP.
