Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the wheel from the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Disconnect the sensor harness connector from the vehicle harness connector.

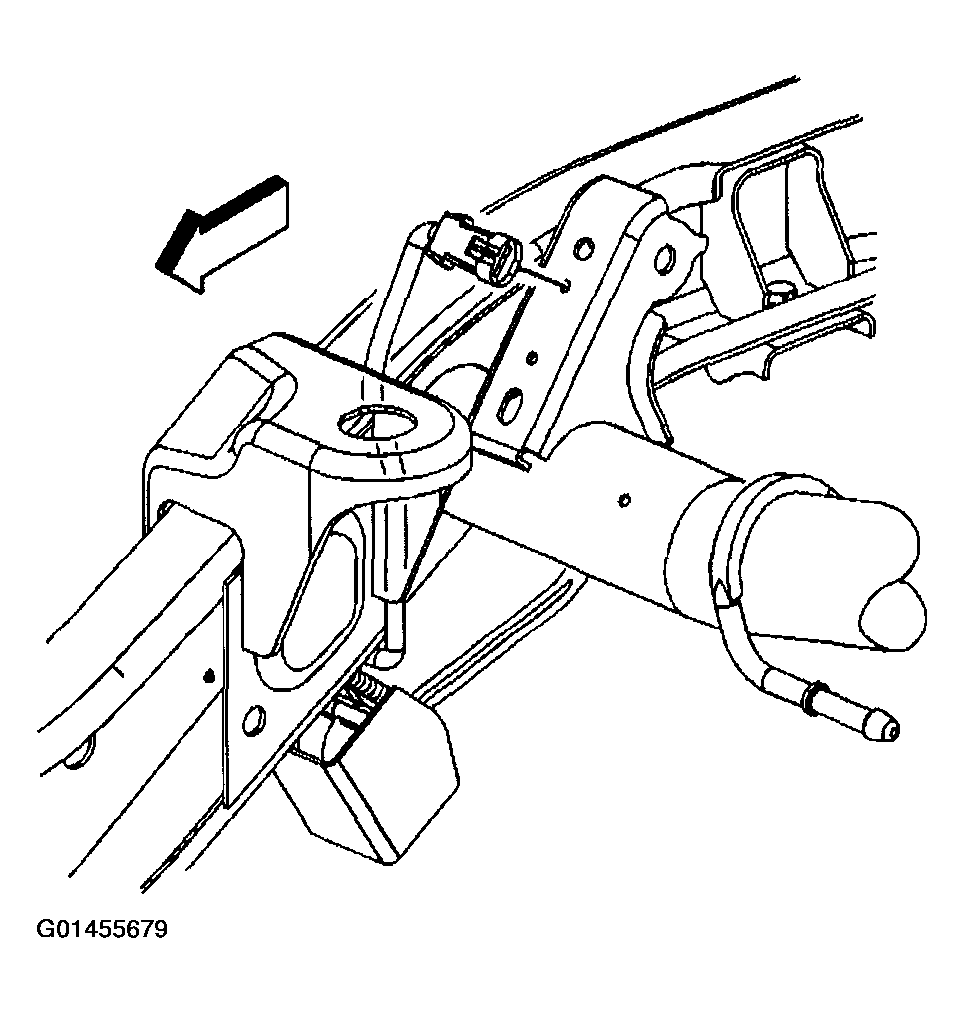

    Fig 1: Disconnecting Sensor Harness Connector From Vehicle Harness Connector (Right)
    G01455679Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the sensor link from the ball stud.
  5. Remove the bolts.
  6. Remove the position sensor from the vehicle.

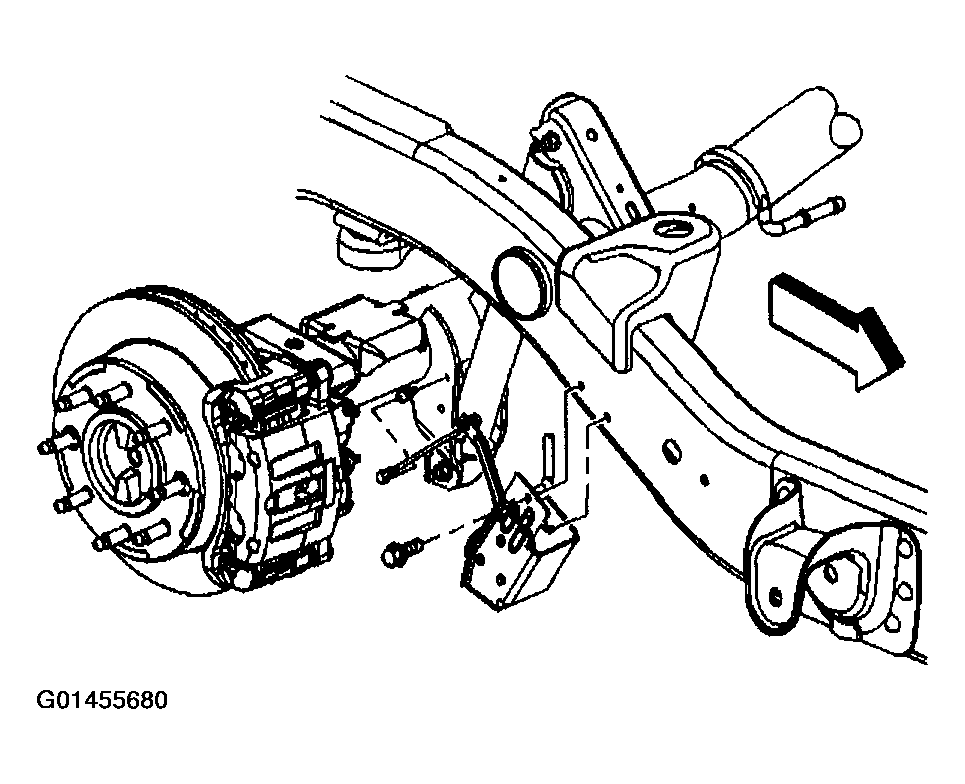

    Fig 2: Removing Position Sensor & Bolts From Vehicle (Right)
    G01455680Courtesy of GENERAL MOTORS CORP.
