Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the position sensor on the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts.

    Tighten

    Tighten the bolts to 12 N.m (106 lb in).

  3. Connect the sensor link to the ball stud.

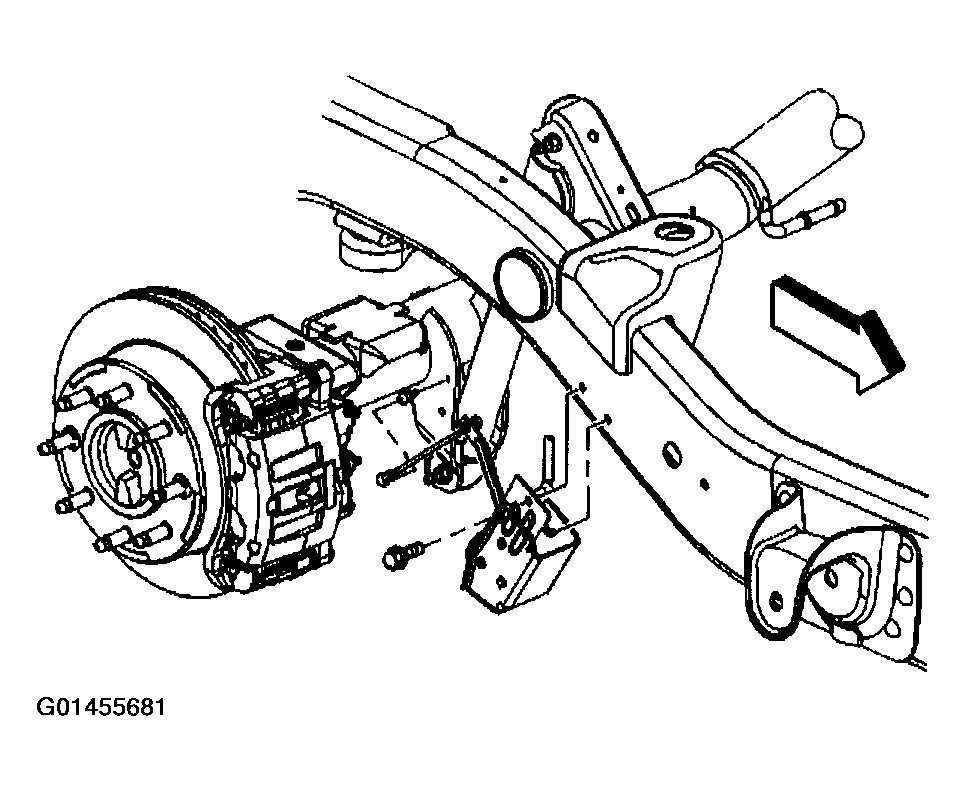

    Fig 1: Installing Position Sensor & Bolts To Vehicle (Right)
    G01455681Courtesy of GENERAL MOTORS CORP.
  4. Connect the sensor harness connector to the vehicle harness connector.
  5. Install the wheel to the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  6. Lower the vehicle.

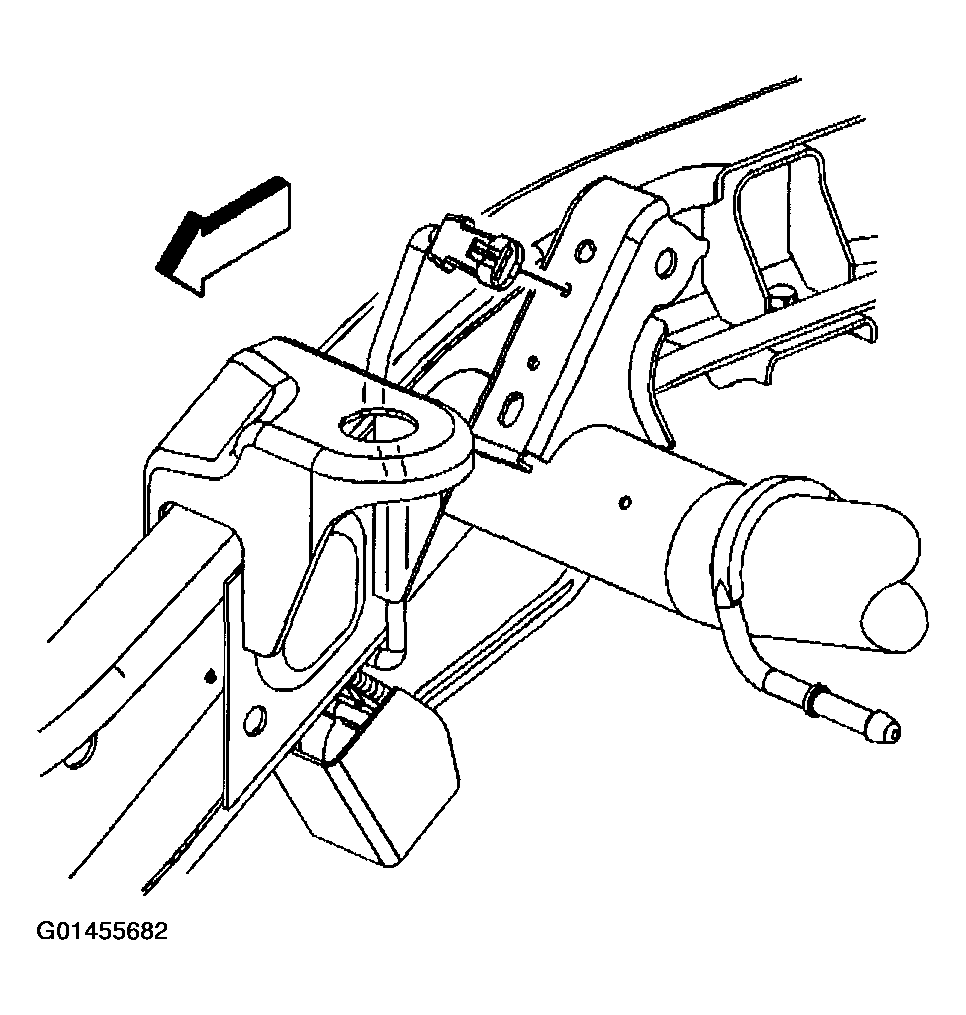

    Fig 2: Connecting Sensor Harness Connector To Vehicle Harness Connector (Right)
    G01455682Courtesy of GENERAL MOTORS CORP.
