Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the position sensor to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolt to the frame.

    Tighten

    Tighten the bolts to 12 N.m (106 lb in).

  3. Install the ESC sensor link bracket bolt to the upper control arm.

    Tighten

    Tighten the bolt to 9 N.m (80 lb in).

  4. Connect the sensor harness connector to the vehicle harness connector.
  5. Install the wheel speed sensor wire to the ESC sensor bracket.
  6. Install the ESC sensor link bracket bolt to the upper control arm.
  7. Lower the vehicle.

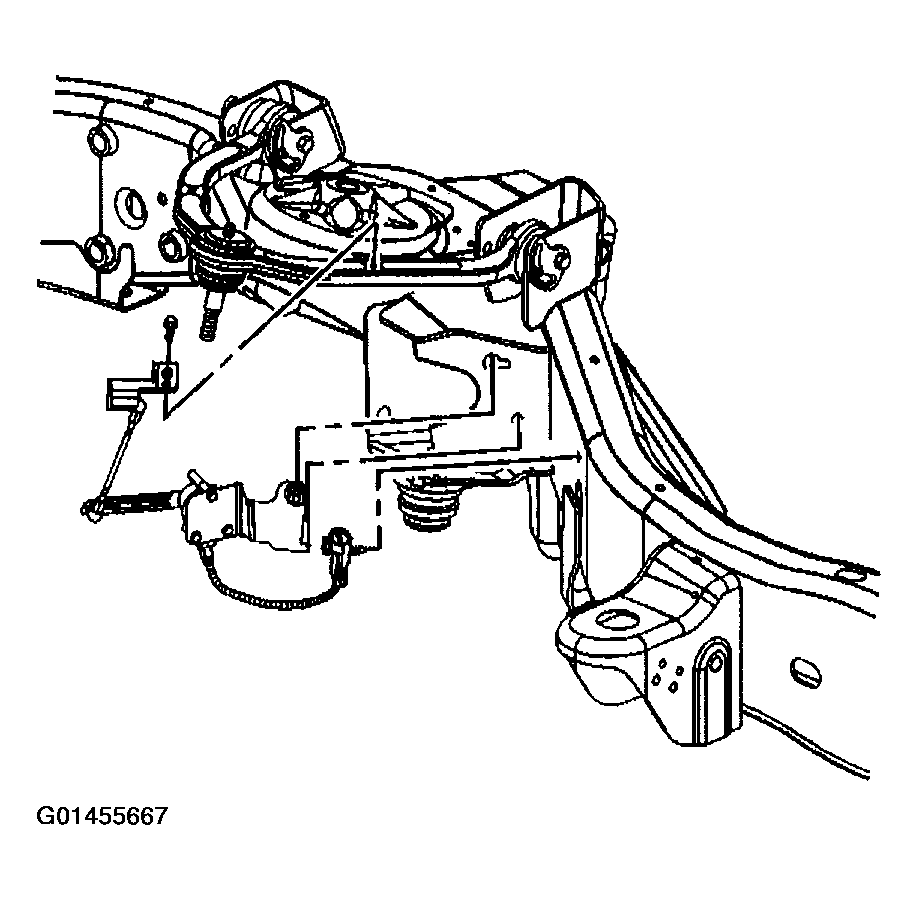

    Fig 1: Installing Electronic Suspension Front Position Sensor (25 Series 2WD)
    G01455667Courtesy of GENERAL MOTORS CORP.
