Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Disconnect the sensor harness connector from the vehicle harness connector.
  3. Remove the wheel speed sensor wire from the electronic suspension control (ESC) sensor bracket.
  4. Remove the wheel speed sensor wire from the ESC sensor bracket.
  5. Remove the ESC sensor link bracket bolt from the upper control arm.

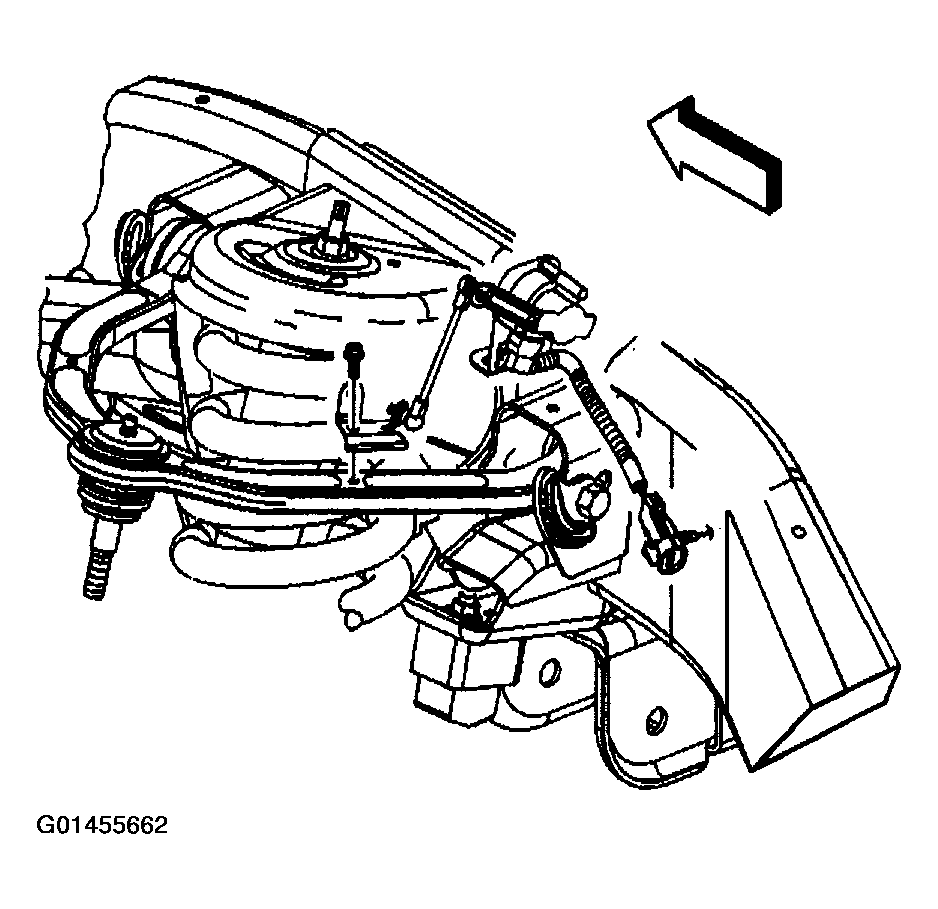

    Fig 1: Removing ESC Sensor Link Bracket Bolt From Upper Control Arm
    G01455662Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolt from the frame.
  7. Remove the position sensor from the vehicle.

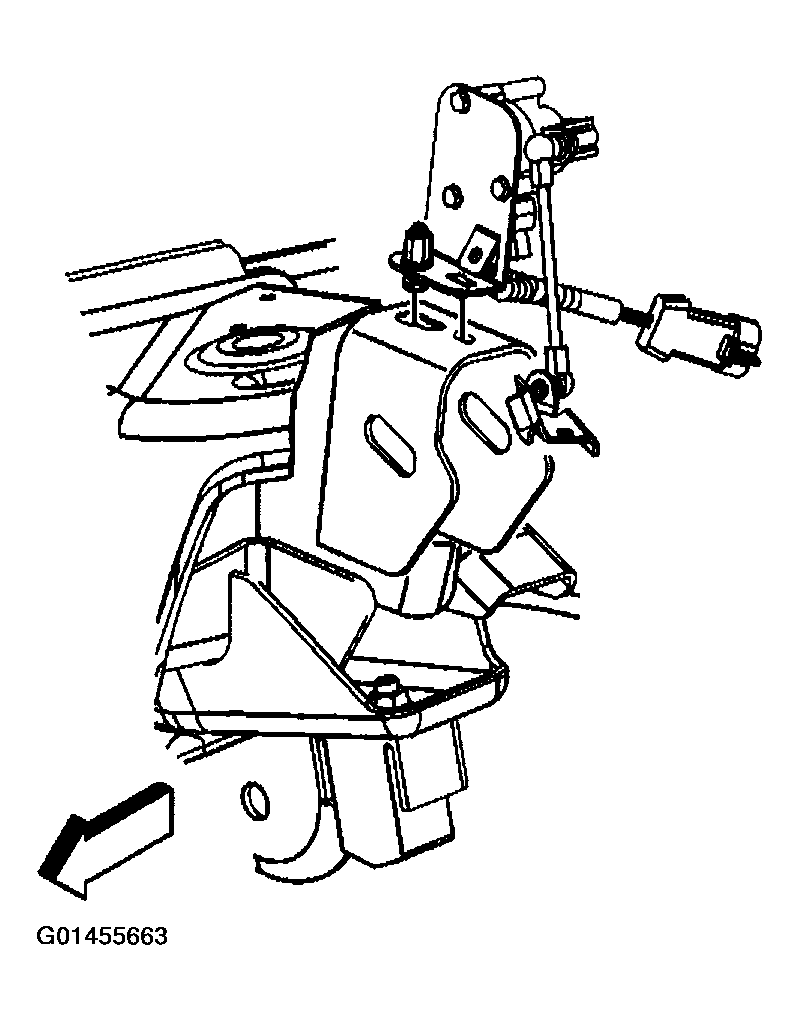

    Fig 2: Removing Position Sensor From Vehicle
    G01455663Courtesy of GENERAL MOTORS CORP.
