Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side interior trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (UTILITY) or TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (SUBURBAN) in Interior Trim.
  2. Disconnect the electrical connectors from the module.
  3. Remove the screw.
  4. Slide the module from the bracket and remove the module from the vehicle.

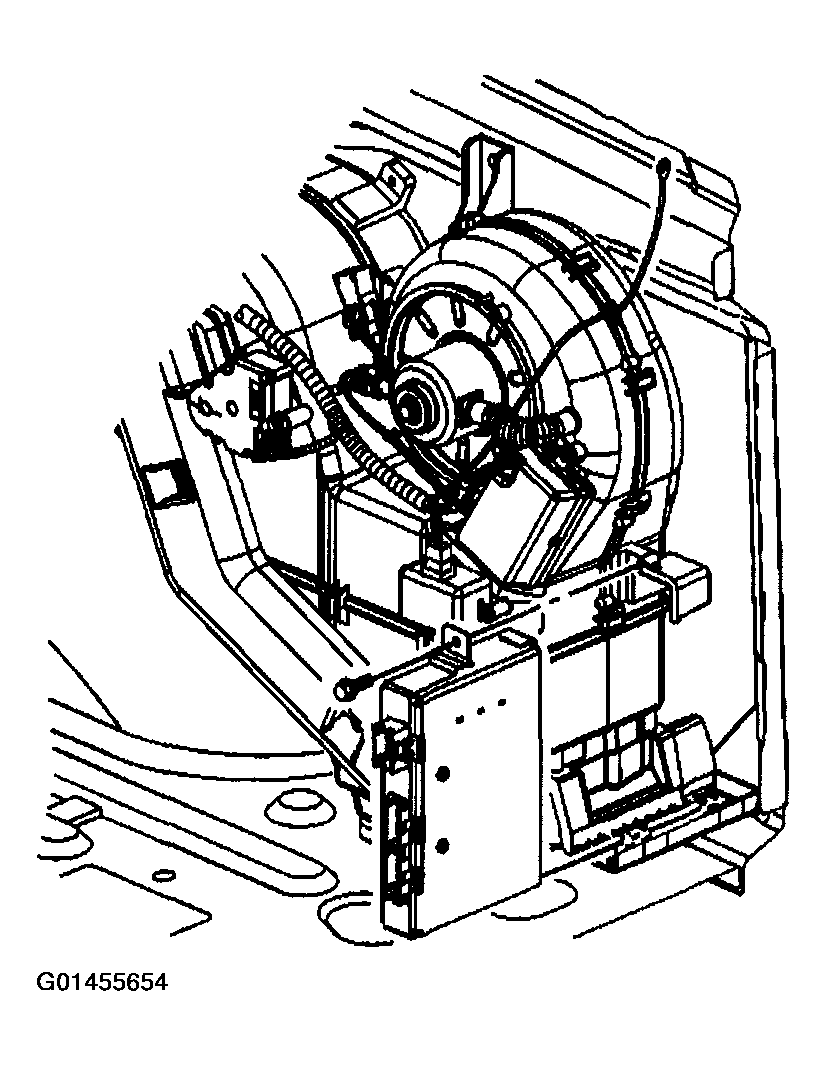

    Fig 1: Removing Electronic Suspension Control Module (Tahoe/Yukon/Escalade)
    G01455654Courtesy of GENERAL MOTORS CORP.
