Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull up on the handle at the rear of the seat to gain access to the control module.
  2. Remove the retainers (1) from the control module cover (2).

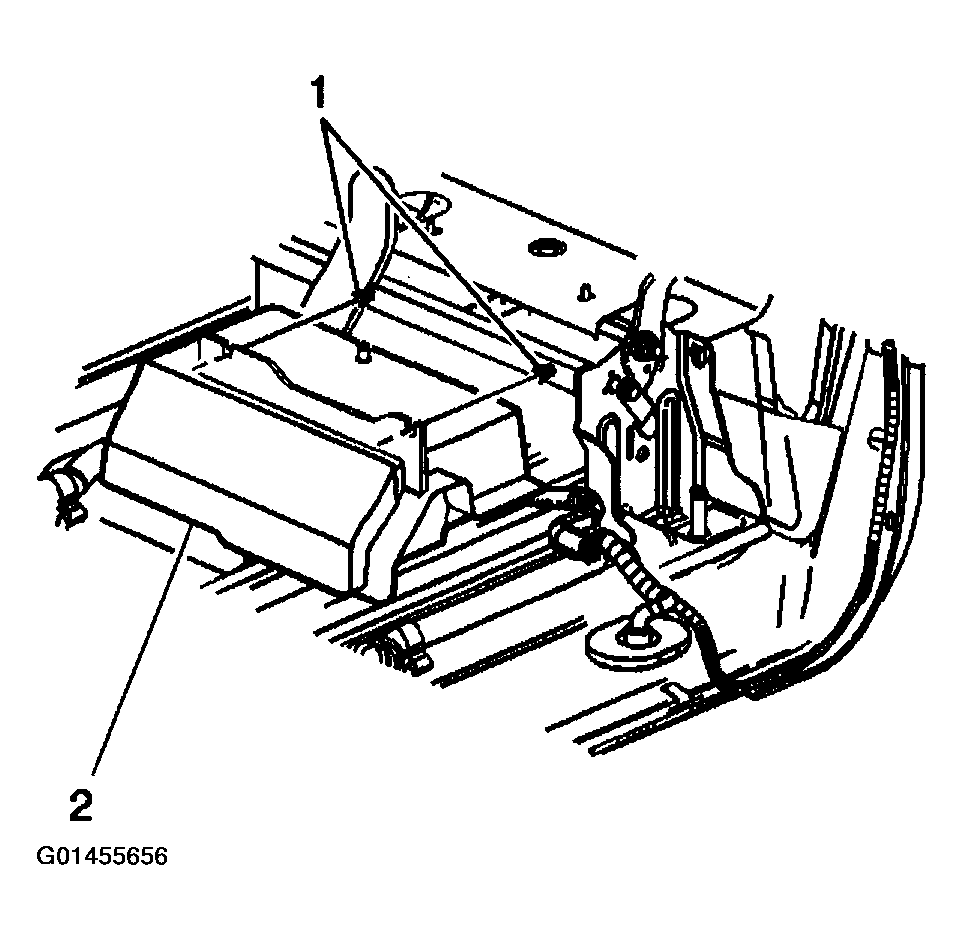

    Fig 1: Removing Retainers From Control Module Cover
    G01455656Courtesy of GENERAL MOTORS CORP.
  3. Remove the cover (1) from the vehicle.
  4. Disconnect the wiring harness (2) from the control module (3).

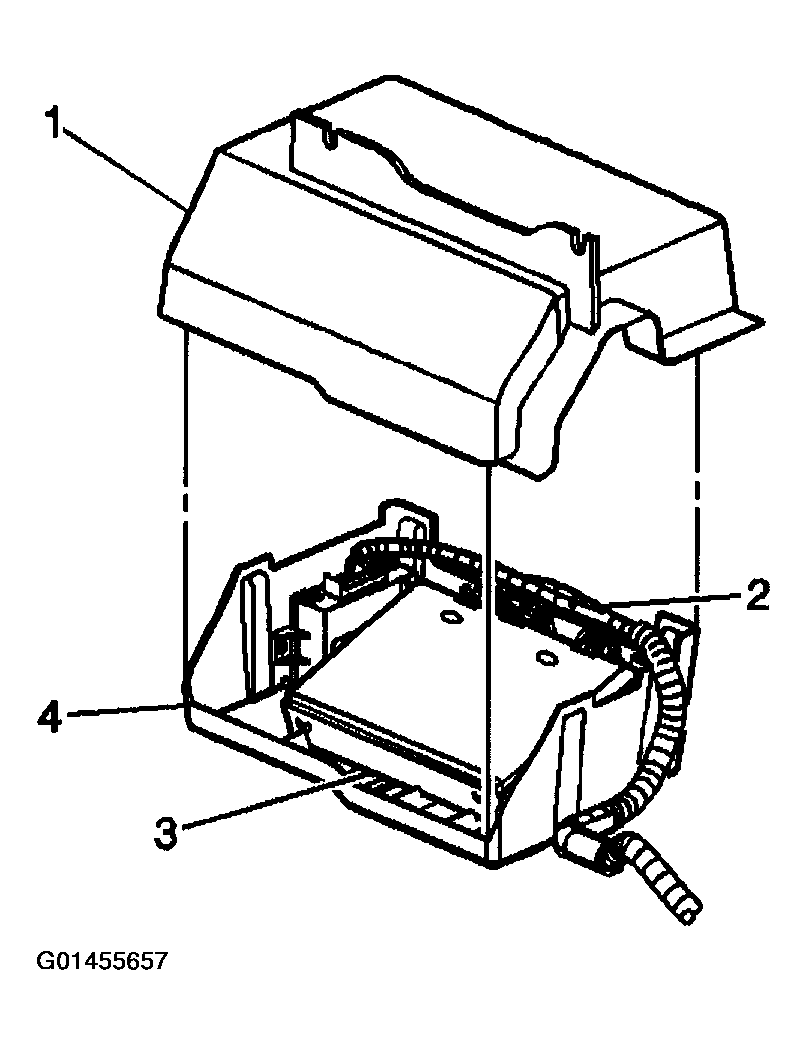

    Fig 2: Disconnecting Wiring Harness From Control Module
    G01455657Courtesy of GENERAL MOTORS CORP.
  5. Remove the control module (1) from the vehicle.

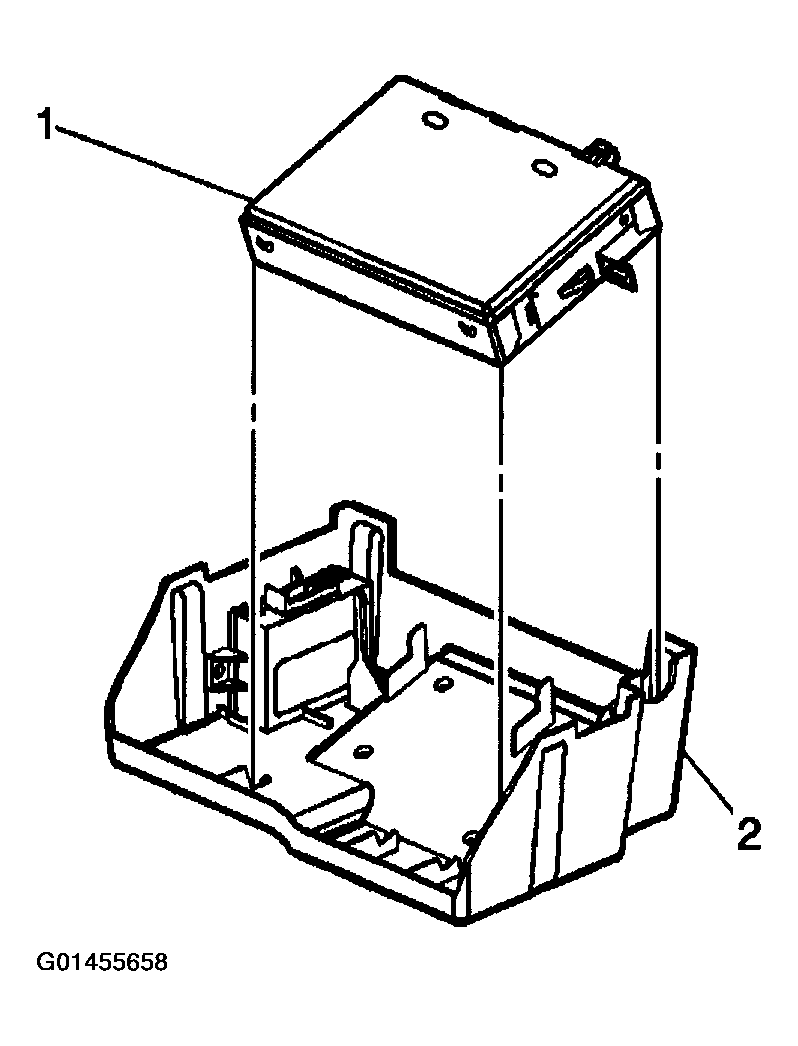

    Fig 3: Removing Control Module From Vehicle
    G01455658Courtesy of GENERAL MOTORS CORP.
