Cycle Outputs
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

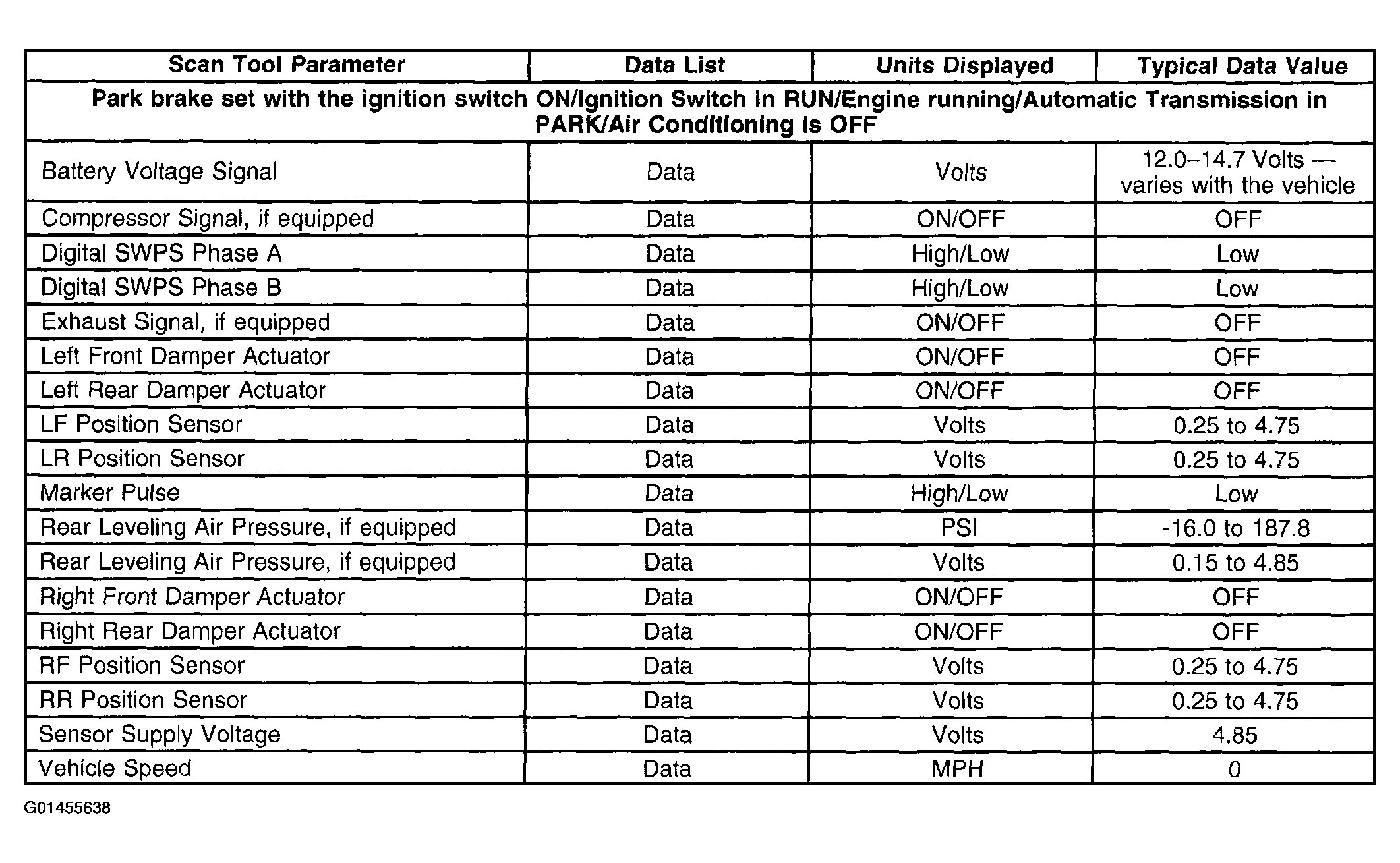

A scan tool may be used in order to command the suspension damper solenoids and SERVICE RIDE CONTROL message ON or OFF. This can be very helpful in determining if a certain portion of a circuit or a component is in working order.
The following tests are available under the Special Functions selection. The following can be commanded ON or OFF:
- Suspension damper solenoids
- SERVICE RIDE CONTROL message
