Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. Checks for other stored DTCs.
  2. Checking to verify the DTC will not reset.

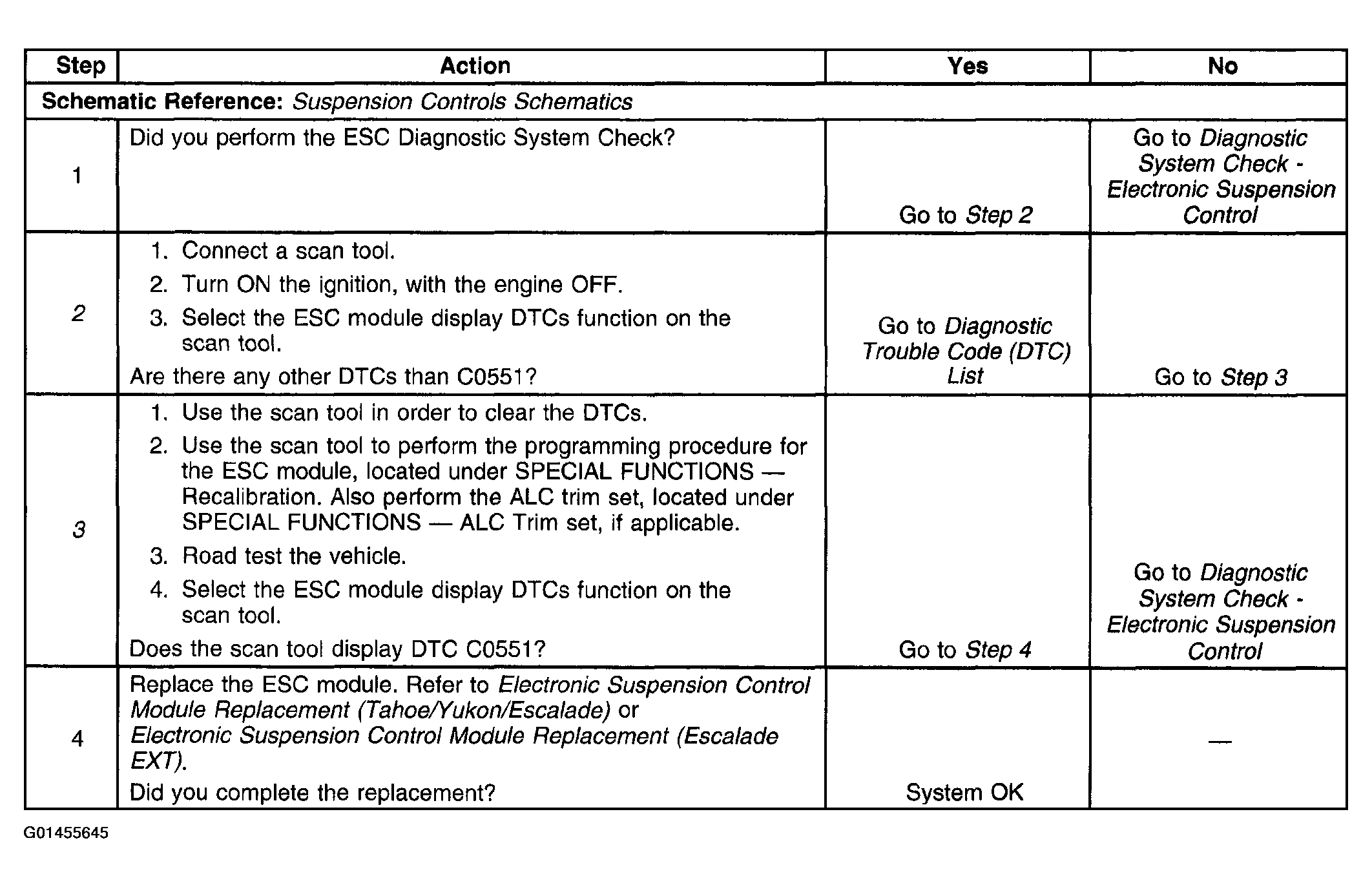

    Fig 1: DTC C0551 Tests
    G01455645Courtesy of GENERAL MOTORS CORP.
