Suspension Controls Connector End Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

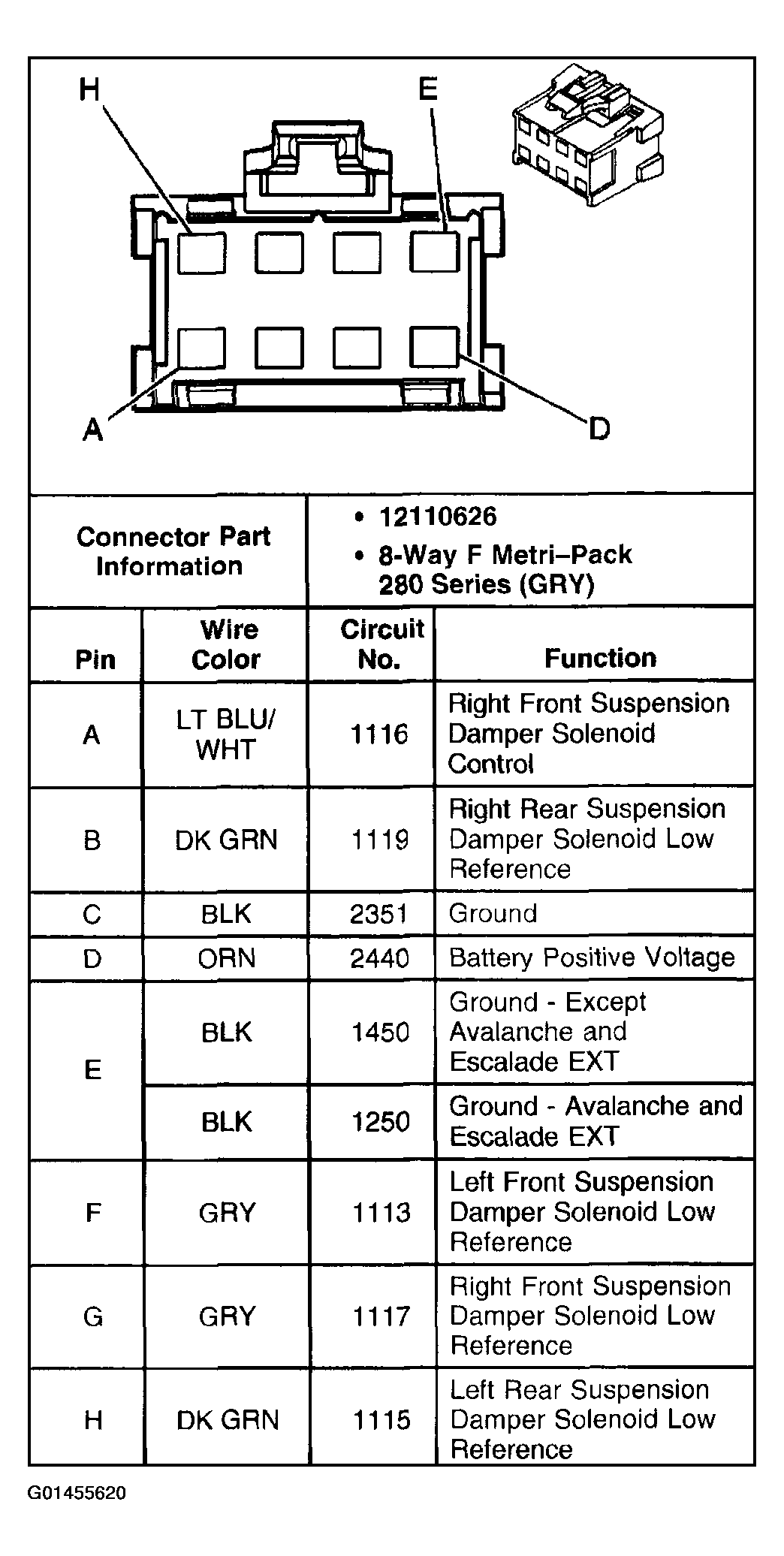

Fig 1: Identifying C1 Module Connector Pins

G01455620

Courtesy of GENERAL MOTORS CORP.

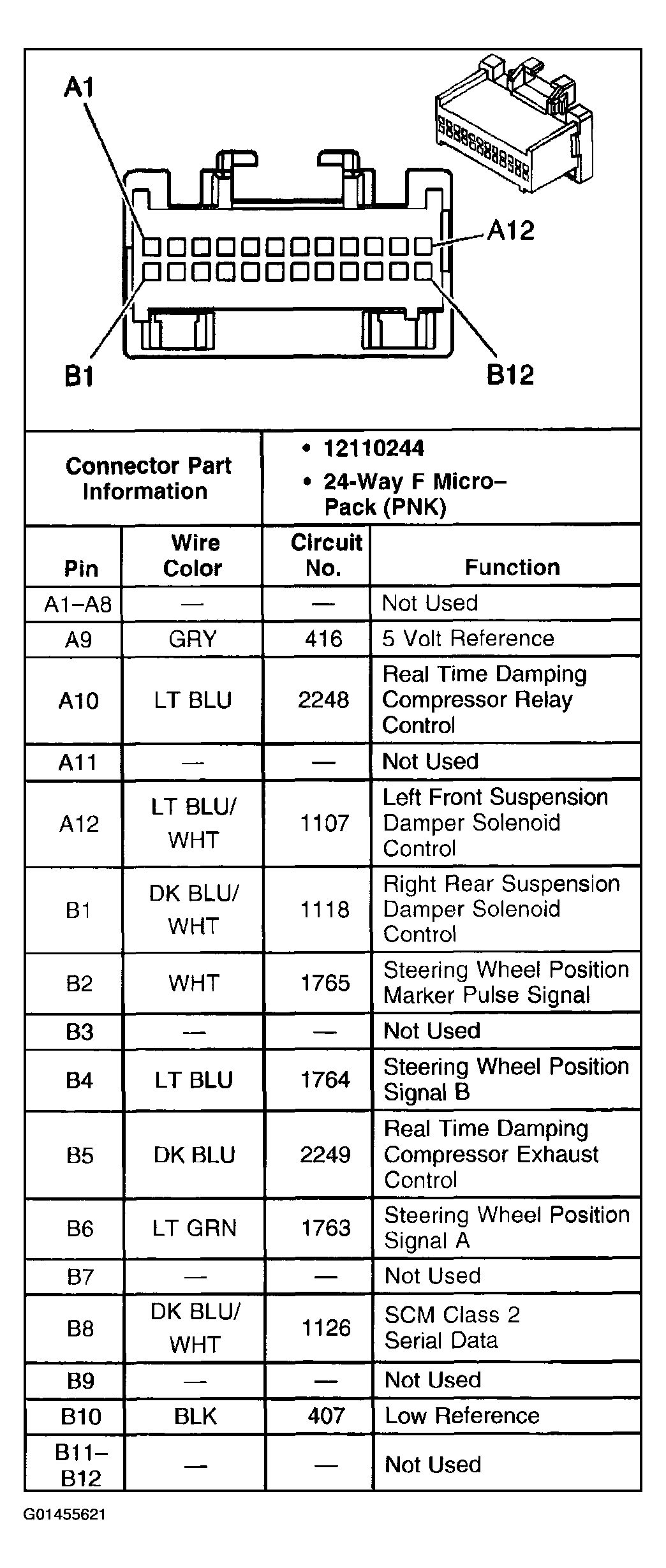

Fig 2: Identifying C2 Module Connector Pins

G01455621

Courtesy of GENERAL MOTORS CORP.

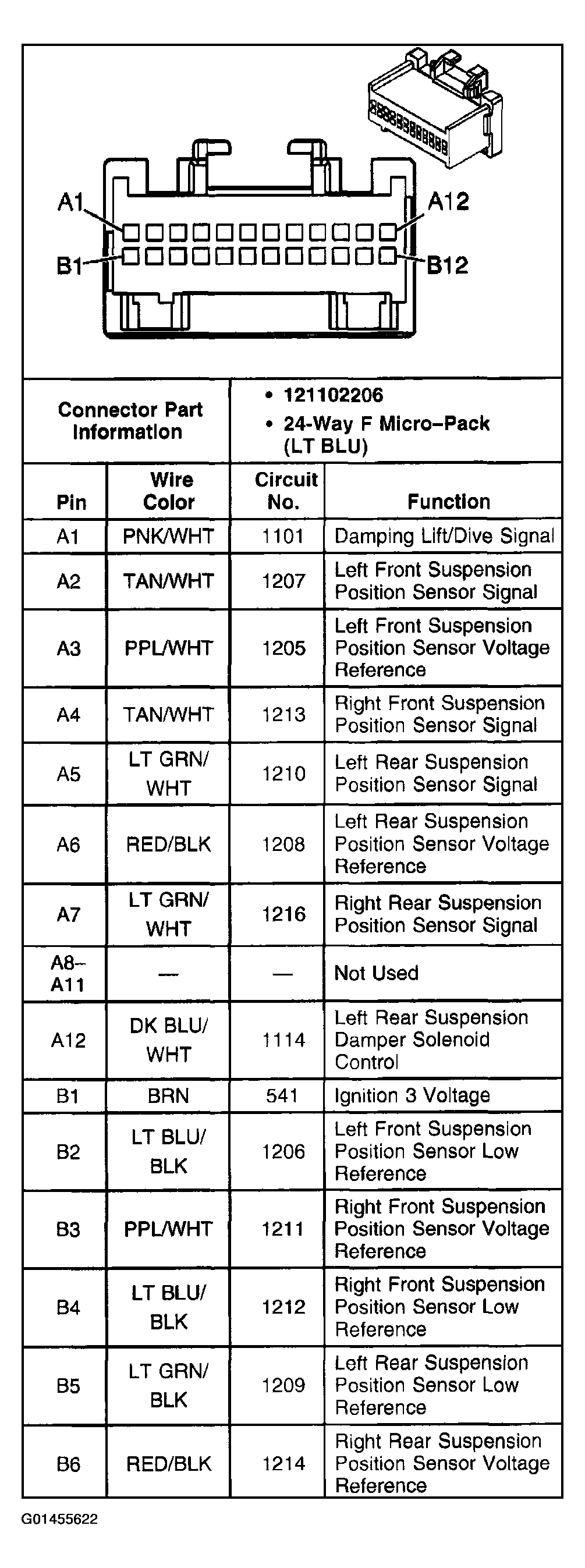

Fig 3: Identifying C3 Module Connector Pins (1 Of 2)

G01455622

Courtesy of GENERAL MOTORS CORP.

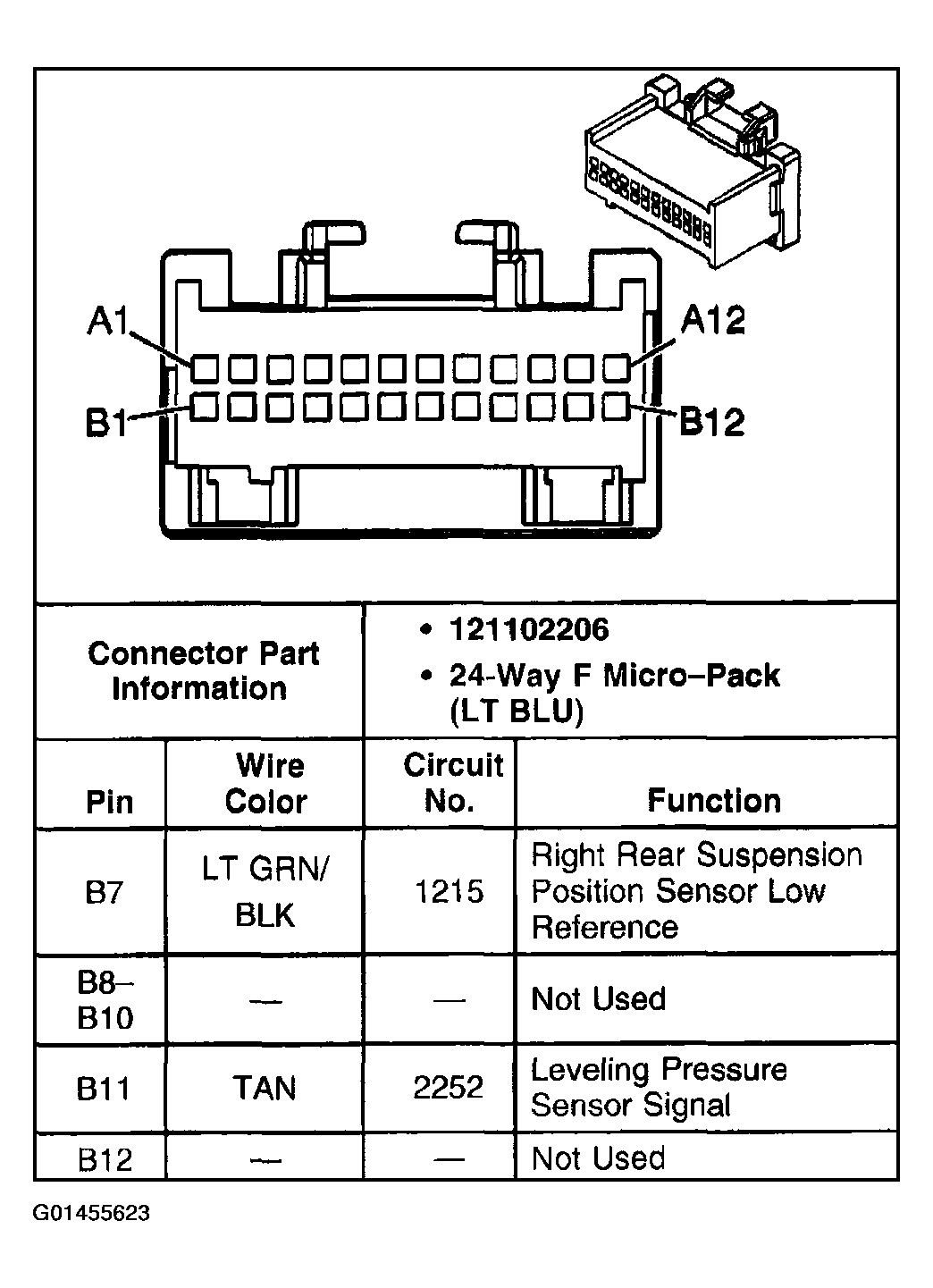

Fig 4: Identifying C3 Module Connector Pins (2 Of 2)

G01455623

Courtesy of GENERAL MOTORS CORP.

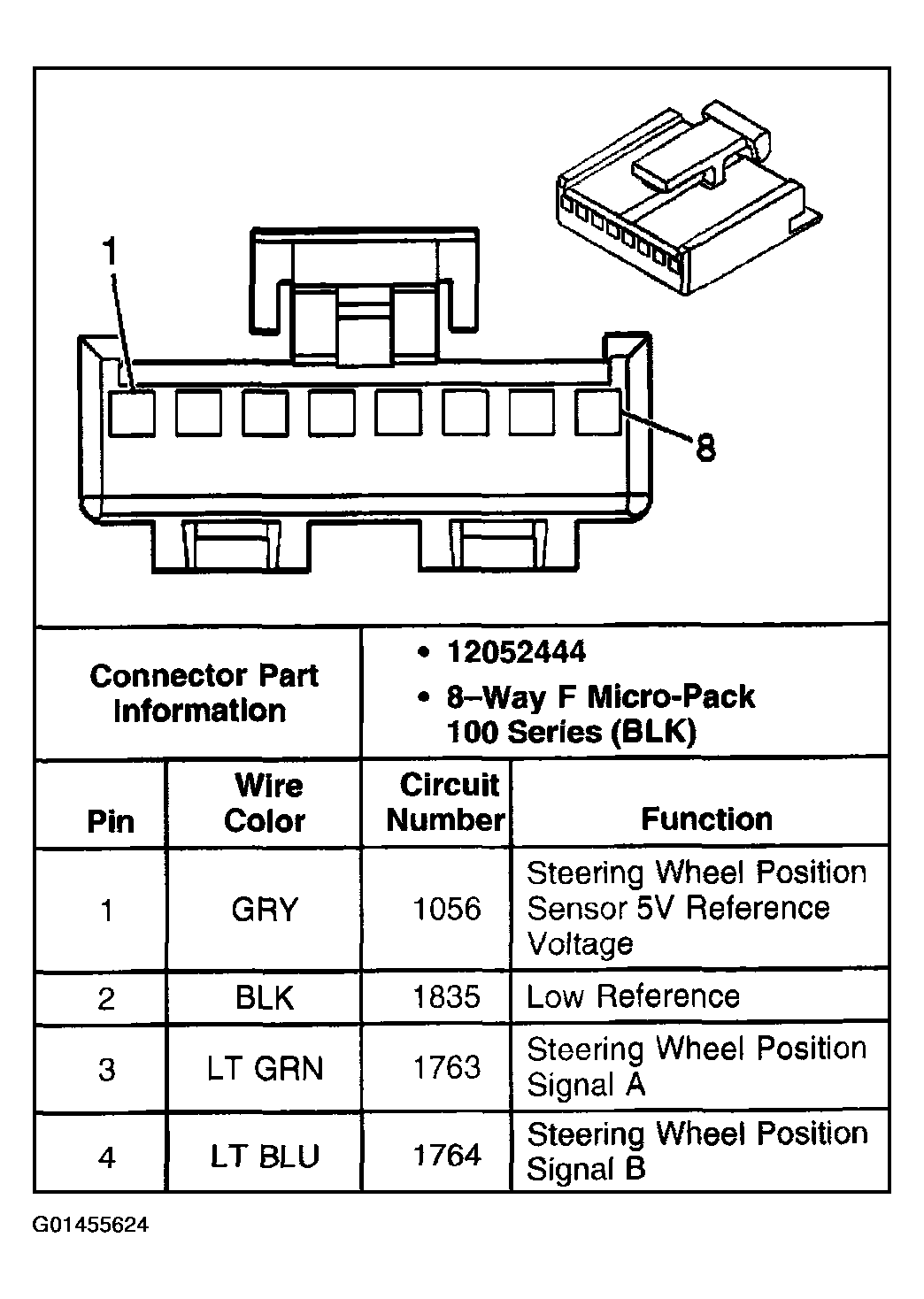

Fig 5: Identifying Steering Wheel Speed/Position Sensor Connector Pins (1 Of 2)

G01455624

Courtesy of GENERAL MOTORS CORP.

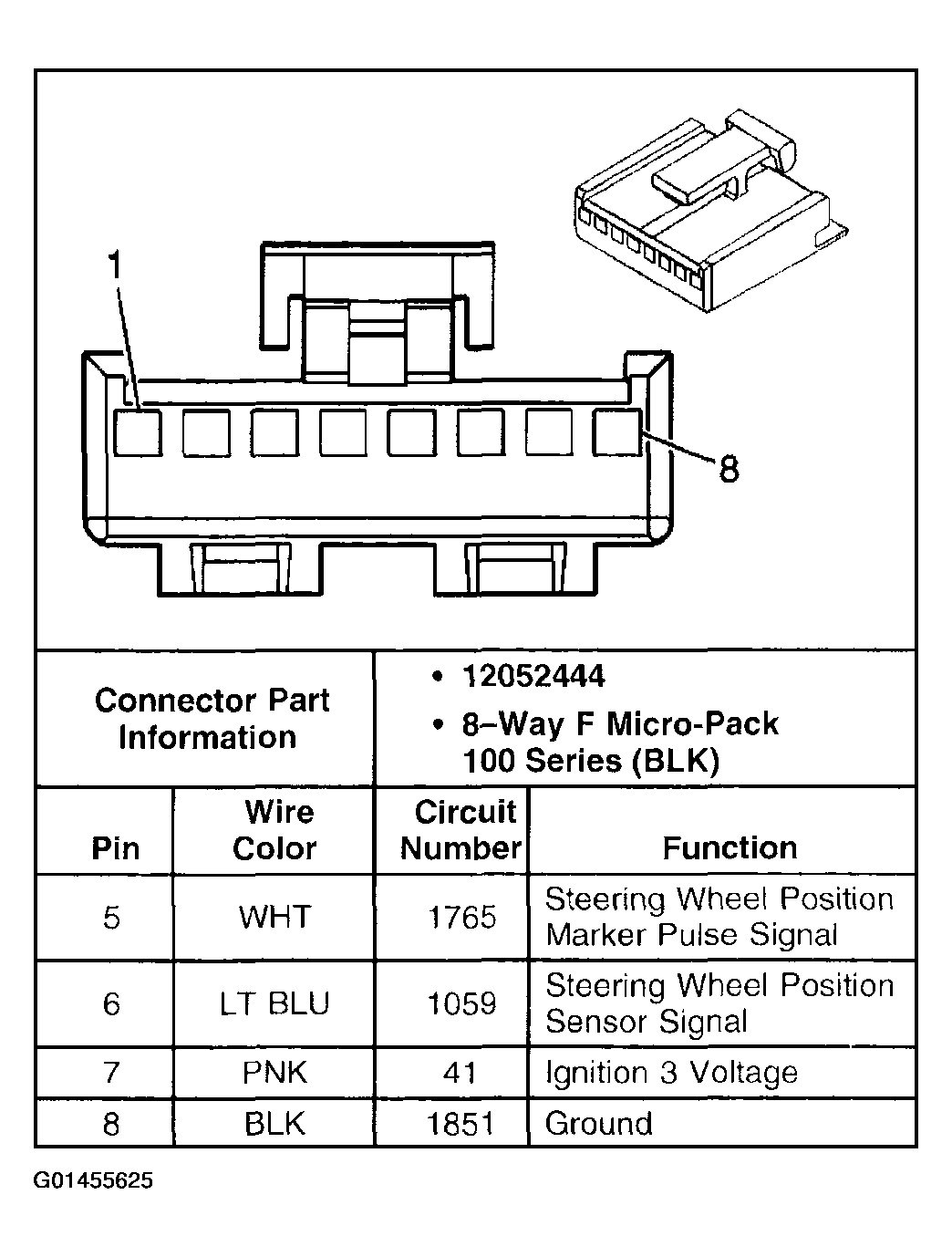

Fig 6: Identifying Steering Wheel Speed/Position Sensor Connector Pins (2 Of 2)

G01455625

Courtesy of GENERAL MOTORS CORP.

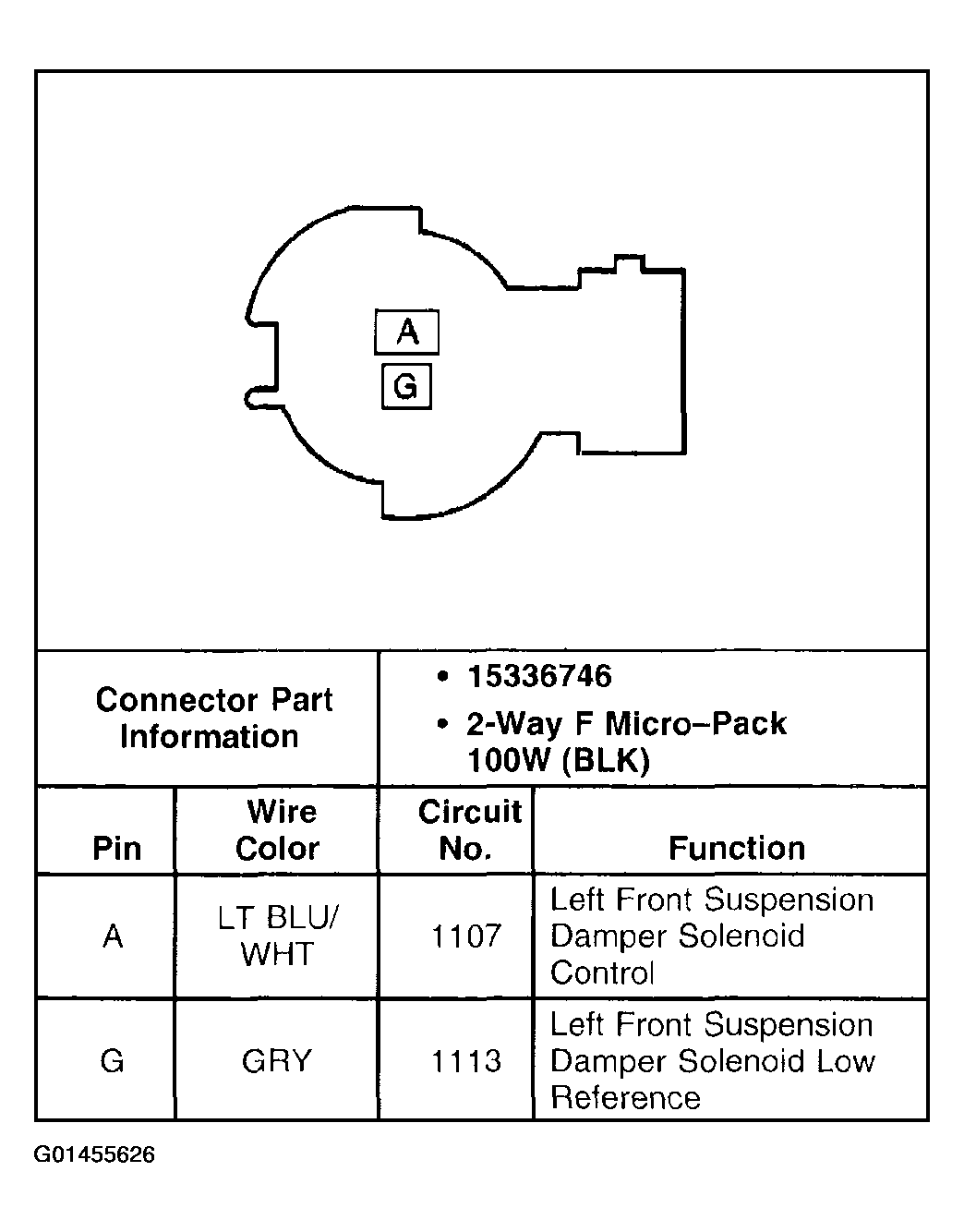

Fig 7: Identifying LF Suspension Damper Solenoid Connector Pins

G01455626

Courtesy of GENERAL MOTORS CORP.

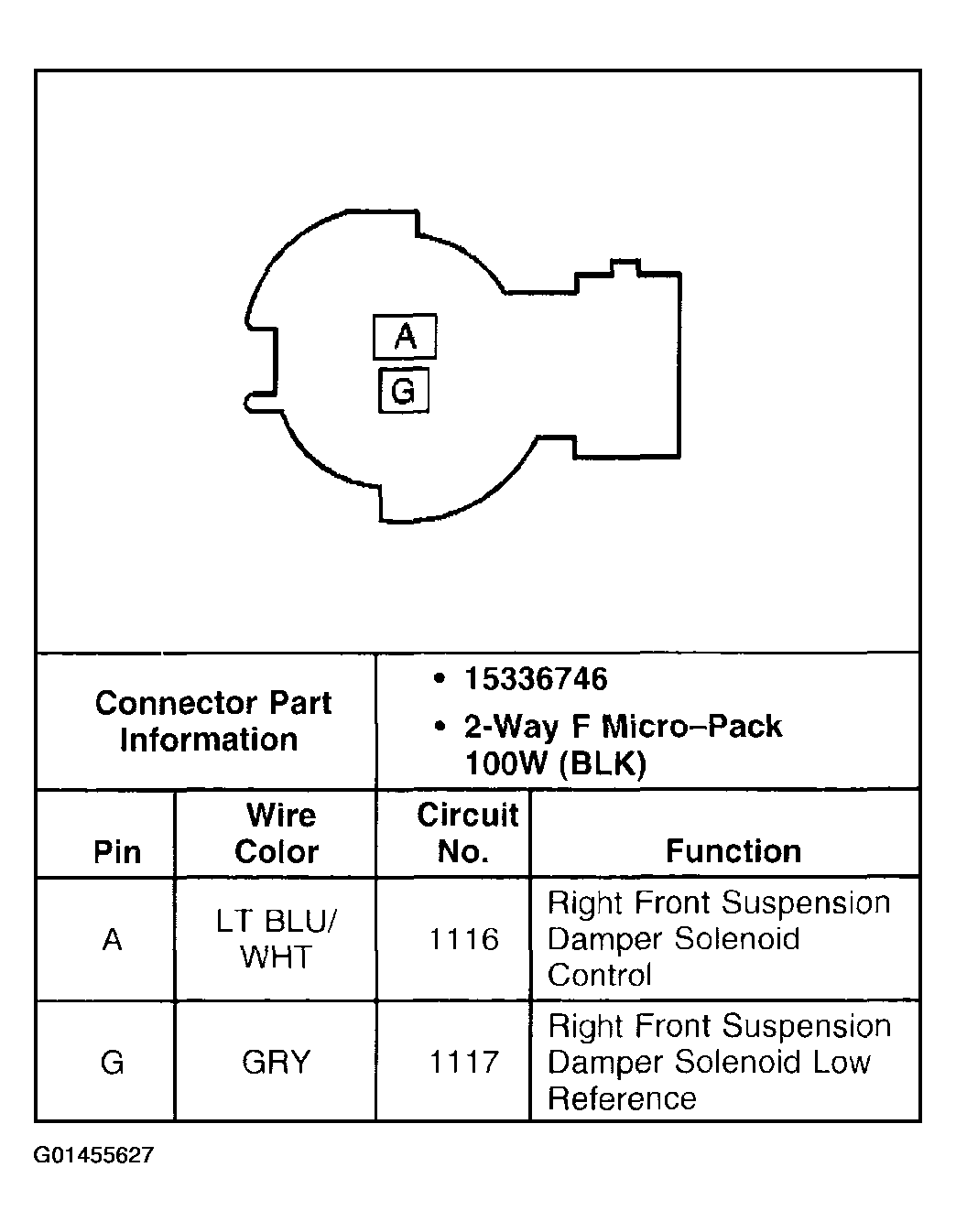

Fig 8: Identifying RF Suspension Damper Solenoid Connector Pins

G01455627

Courtesy of GENERAL MOTORS CORP.

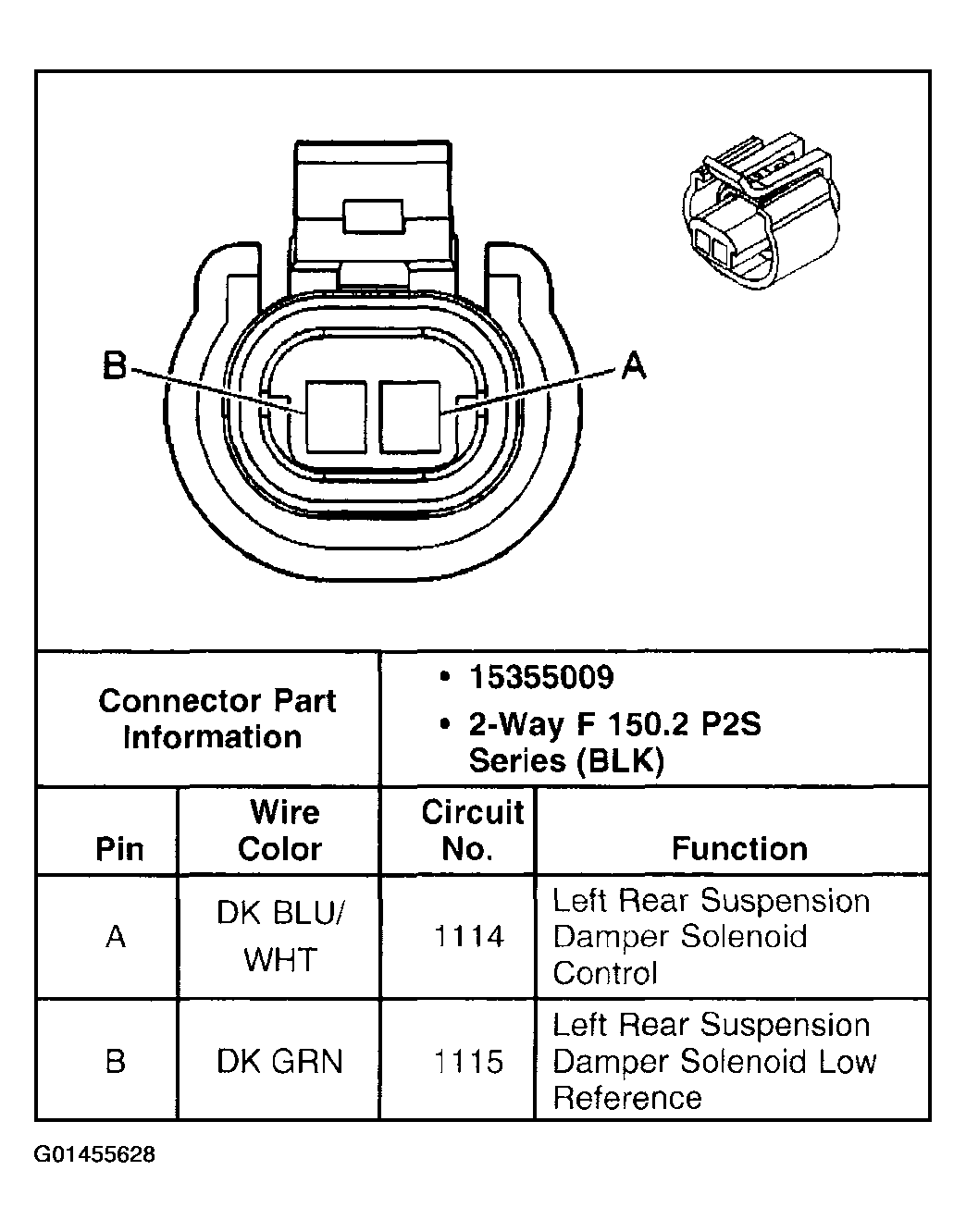

Fig 9: Identifying LR Suspension Damper Solenoid Connector Pins (10 Series)

G01455628

Courtesy of GENERAL MOTORS CORP.

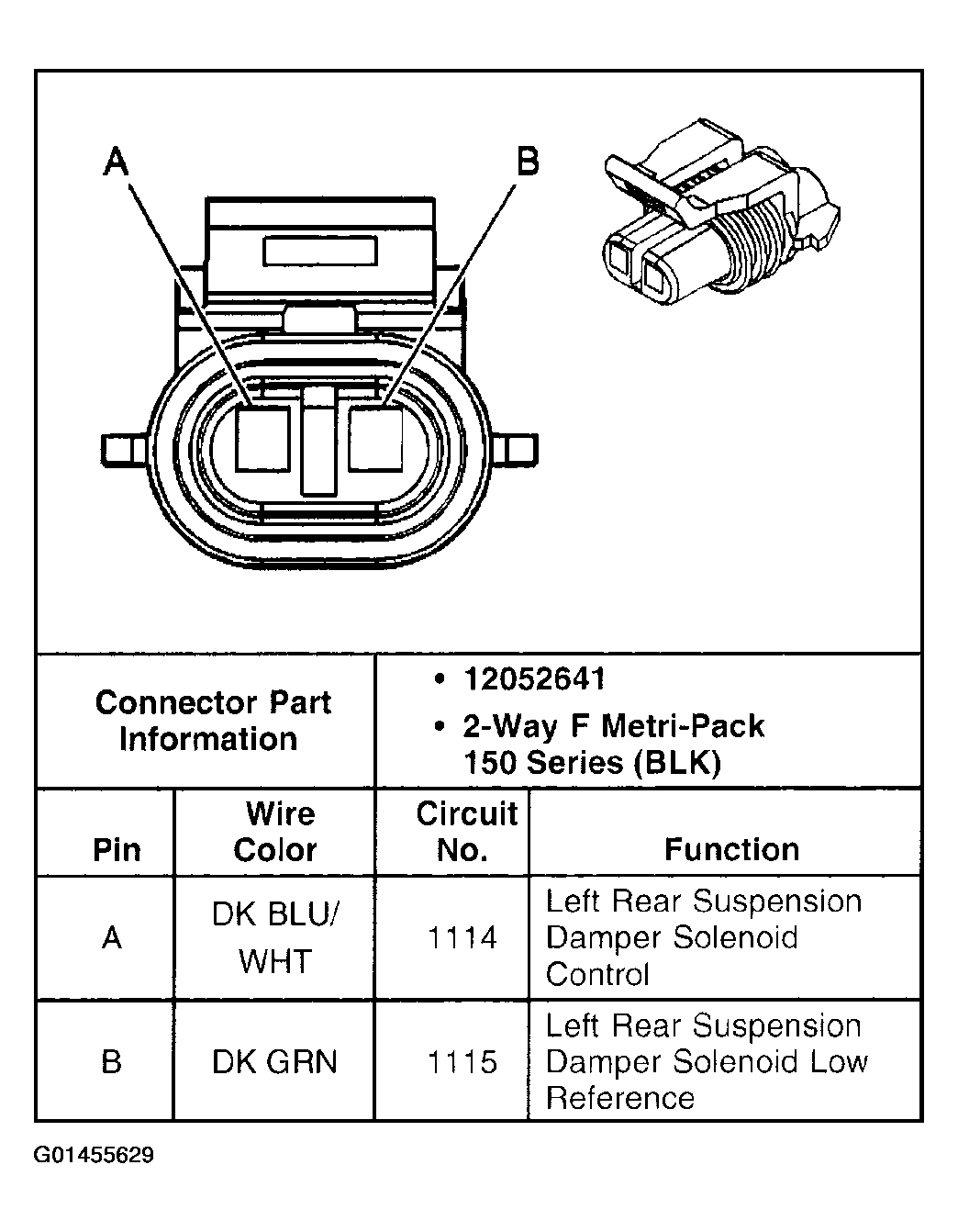

Fig 10: Identifying LR Suspension Damper Solenoid (20 Series)

G01455629

Courtesy of GENERAL MOTORS CORP.

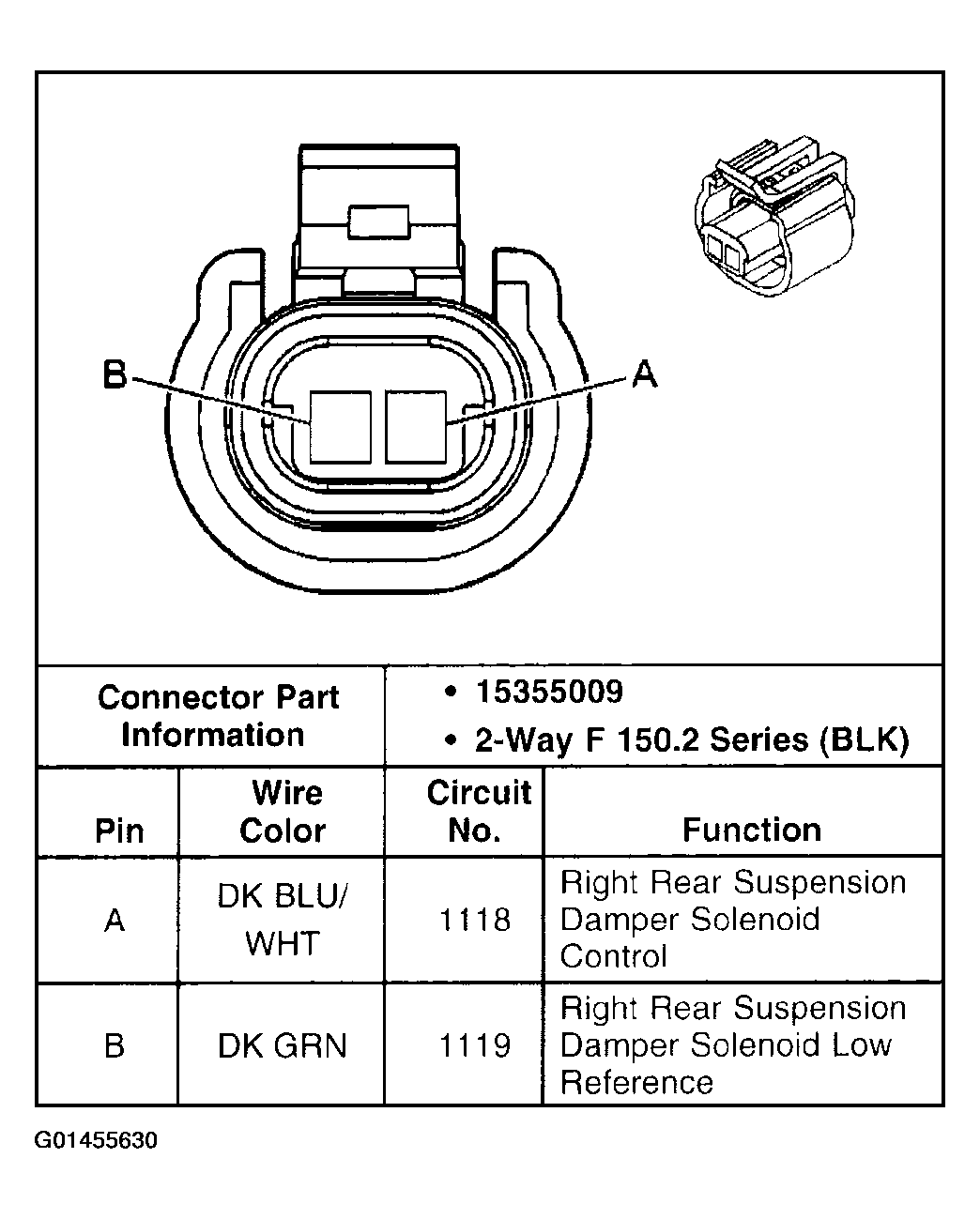

Fig 11: Identifying RR Suspension Damper Solenoid Connector Pins

G01455630

Courtesy of GENERAL MOTORS CORP.

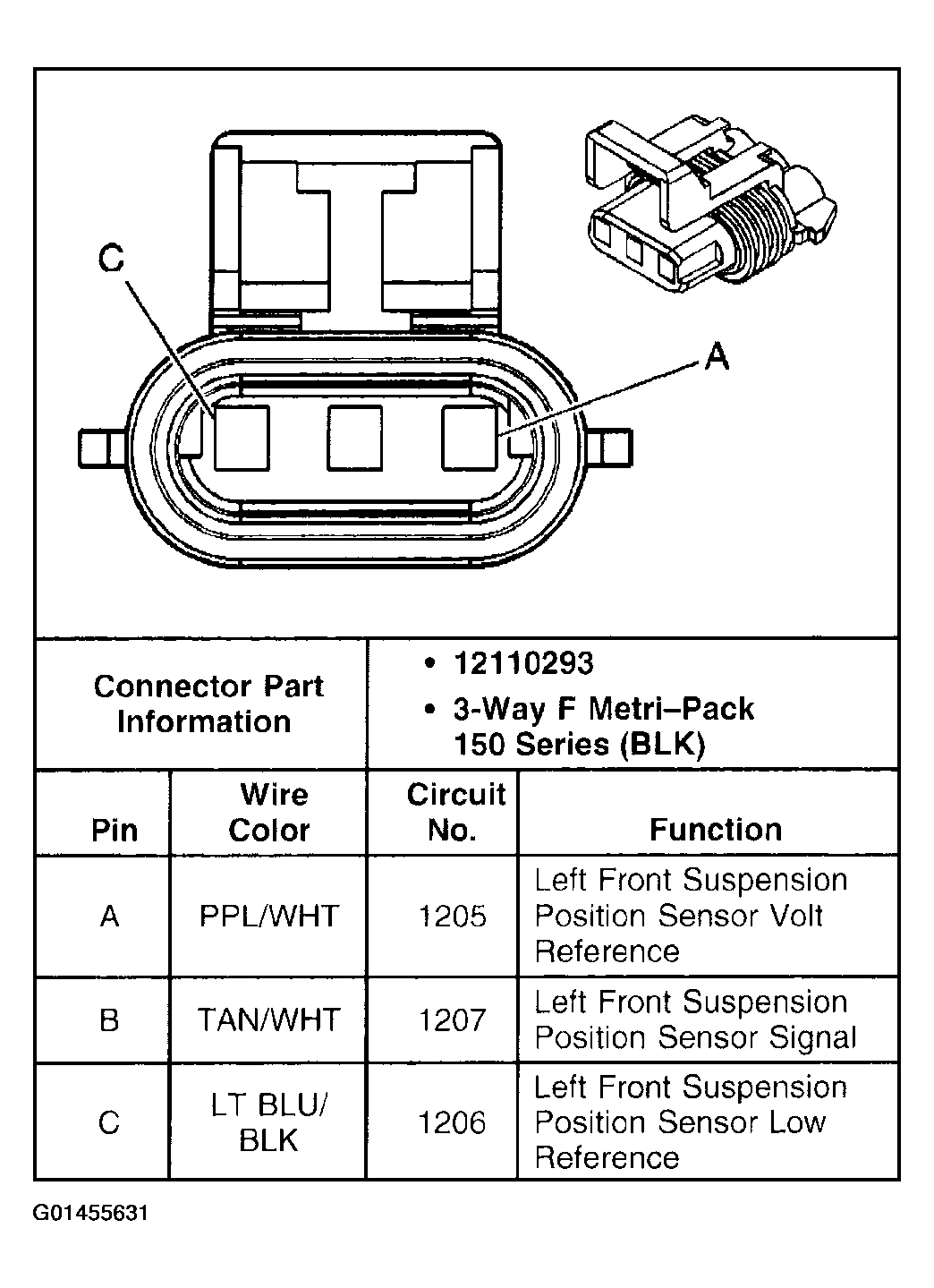

Fig 12: Identifying LF Suspension Position Sensor Connector Pins

G01455631

Courtesy of GENERAL MOTORS CORP.

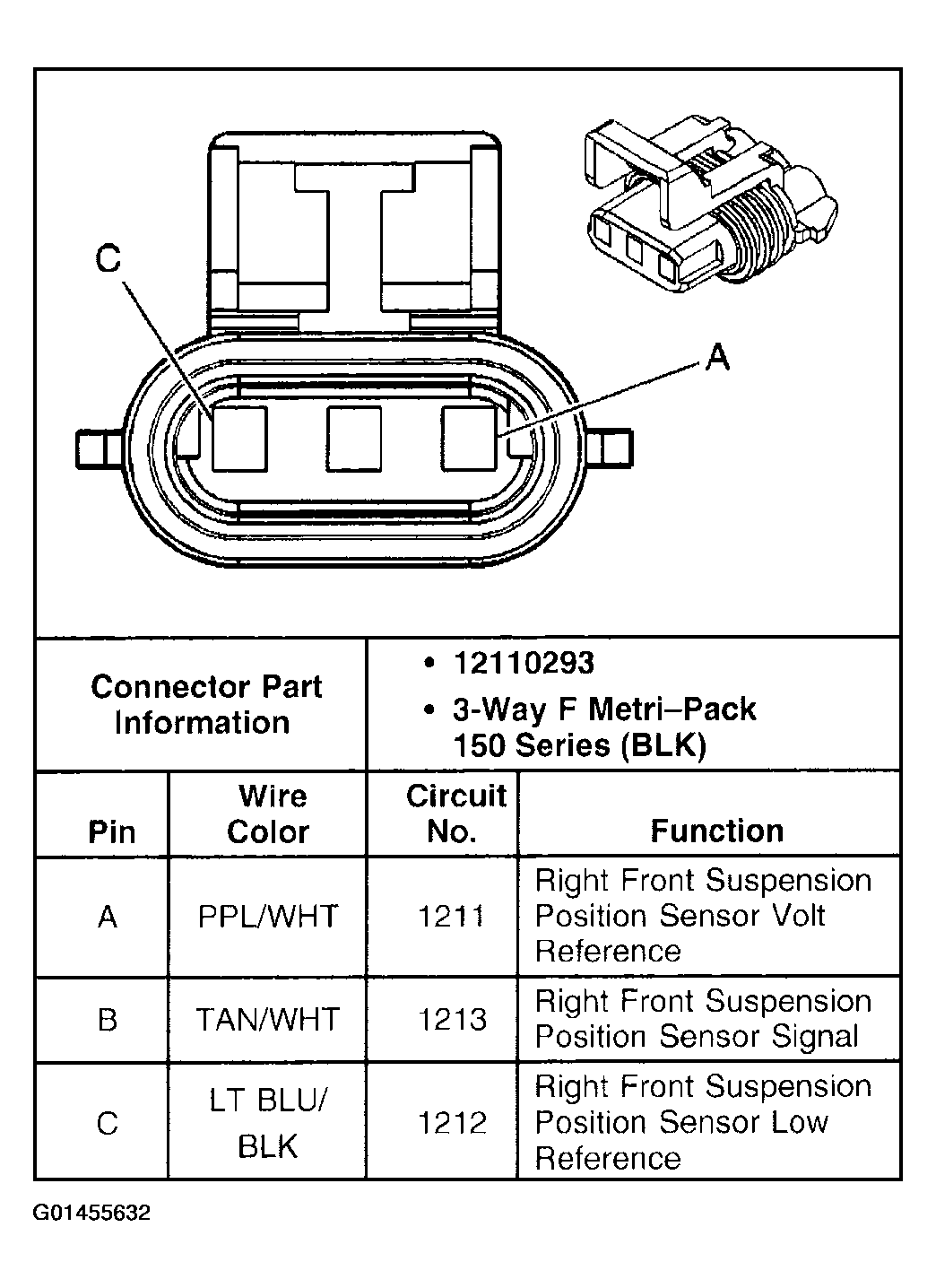

Fig 13: Identifying RF Suspension Position Sensor Connector Pins

G01455632

Courtesy of GENERAL MOTORS CORP.

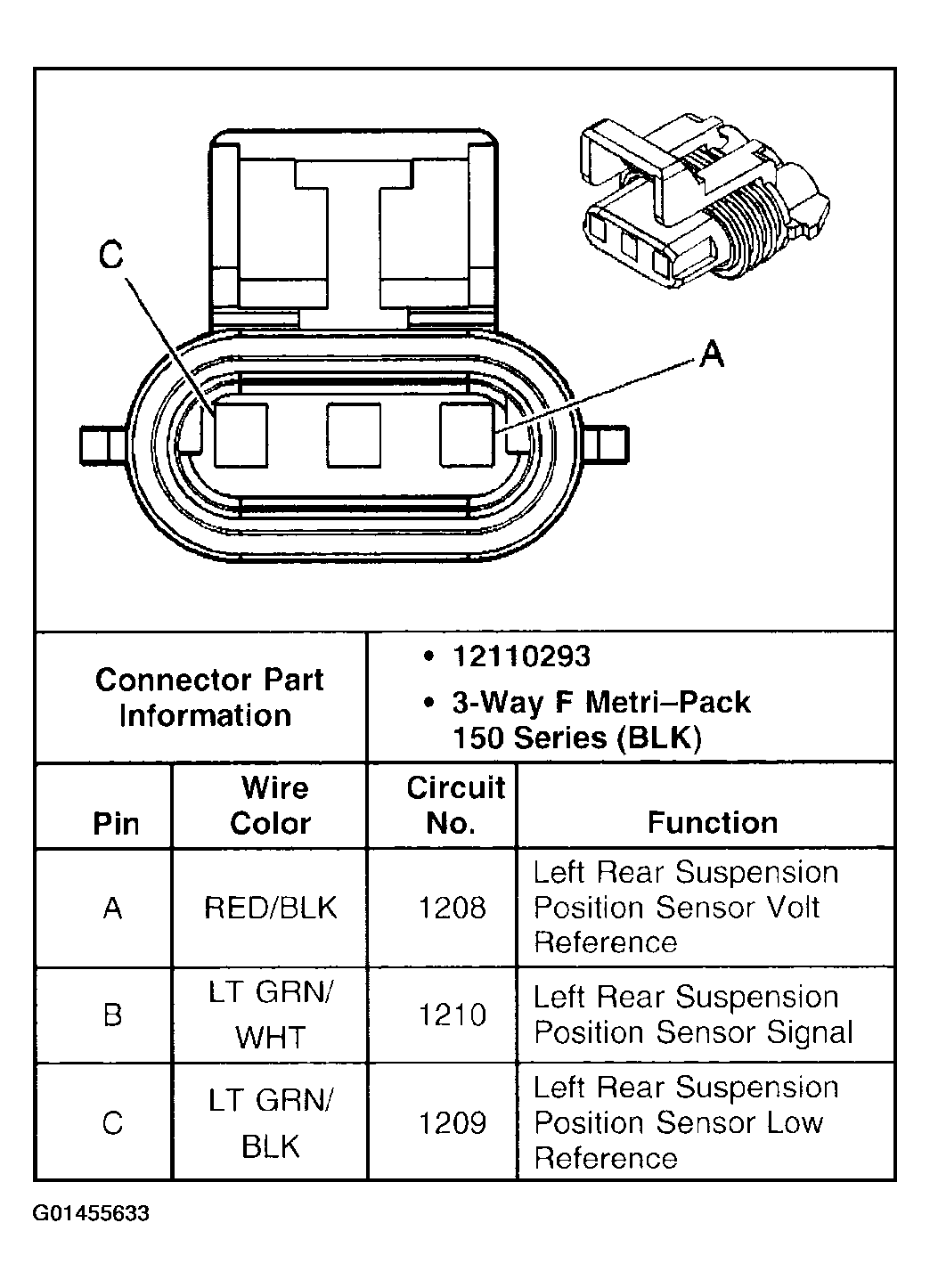

Fig 14: Identifying LR Suspension Position Sensor Connector Pins

G01455633

Courtesy of GENERAL MOTORS CORP.

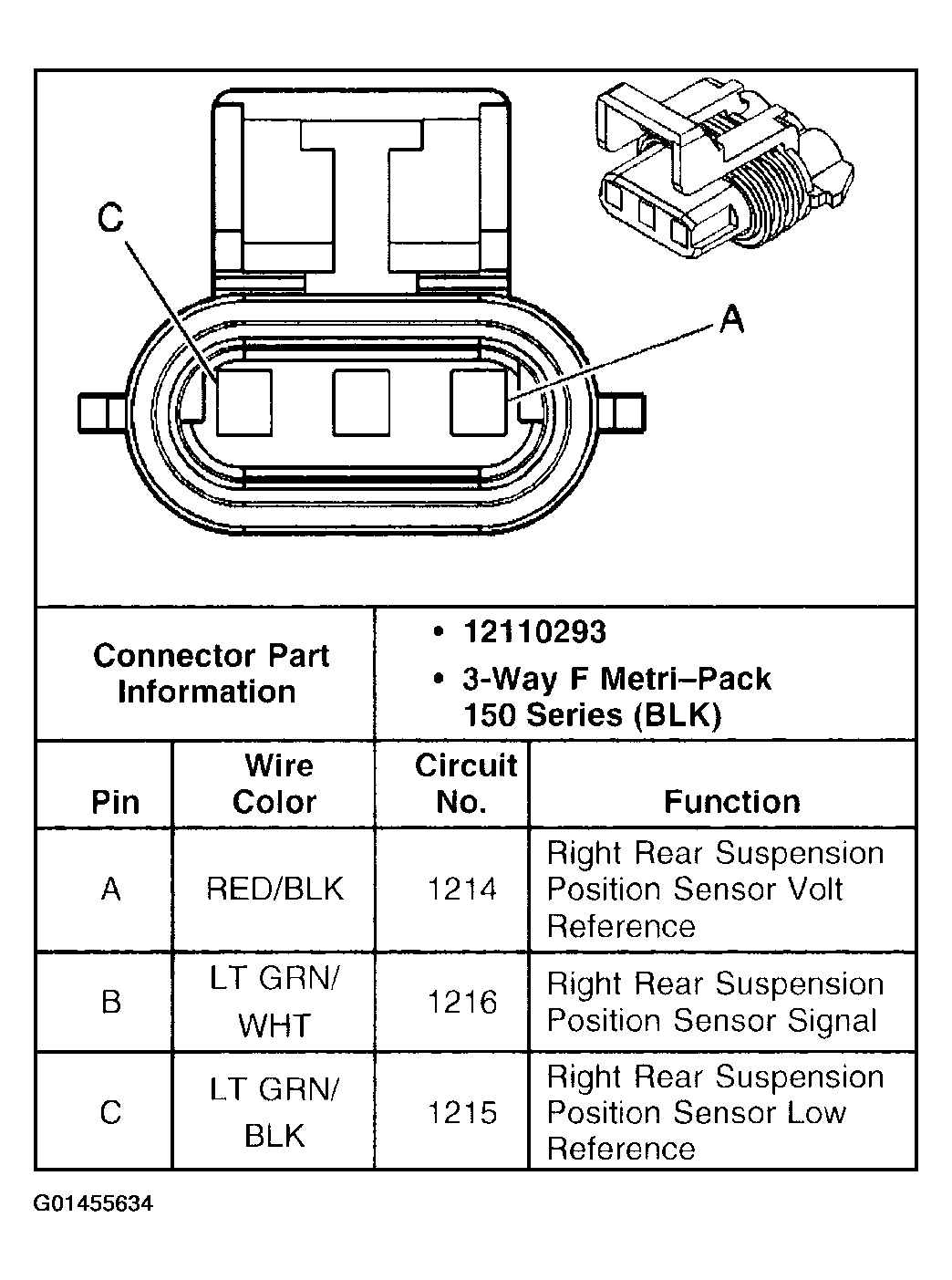

Fig 15: Identifying RR Suspension Position Sensor Connector Pins

G01455634

Courtesy of GENERAL MOTORS CORP.
