Suspension Controls Component Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

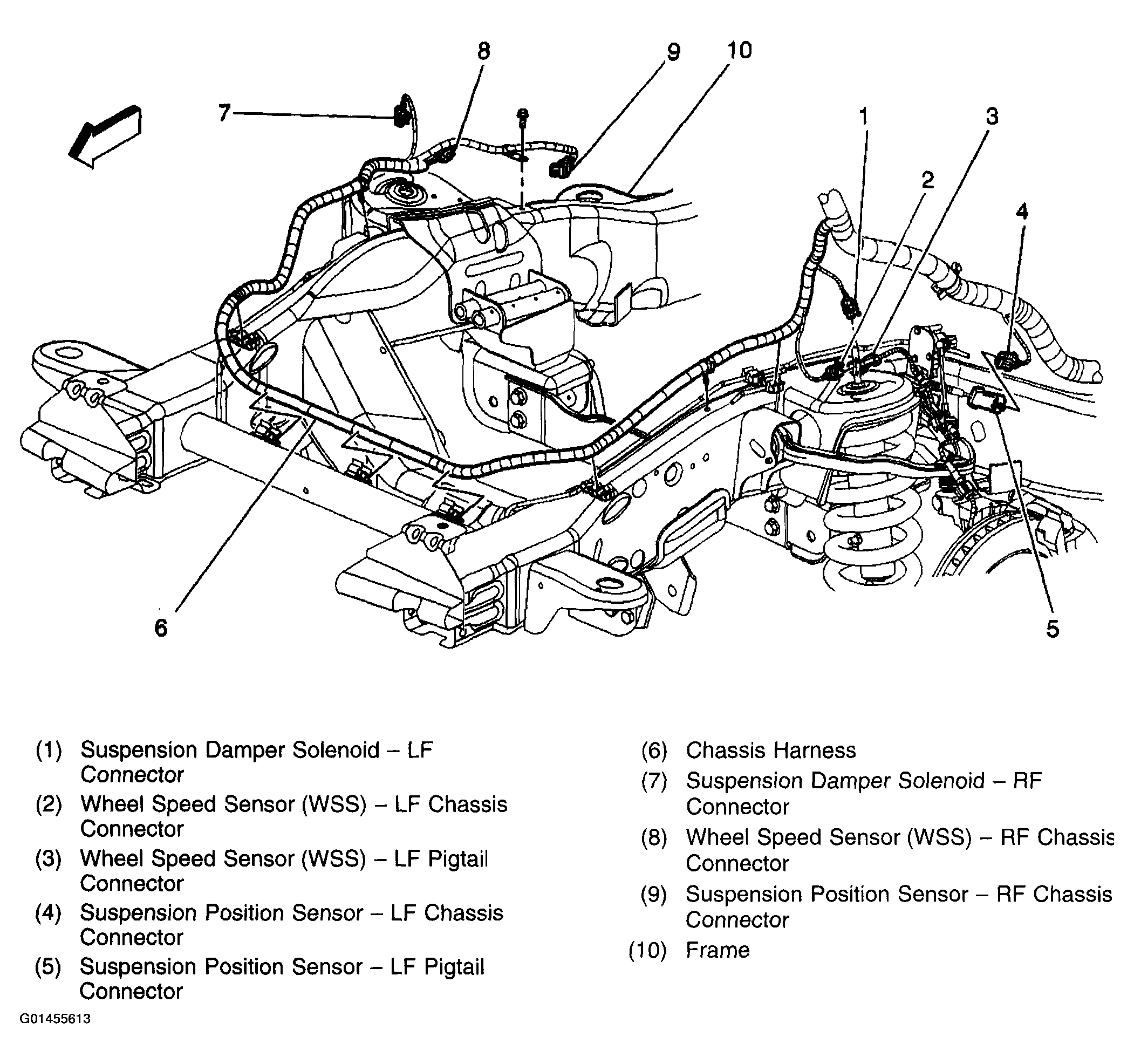

Fig 1: Identifying Components Of Front Of Frame

G01455613

Courtesy of GENERAL MOTORS CORP.

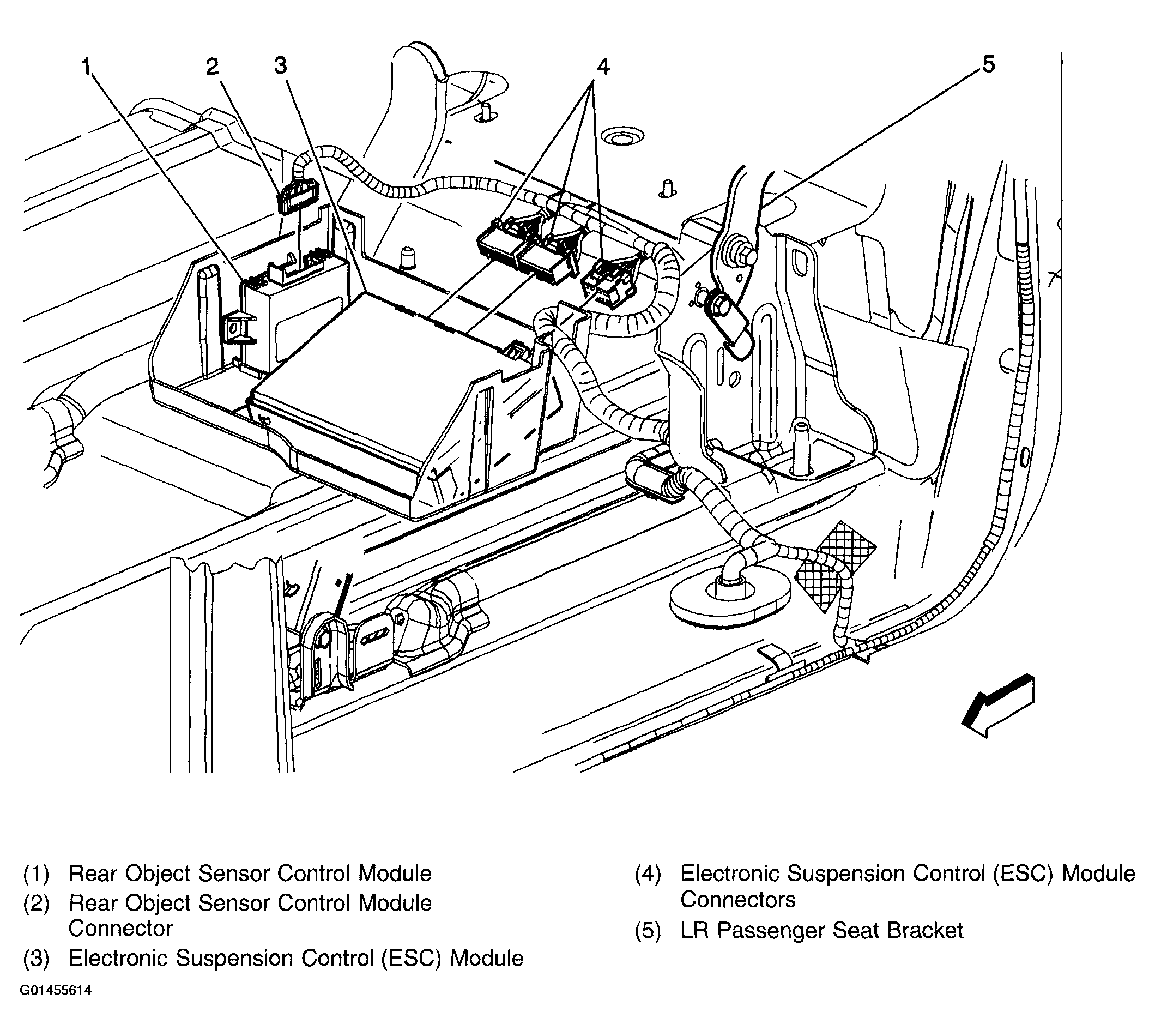

Fig 2: Identifying Components Of LR Of Passenger Compartment (Escalade EXT)

G01455614

Courtesy of GENERAL MOTORS CORP.

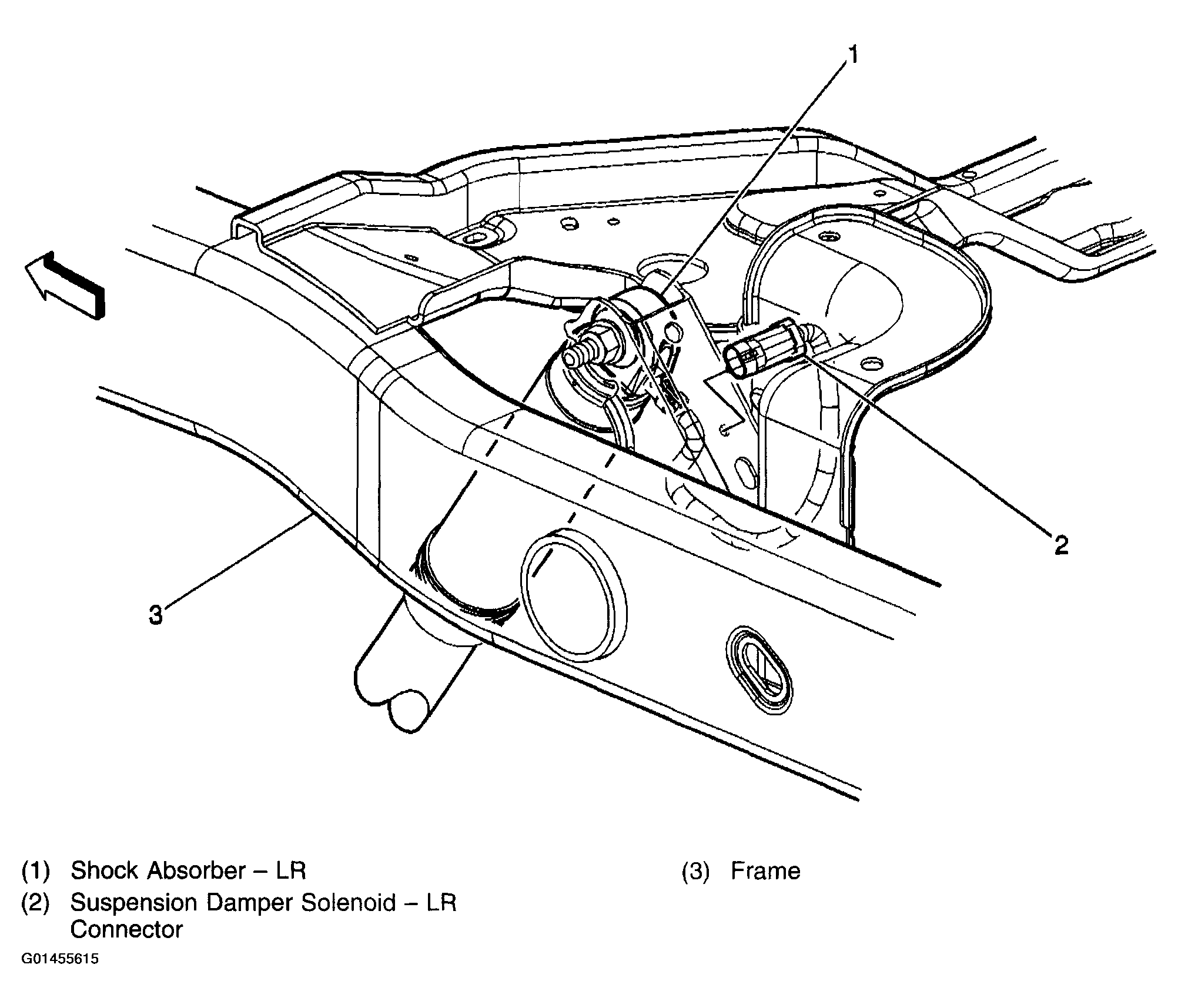

Fig 3: Identifying LR Suspension Components (2500 Series)

G01455615

Courtesy of GENERAL MOTORS CORP.

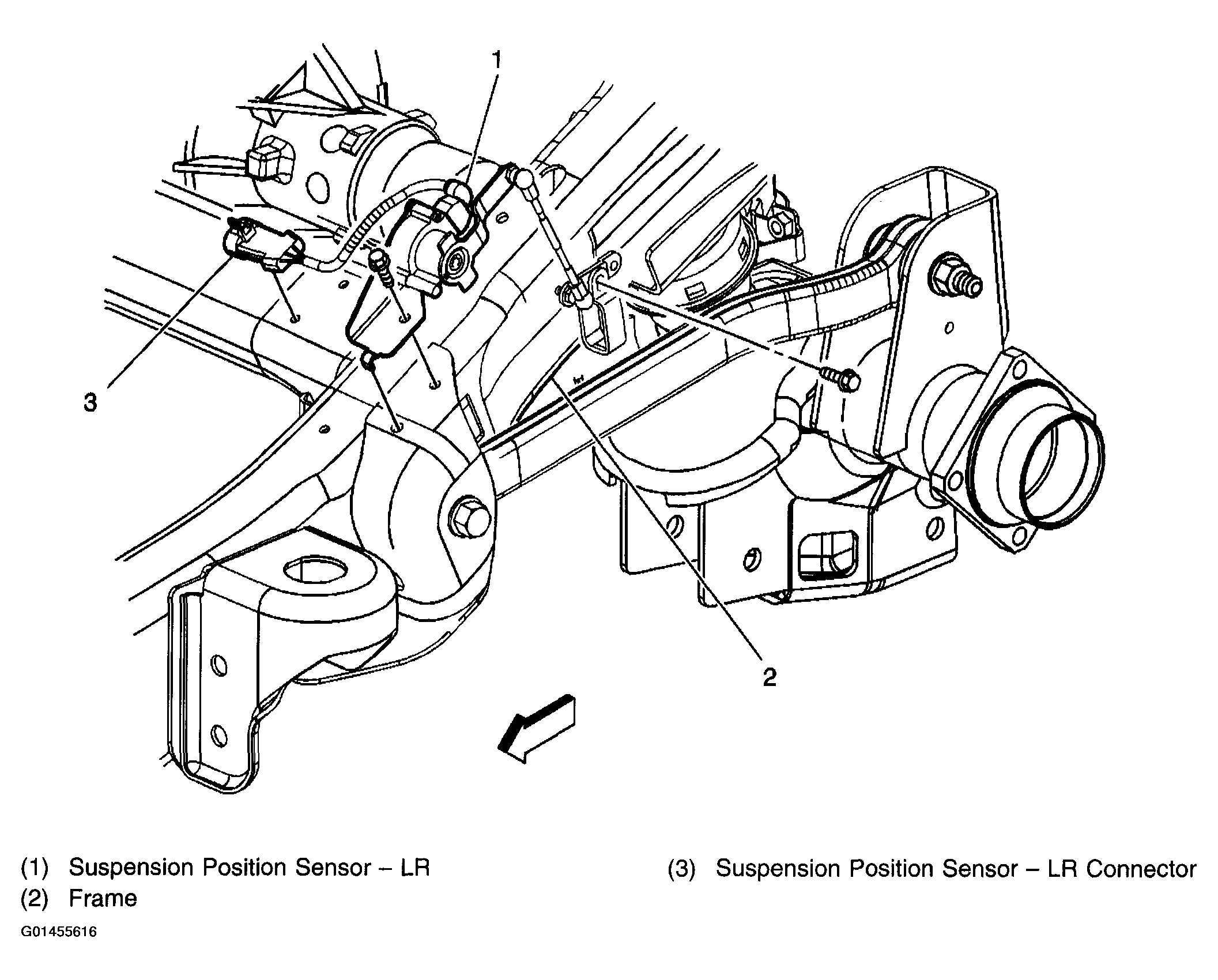

Fig 4: Identifying LR Suspension Components (1500 Series)

G01455616

Courtesy of GENERAL MOTORS CORP.

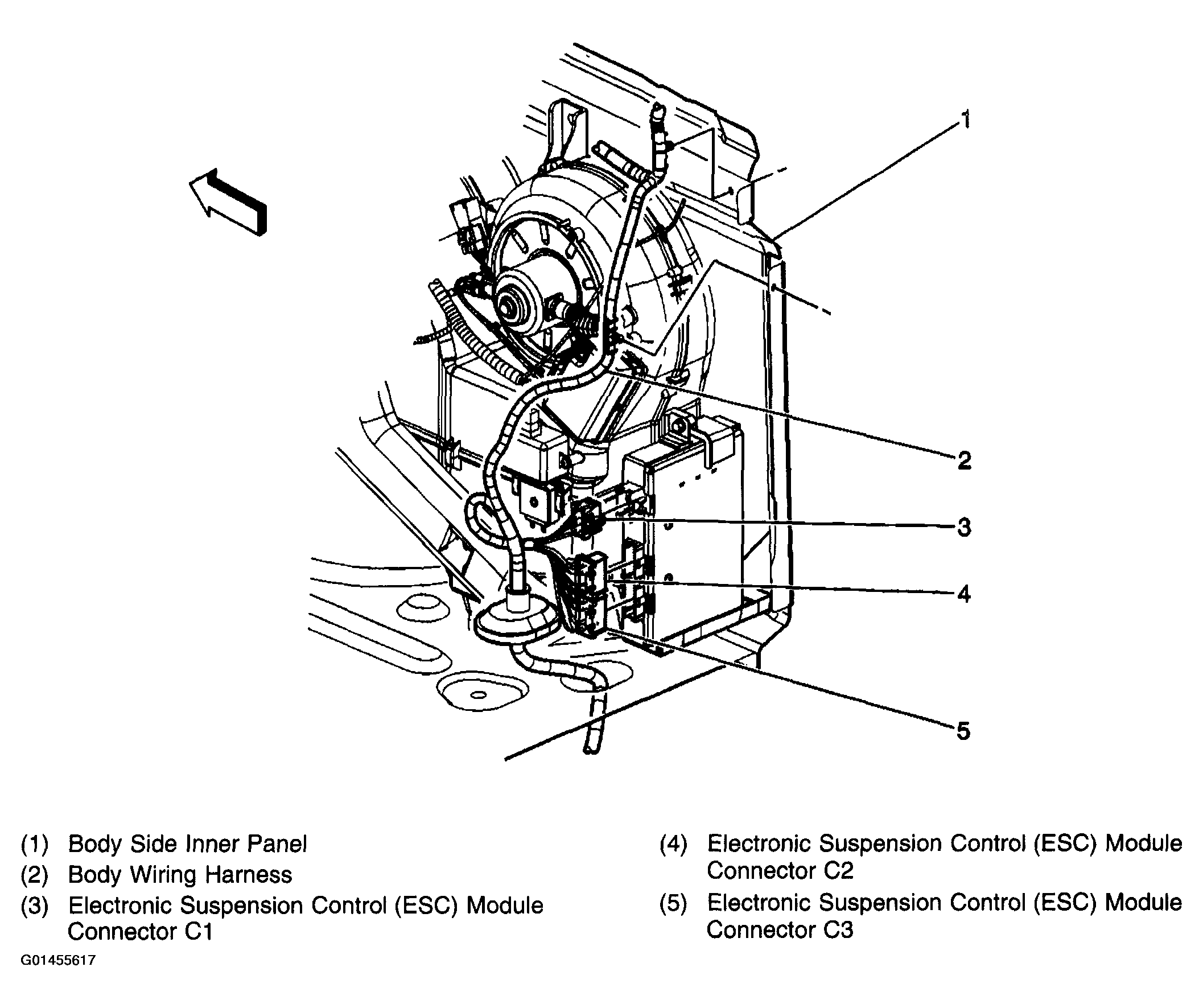

Fig 5: Identifying Components Of RR Of Passenger Compartment (Except Avalanche/Escalade EXT)

G01455617

Courtesy of GENERAL MOTORS CORP.

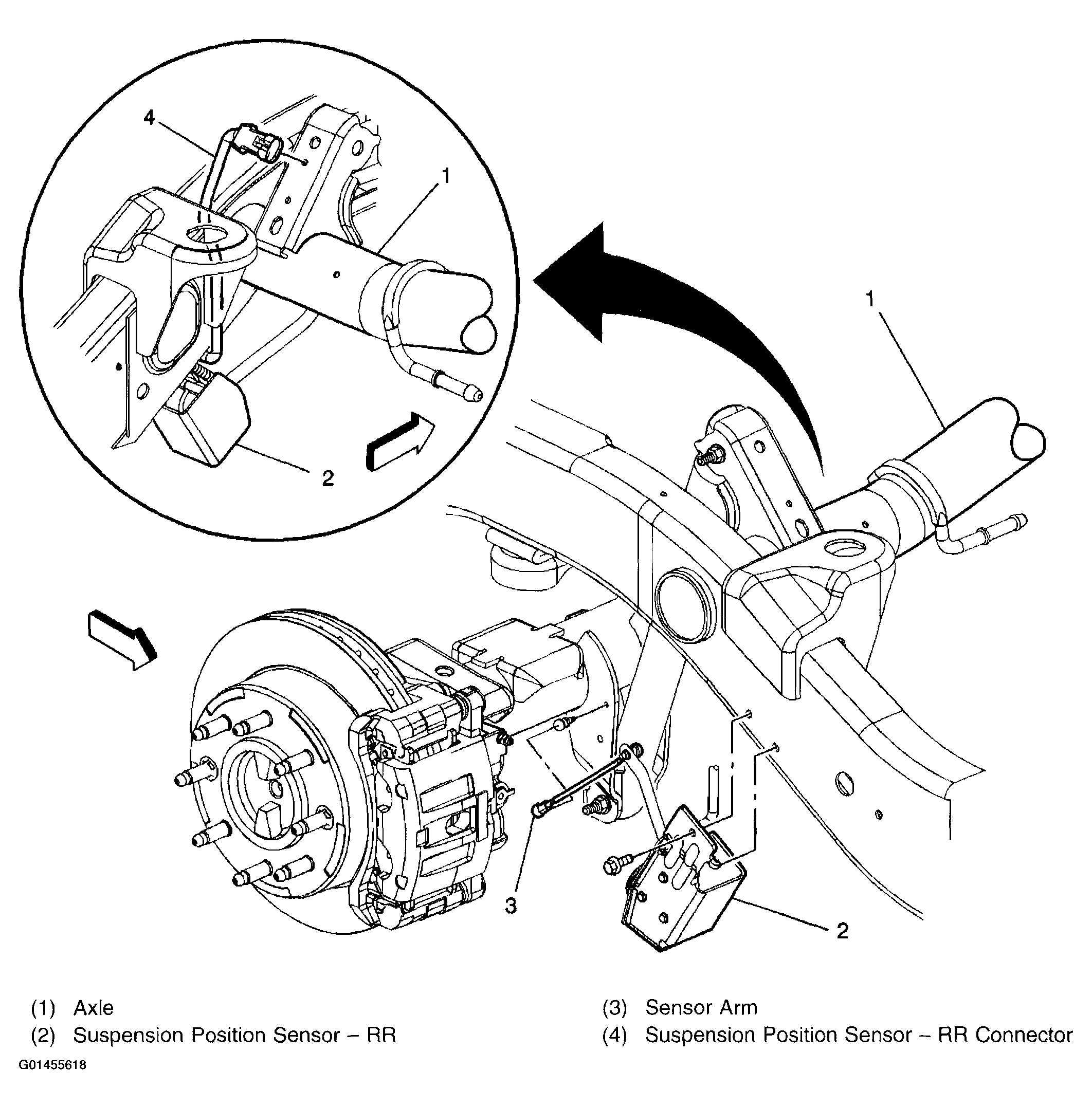

Fig 6: Identifying RR Suspension Components (2500 Series)

G01455618

Courtesy of GENERAL MOTORS CORP.

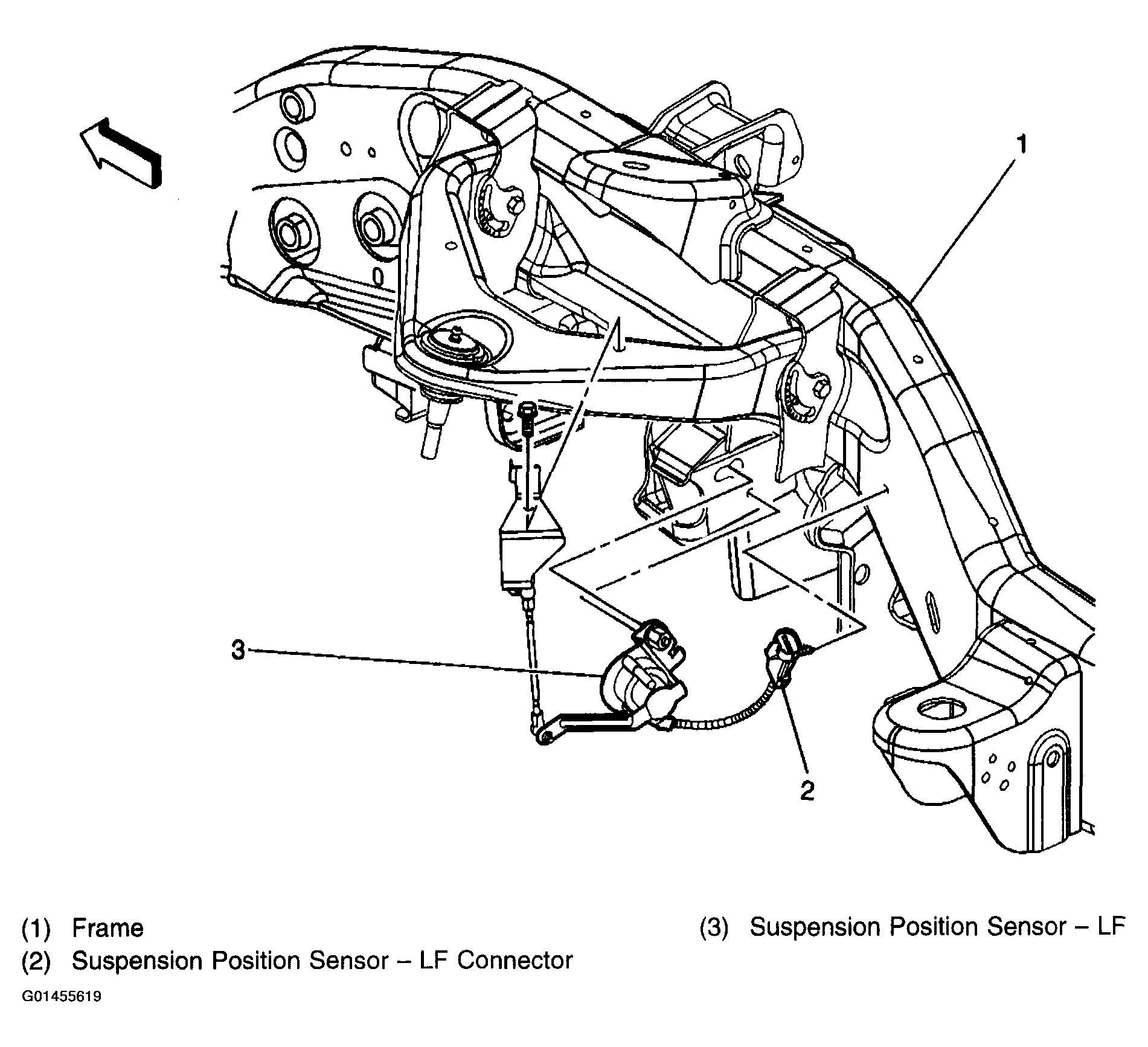

Fig 7: Identifying LF Suspension Position Sensor Components (Suburban/Yukon XL)

G01455619

Courtesy of GENERAL MOTORS CORP.
