THERMO Element: Removal

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan. See DRAINING & REFILLING  under LUBRICATION.
  2. Remove the thermo element pins and washers (120 and 123). See Fig 1 .
  3. Remove the thermo element (121) and the thermo element plate (122).

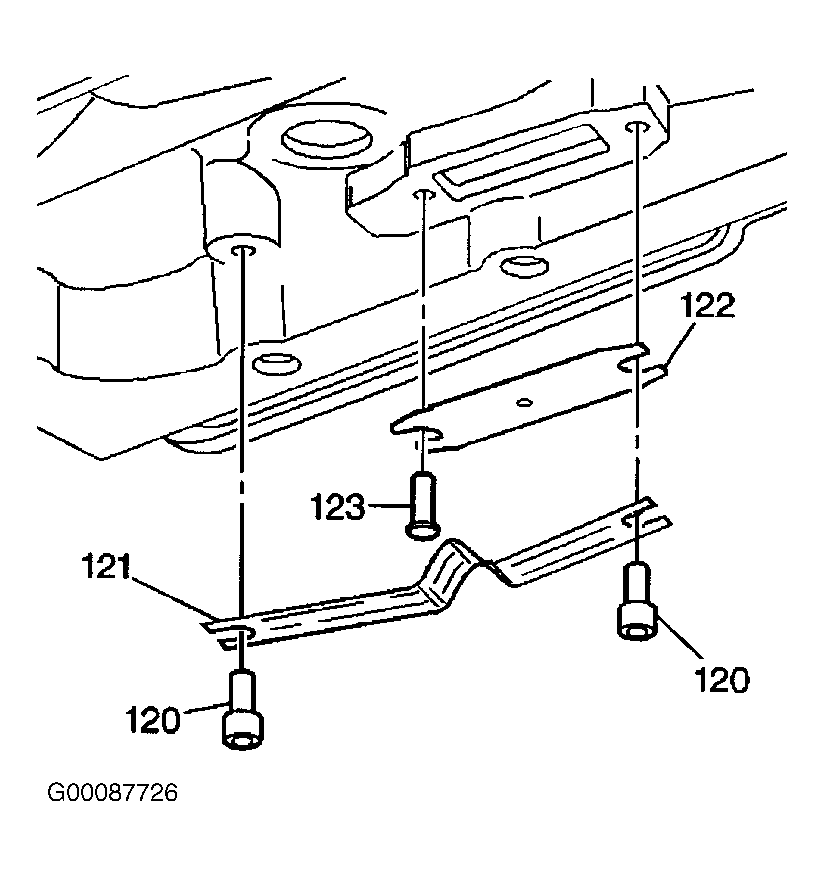

Fig 1: Removing & Installing Thermo Element
G00087726Courtesy of GENERAL MOTORS CORP.
