Oil Pump: Installation

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

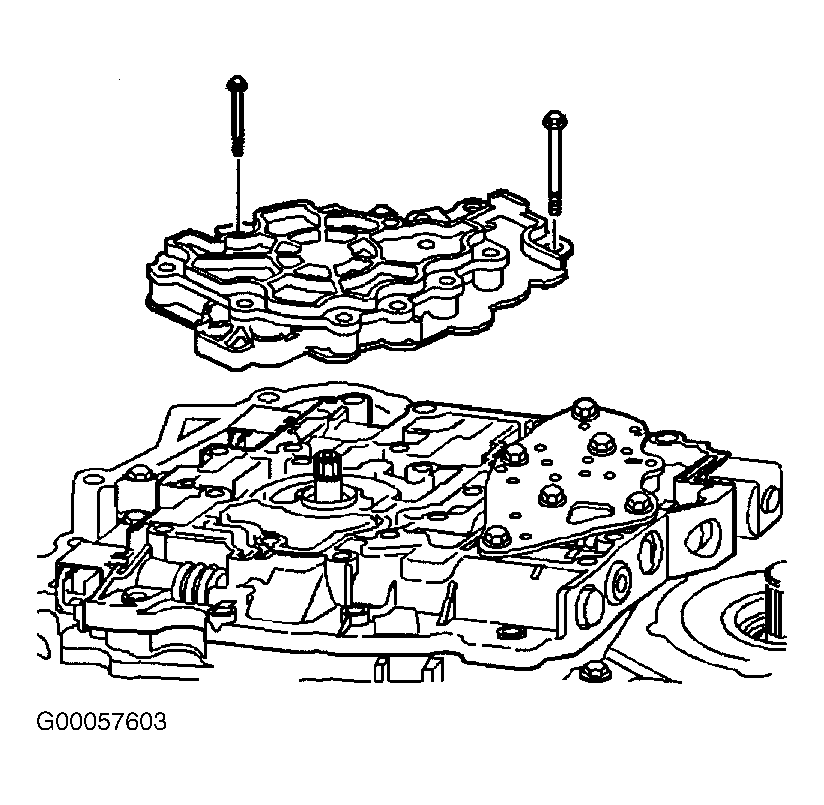

Install the oil pump to the valve body. See Figure . Install the oil pump bolts (205-207). See Figure . Tighten the bolts as follows:

M6 X 1.0 X 20 - 70 INCH lbs. (8 N.m)
M6 X 1.0 X 85 - 106 INCH lbs. (12 N.m)
M6 X 1.0 X 95 - 106 INCH lbs. (12 N.m).

Install the case side cover. See CASE SIDE COVER .
