Accumulator & 2-1 Manual Servo: Installation

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The seal must be installed as shown. If it is not installed, or is installed in the wrong location, the transaxle will operate only in reverse.

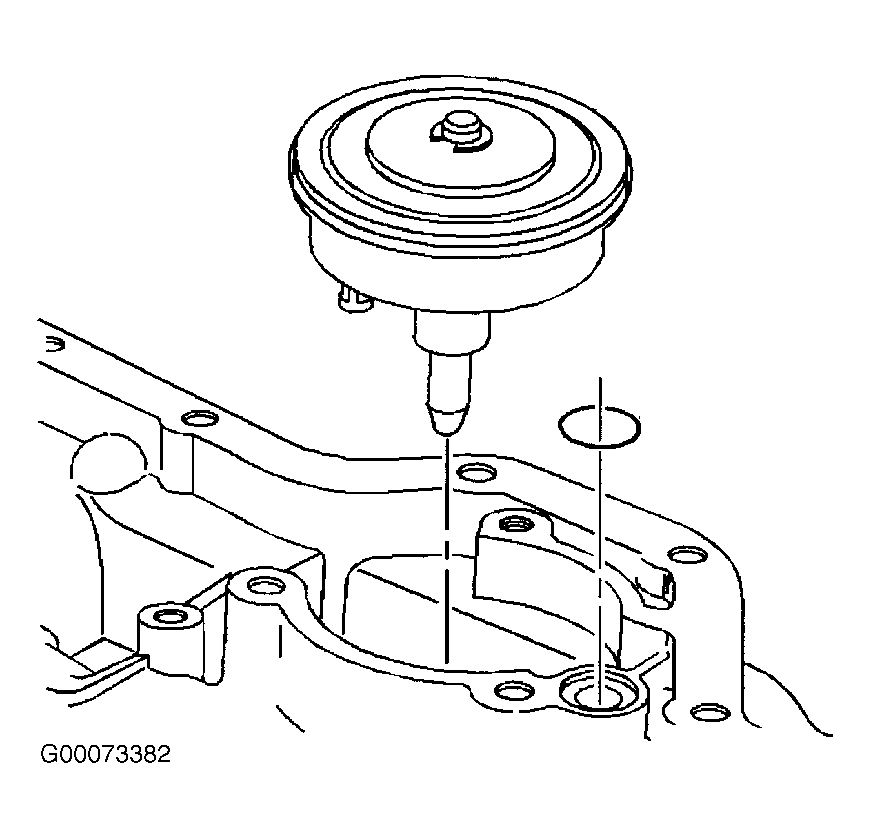

  1. Install the 2-1 manual servo piston assembly seal. Install the 2-1 manual servo piston assembly and the filter. Install the 2-1 manual servo piston cover bolts. See Figure .

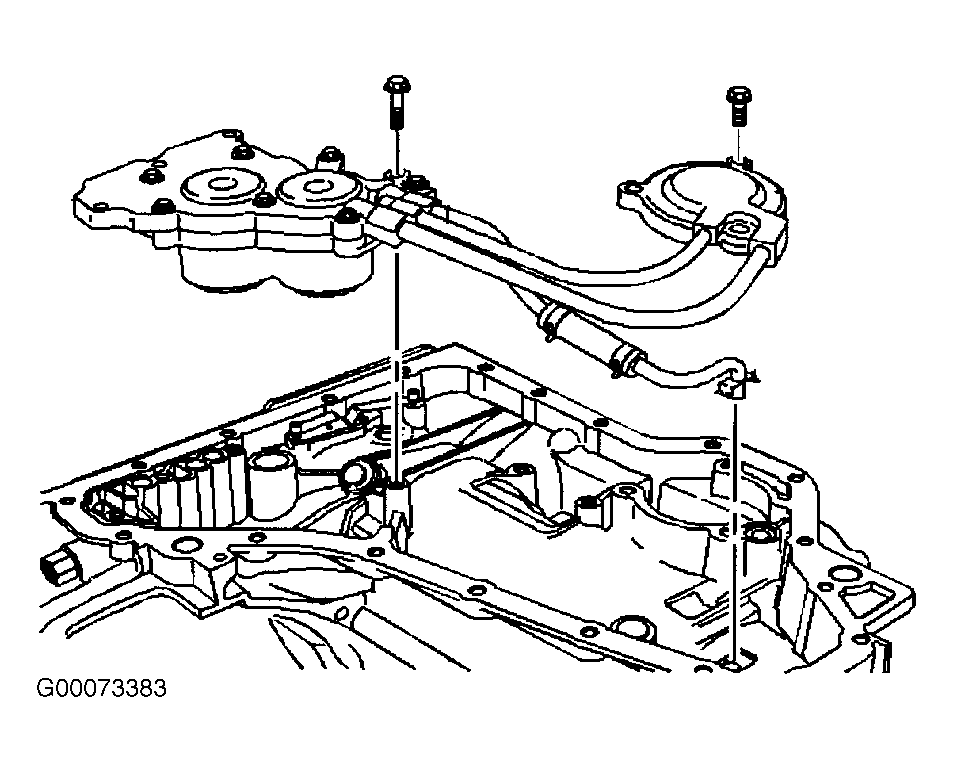

  2. Install the accumulator assembly. See Figure . Install the manual 2-1 band servo cover bolts. Tighten the manual 2-1 band servo cover bolts to specification. Install the accumulator attaching bolts. Tighten the accumulator attaching bolts to specification. See TORQUE SPECIFICATIONS  .
  3. Install the new filter seal. Install the filter. Install the oil pan. See DRAINING & REFILLING  under LUBRICATION. Lower the vehicle. Fill transaxle with appropriate fluid to proper level. See LUBRICATION  .
