Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Support the vehicle with suitable safety stands. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the wheel nuts from the tire and wheel.
  3. Mark the location of the tire and wheel to the hub assembly.
  4. Remove the tire and wheel from the vehicle.
  5. Clean the wheel nuts, studs and the wheel and rotor mounting surfaces.

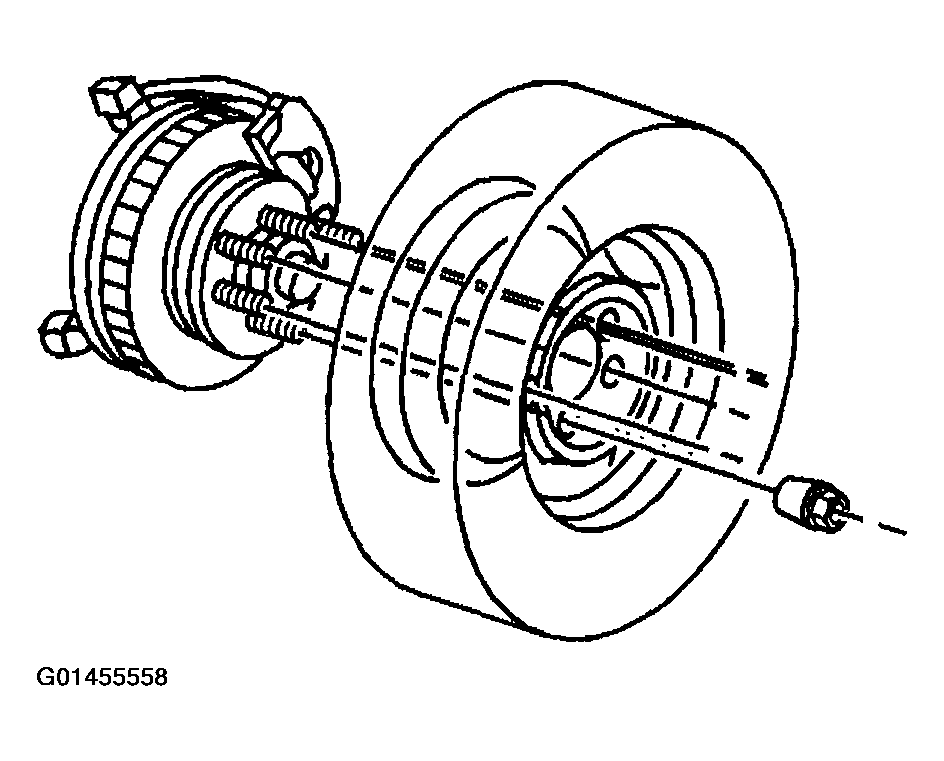

    Fig 1: Removing Tire And Wheel
    G01455558Courtesy of GENERAL MOTORS CORP.
