Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Support the rear axle.
  3. Remove the park brake cable retaining clips to remove the parking brake cable from the track bar.
    Fig 1: Removing Park Brake Cable From Track Bar
    G01455543Courtesy of GENERAL MOTORS CORP.
  4. Remove the track bar retaining nuts.
  5. Remove the track bar retaining bolts.
  6. Remove the track bar from the vehicle.

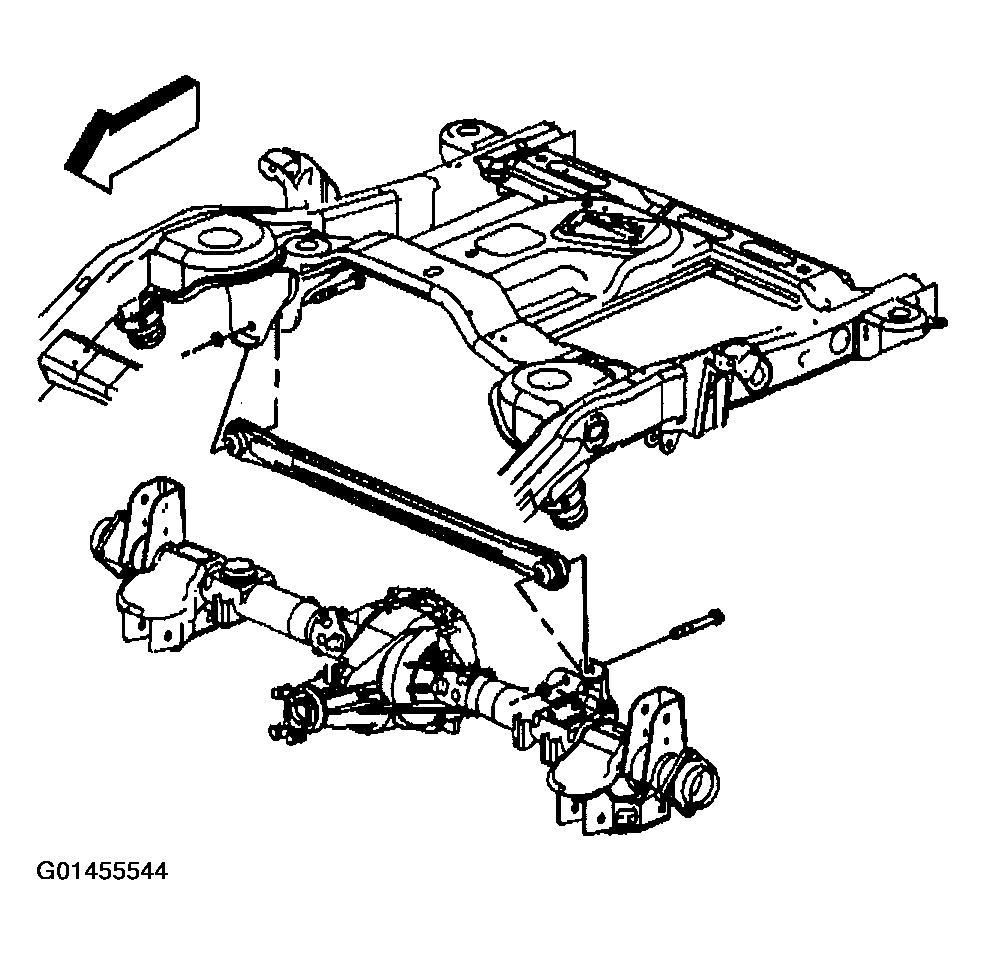

    Fig 2: Removing Track Bar
    G01455544Courtesy of GENERAL MOTORS CORP.
