Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the track bar to the vehicle.
  2. Install the track bar retaining bolts.
    NOTE: Refer to Fastener Notice on page P-9 in Cautions and Notices.

    Important:  Do not tighten the bolts unless the suspension is at the curb height position.

  3. Install the track bar retaining nuts.

    Tighten

    Tighten the bolts to 105 N.m (77 lb ft).

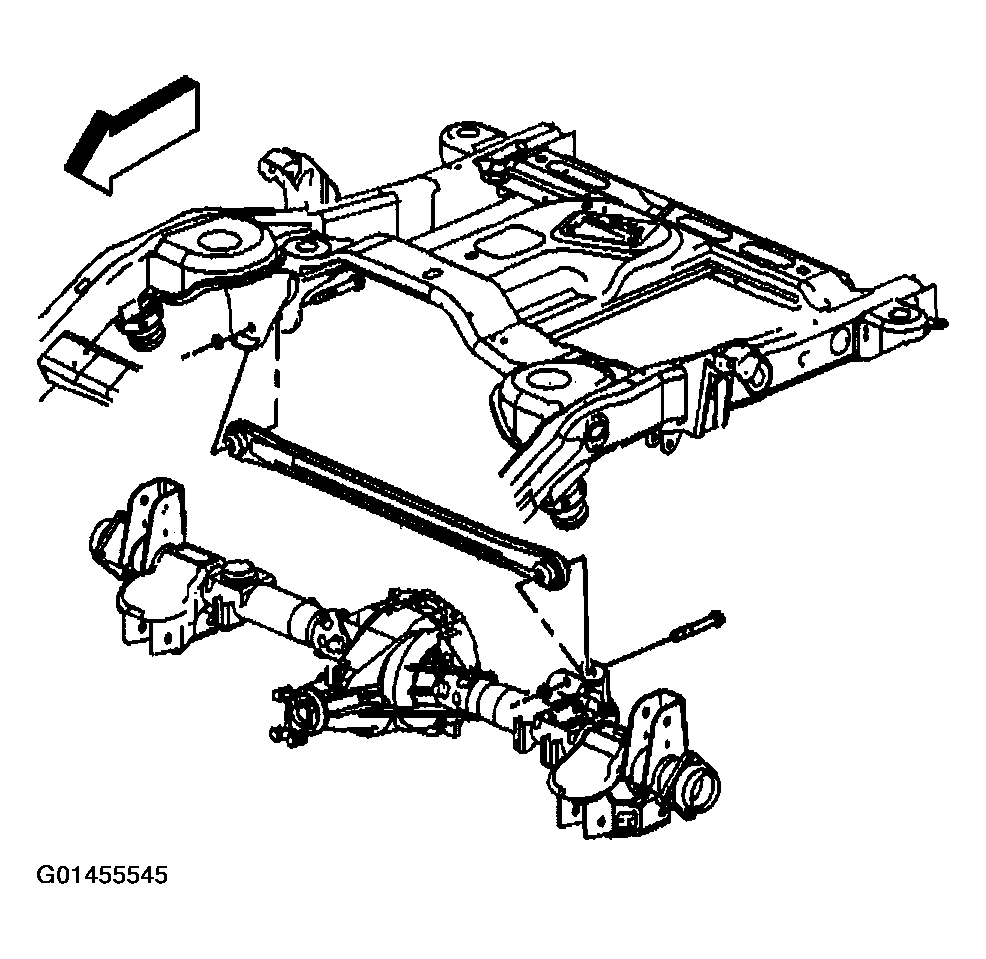

    Fig 1: Installing Track Bar
    G01455545Courtesy of GENERAL MOTORS CORP.
  4. Install the parking brake cable and retaining clips to the track bar.
  5. Remove the rear axle support.
  6. Lower the vehicle.
    Fig 2: Installing Parking Brake Cable To Track Bar
    G01455546Courtesy of GENERAL MOTORS CORP.
