Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the stabilizer shaft link nut from the ball stud.

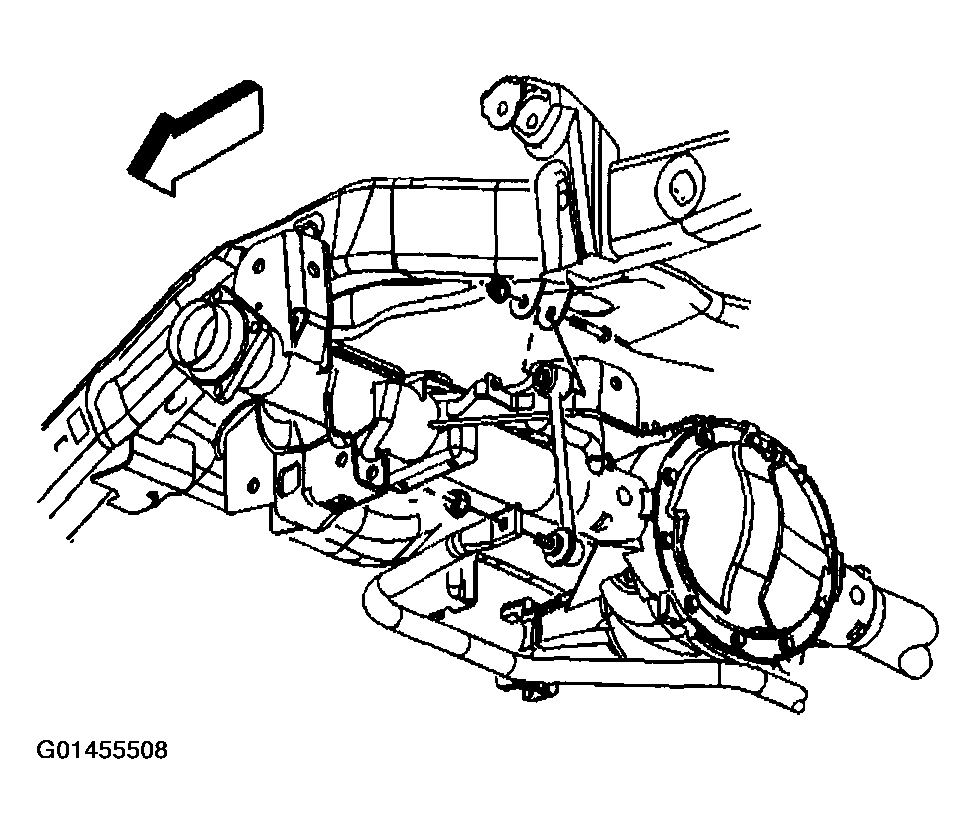

    Fig 1: Removing Stabilizer Shaft Link Nut From Ball Stud
    G01455508Courtesy of GENERAL MOTORS CORP.
  3. Remove the stabilizer shaft insulator bracket mounting bolts.
  4. Remove the stabilizer shaft.
  5. Remove the stabilizer shaft insulators brackets.
  6. Remove the stabilizer shaft insulators.

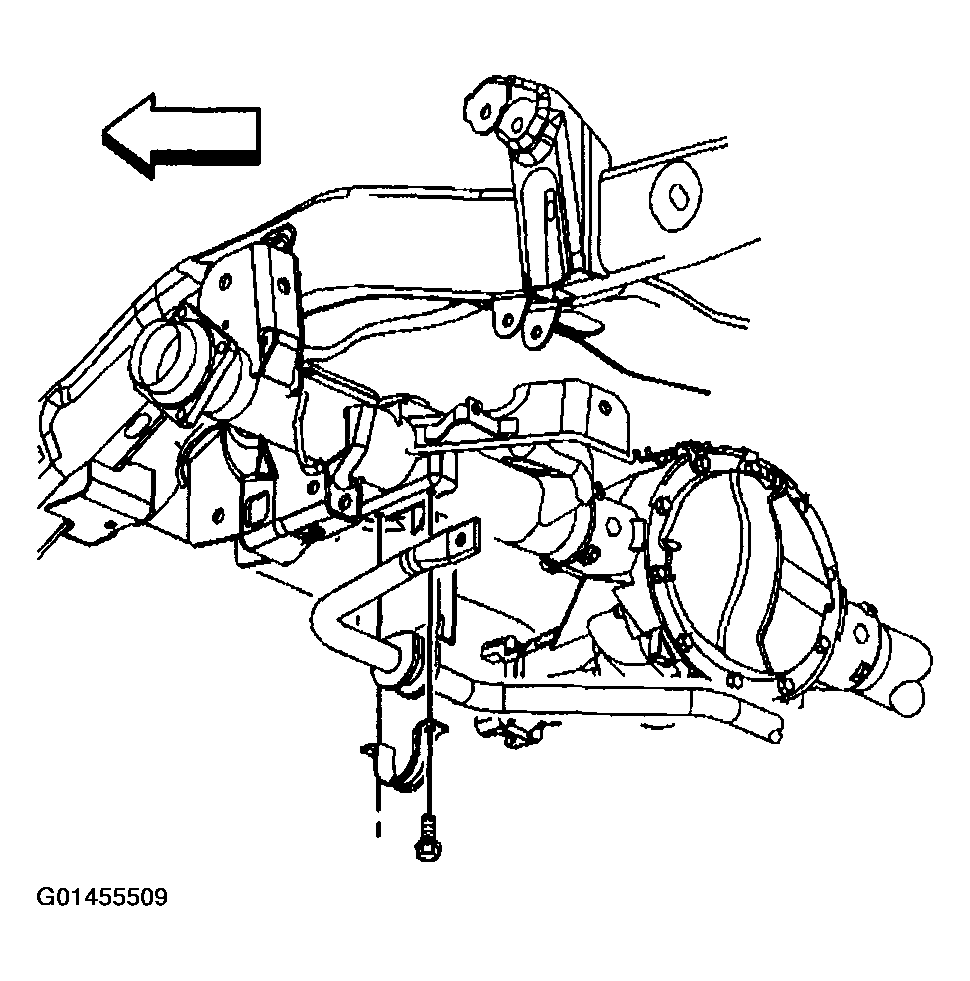

    Fig 2: Removing Stabilizer Shaft
    G01455509Courtesy of GENERAL MOTORS CORP.
