Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Disconnect the electrical connector and air line if equipped with electronic suspension control (ESC).
  3. Support the rear axle.
  4. Disconnect the ESC sensor, if equipped. Refer to REAR POSITION SENSOR REPLACEMENT--ELECTRONIC SUSPENSION--LEFT (15 SERIES) or REAR POSITION SENSOR REPLACEMENT--ELECTRONIC SUSPENSION--LEFT (25 SERIES) or REAR POSITION SENSOR REPLACEMENT--ELECTRONIC SUSPENSION--RIGHT in Electronic Suspension Control (ESC).

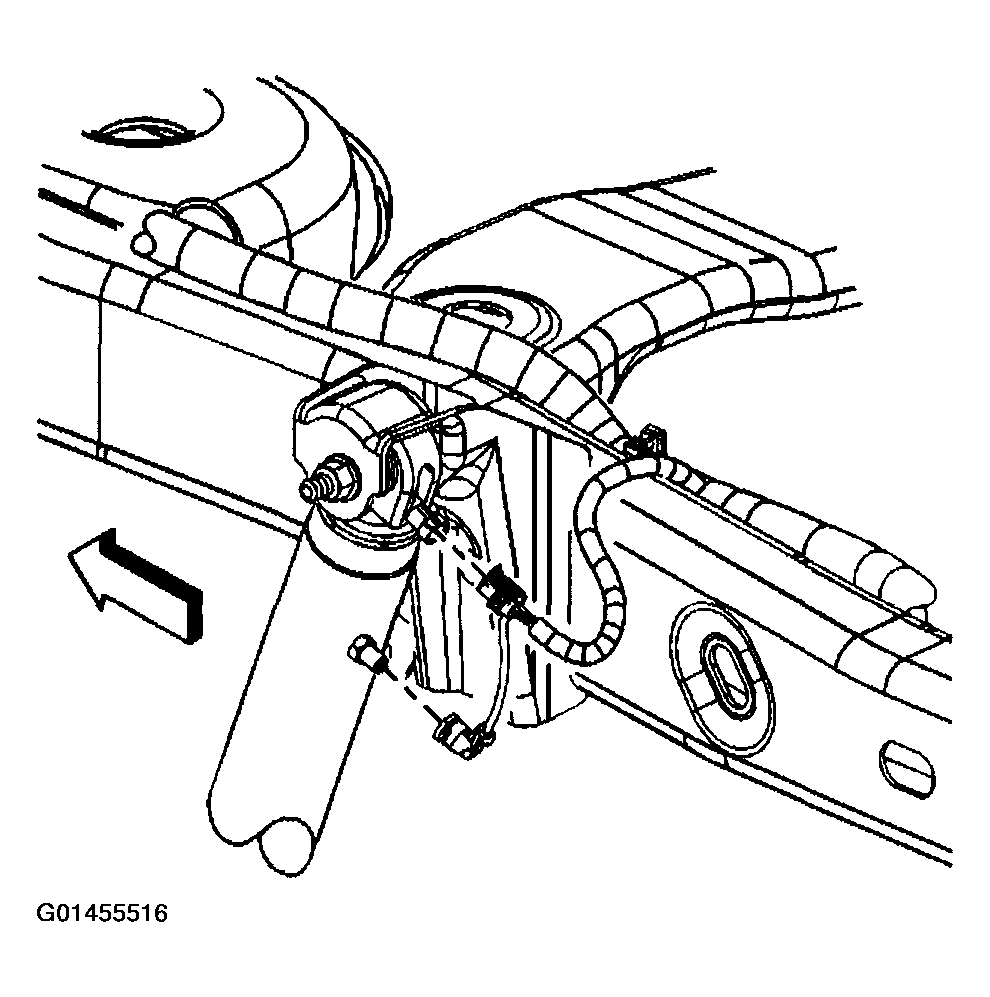

    Fig 1: Disconnecting Electrical Connector With Electronic Suspension Control
    G01455516Courtesy of GENERAL MOTORS CORP.
  5. Remove the upper shock absorber nut and the bolt.
  6. Remove the lower shock absorber nut and the bolt.
  7. Remove the shock absorber.

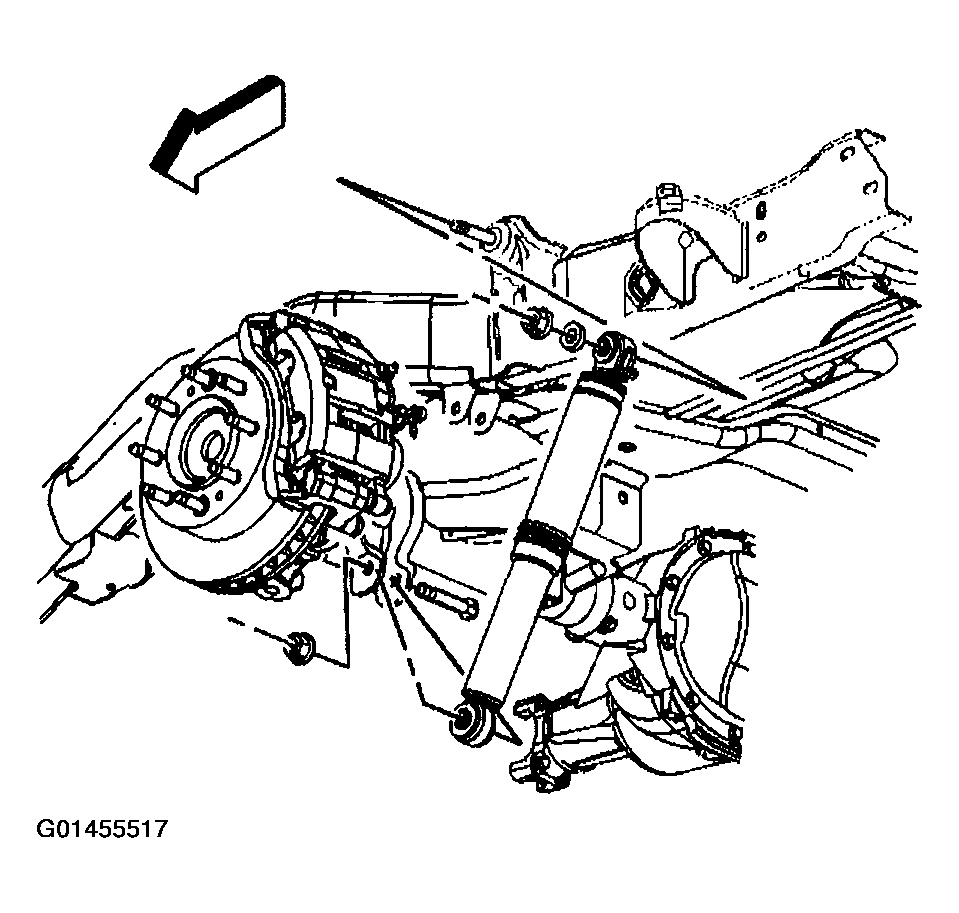

    Fig 2: Removing Shock Absorber
    G01455517Courtesy of GENERAL MOTORS CORP.
