Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information  .
  2. Disconnect the electronic suspension control (ESC) sensor, if equipped. Refer to REAR POSITION SENSOR REPLACEMENT--ELECTRONIC SUSPENSION--LEFT (15 SERIES) or REAR POSITION SENSOR REPLACEMENT--ELECTRONIC SUSPENSION--LEFT (25 SERIES) or REAR POSITION SENSOR REPLACEMENT--ELECTRONIC SUSPENSION--RIGHT in Electronic Suspension Control (ESC).
  3. Remove the upper control arm retaining nut and bolt from the frame bracket.

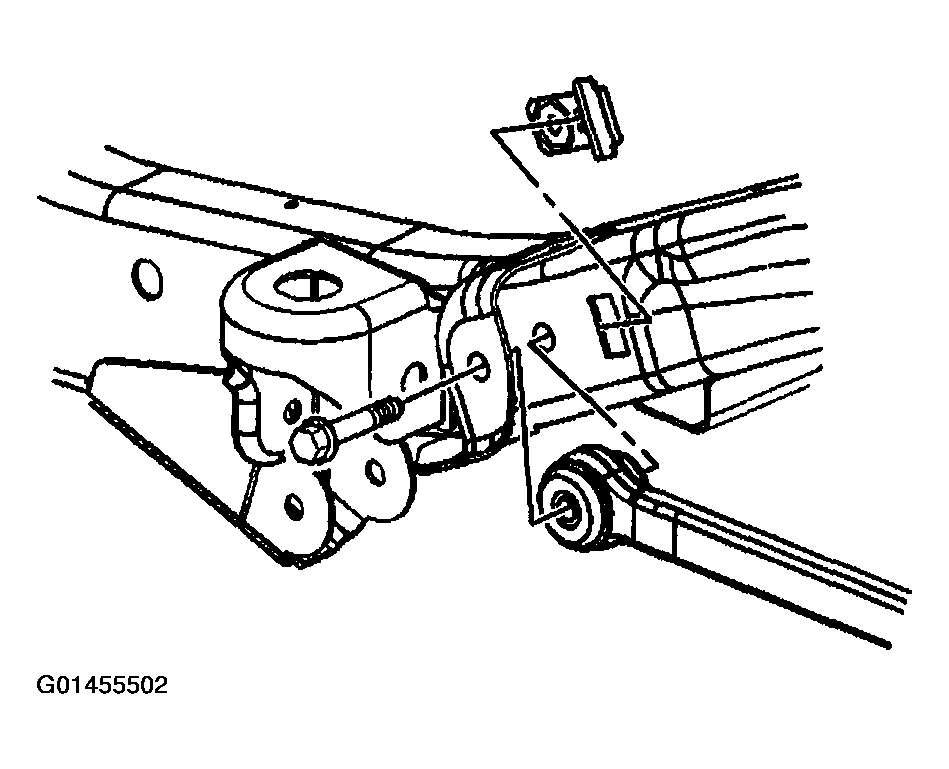

    Fig 1: Removing Upper Control Arm Retaining Nut And Bolt From Frame Bracket
    G01455502Courtesy of GENERAL MOTORS CORP.
  4. Remove the upper control arm retaining nut and bolt from the axle bracket.
  5. Remove the upper control arm.

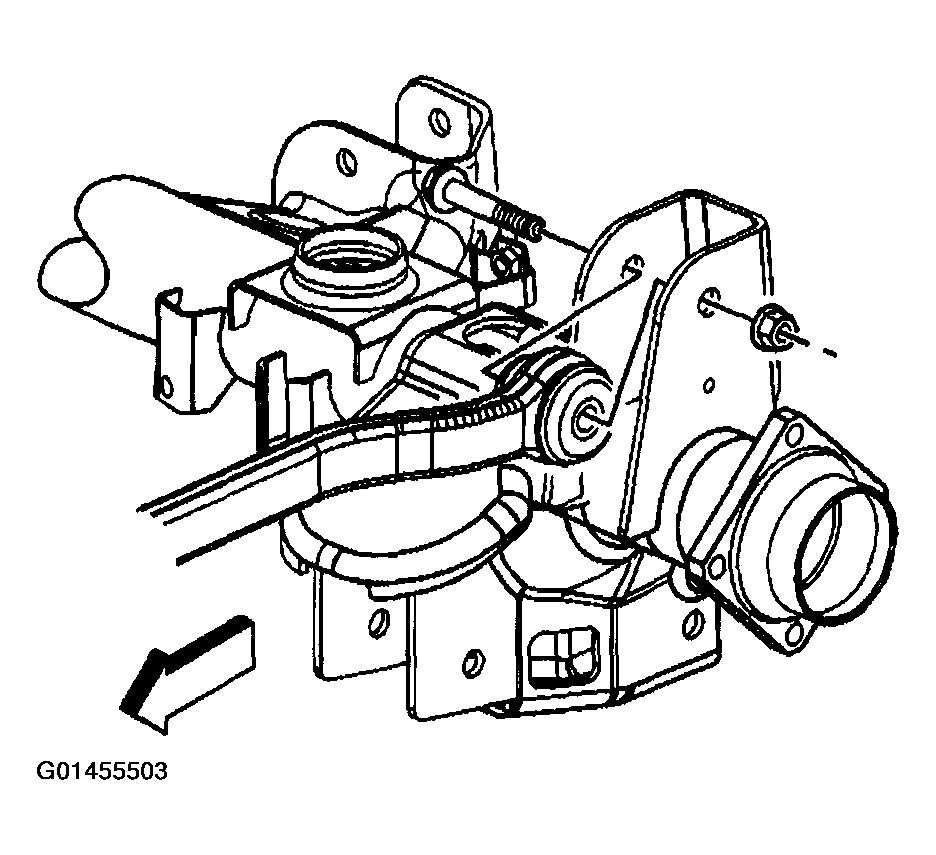

    Fig 2: Removing Upper Control Arm Retaining Nut And Bolt From Axle Bracket
    G01455503Courtesy of GENERAL MOTORS CORP.
