Installation Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
- Install the upper control arm.

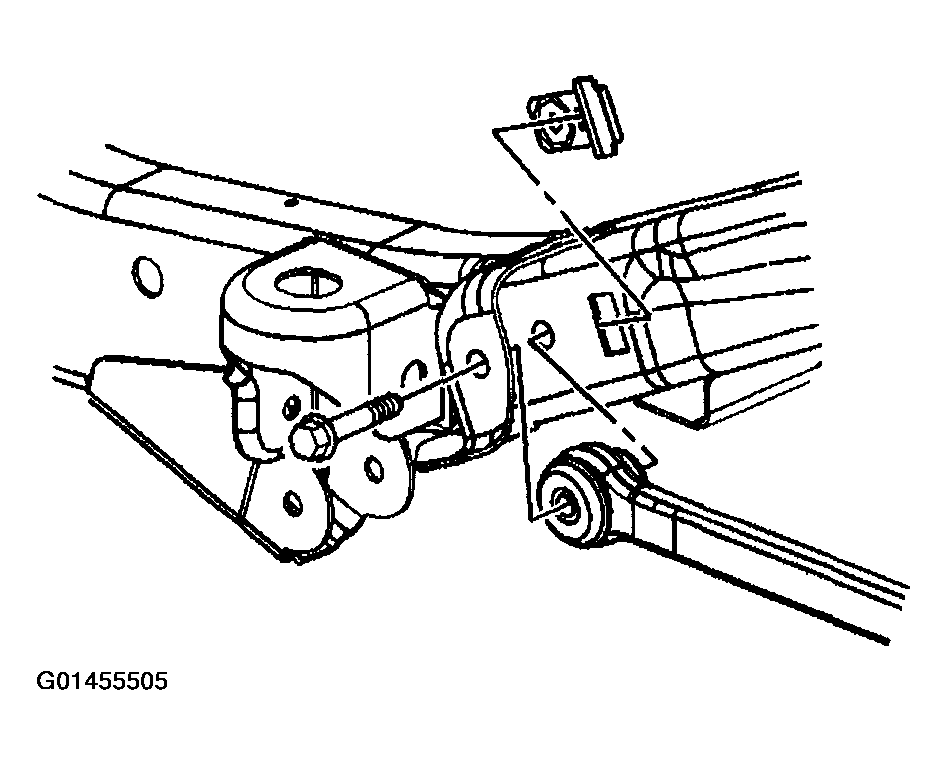

- Install the upper control arm retaining bolt and nut to the axle bracket.

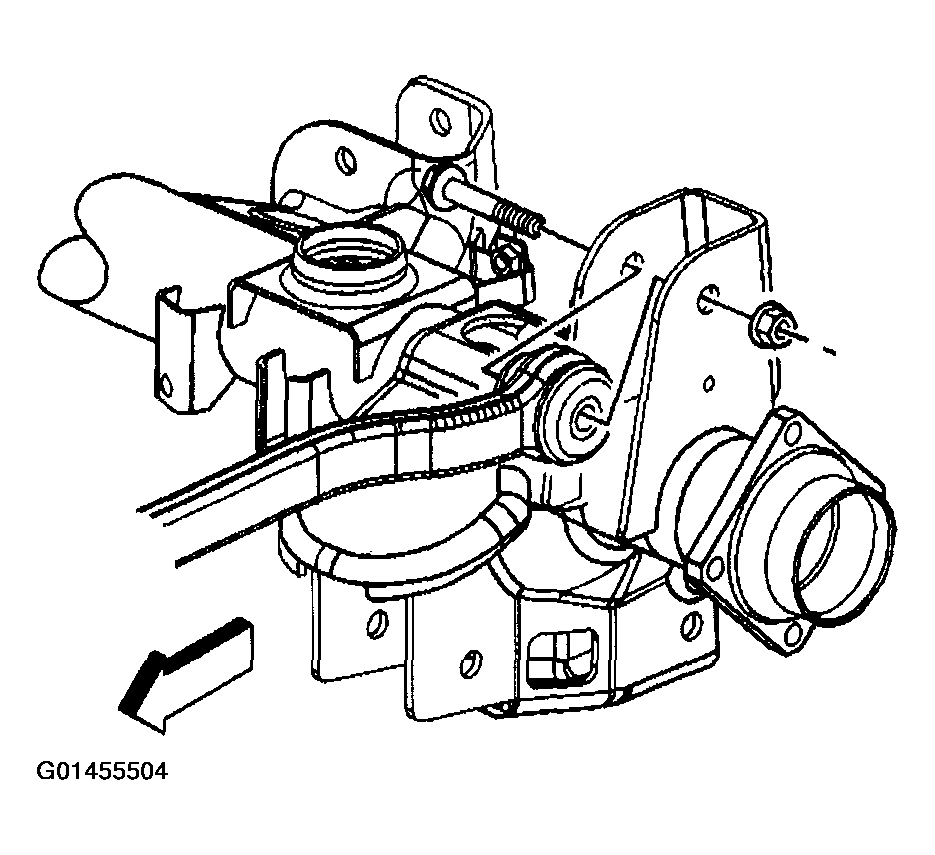

- Install the upper control arm retaining bolt to the frame bracket.NOTE: Refer to Fastener Notice on page P-9 in Cautions and Notices.
Important: Do not tighten the nuts unless the suspension is at the curb height position.
- Install the upper control arm retaining nut.
Tighten
Tighten the upper control arm retaining bolts to 105 N.m (77 lb ft).
- Connect the (ESC) sensor, if equipped. Refer to REAR POSITION SENSOR REPLACEMENT--ELECTRONIC SUSPENSION--LEFT (15 SERIES) or REAR POSITION SENSOR REPLACEMENT--ELECTRONIC SUSPENSION--LEFT (25 SERIES) or REAR POSITION SENSOR REPLACEMENT--ELECTRONIC SUSPENSION--RIGHT in Electronic Suspension Control (ESC).
- Lower the vehicle.
