Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General  Information.
  2. Remove the lower control arm retaining nuts.
  3. Remove the lower control arm retaining bolt.
  4. Remove the lower control arm.

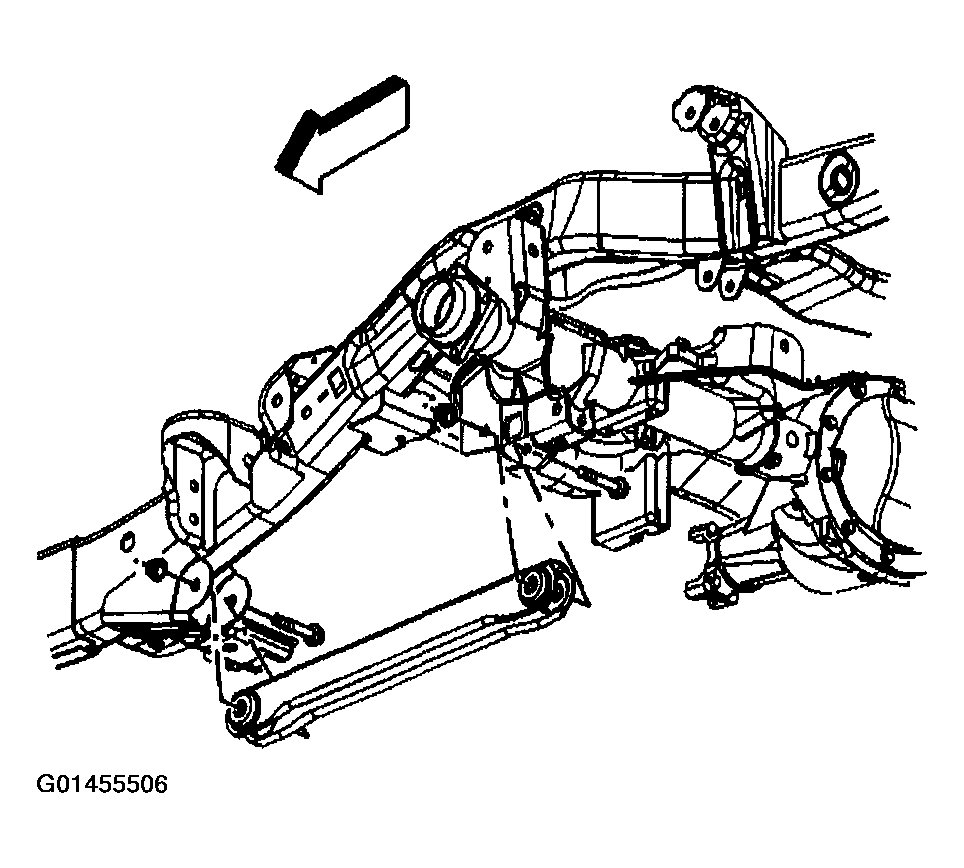

    Fig 1: Removing Lower Control Arm
    G01455506Courtesy of GENERAL MOTORS CORP.
