Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower control arm.
  2. Install the lower control arm retaining bolts.
    NOTE: Refer to Fastener Notice on page P-9 in Cautions and Notices.

    Important:  Do not tighten the bolts unless the suspension is at the ride height.

  3. Install the lower control arm retaining nut.

    Tighten

    Tighten the lower control arm retaining bolts to 120 N.m (89 lb ft).

  4. Remove the rear axle support.
  5. Lower the vehicle.

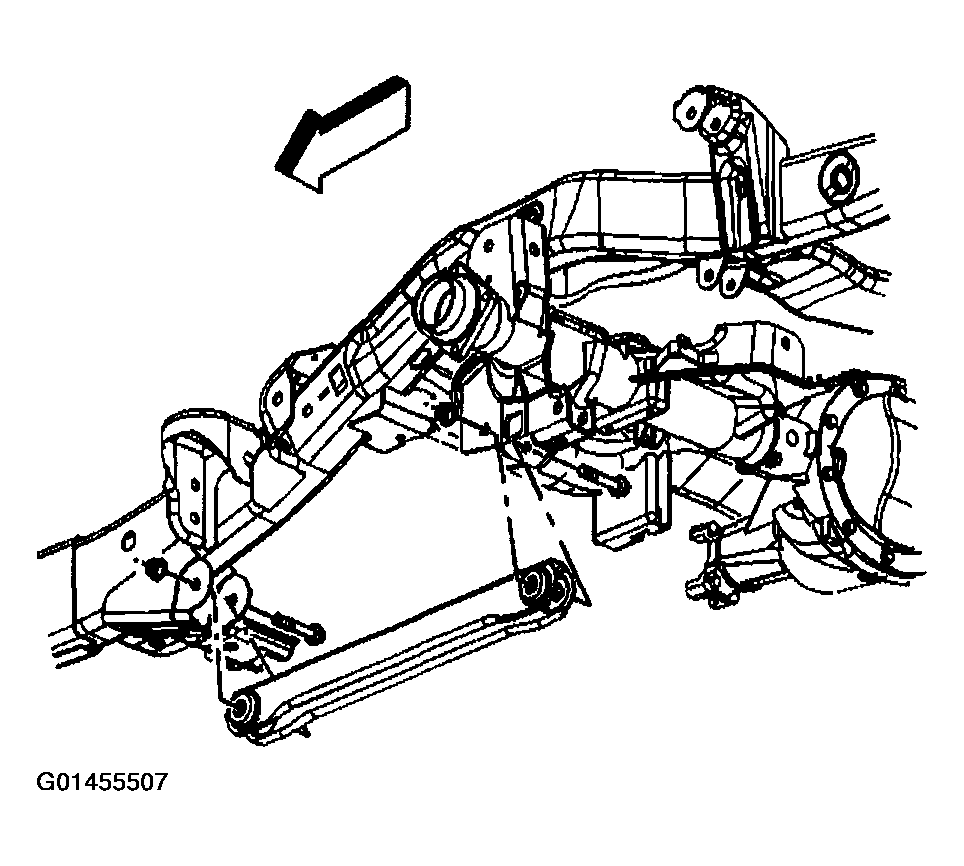

    Fig 1: Installing Lower Control Arm
    G01455507Courtesy of GENERAL MOTORS CORP.
