Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the rotor. Refer to BRAKE ROTOR in Disc Brakes.
  4. Remove the wheel speed sensor and brake hose mounting bracket bolt from the steering knuckle.
  5. Remove the wheel hub and bearing (4) 15-series mounting bolts.

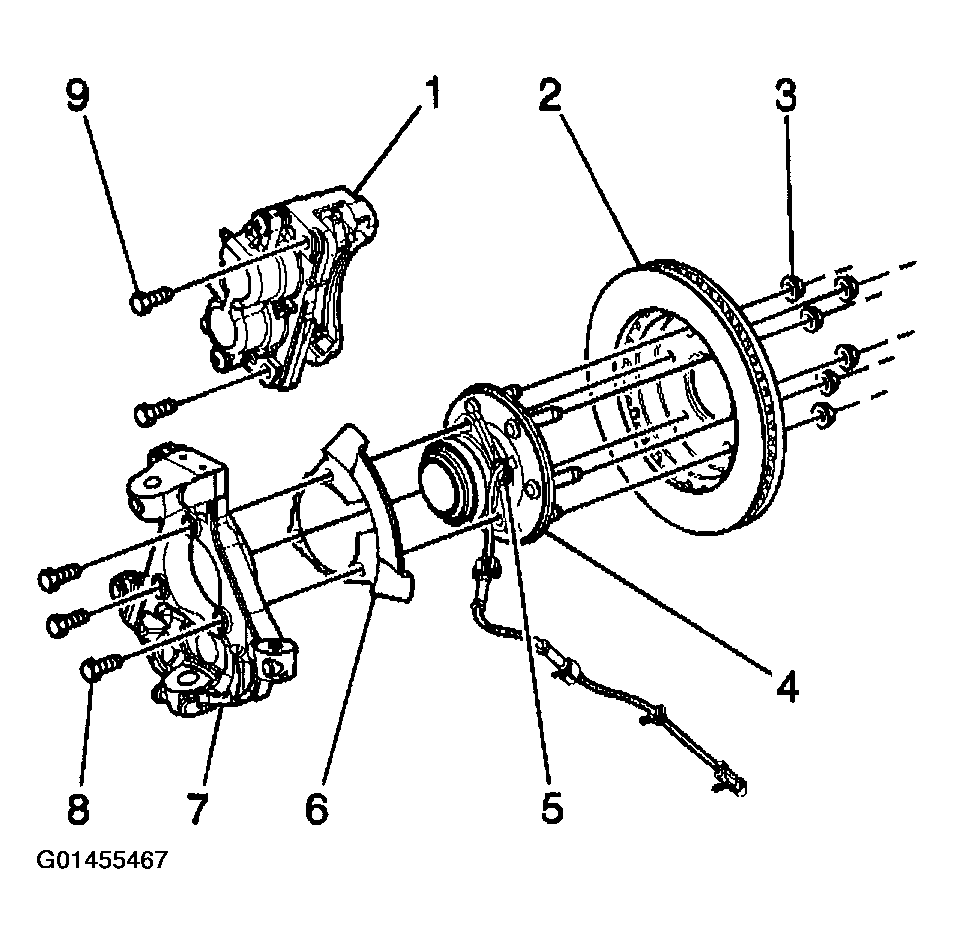

    Fig 1: Removing Wheel Hub & Bearing 15-Series Mounting Bolts
    G01455467Courtesy of GENERAL MOTORS CORP.
  6. Remove the wheel hub and bearing mounting bolts (4), the 25/35 series.
  7. Remove the wheel hub and bearing and splash shield from the vehicle.
  8. Remove the O-ring seal from the steering knuckle bore, the 25/35 series.
  9. Remove the wheel speed sensor mounting bolt (5).
  10. Clean and inspect the O-ring seal, the 25/35 series.
  11. Replace the seal if the following conditions exist:
    • Nicks
    • Cuts
    • Dry or brittle
    • Compression set

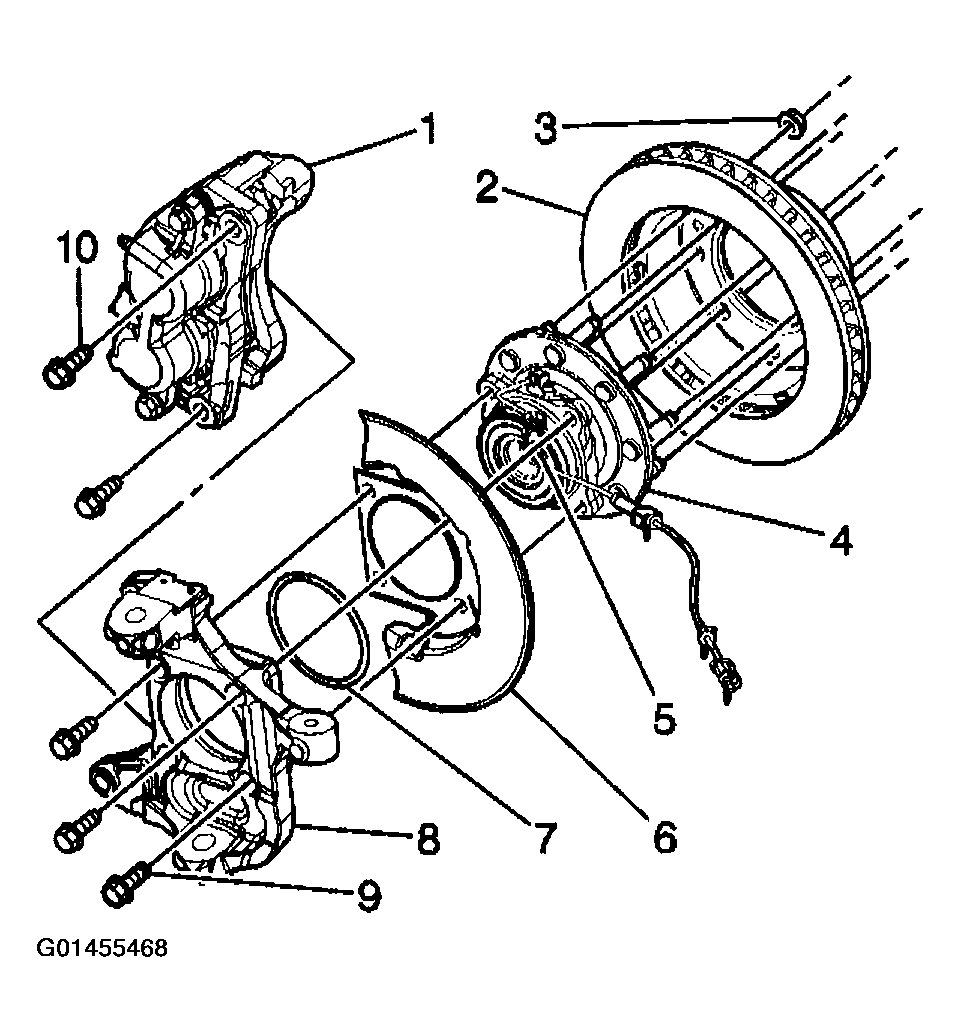

    Fig 2: Removing Wheel Hub & Bearing Mounting Bolts 25/35 Series
    G01455468Courtesy of GENERAL MOTORS CORP.
