Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use care when handling the torsion bars in order to avoid chipping or scratching the coating. Damage to the coating will result in premature failure of the torsion bars.

Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
Install the J 36202 to the adjustment arm and the crossmember.
Increase the tension on the adjustment arm until the load is removed from the adjustment bolt and the adjuster nut.

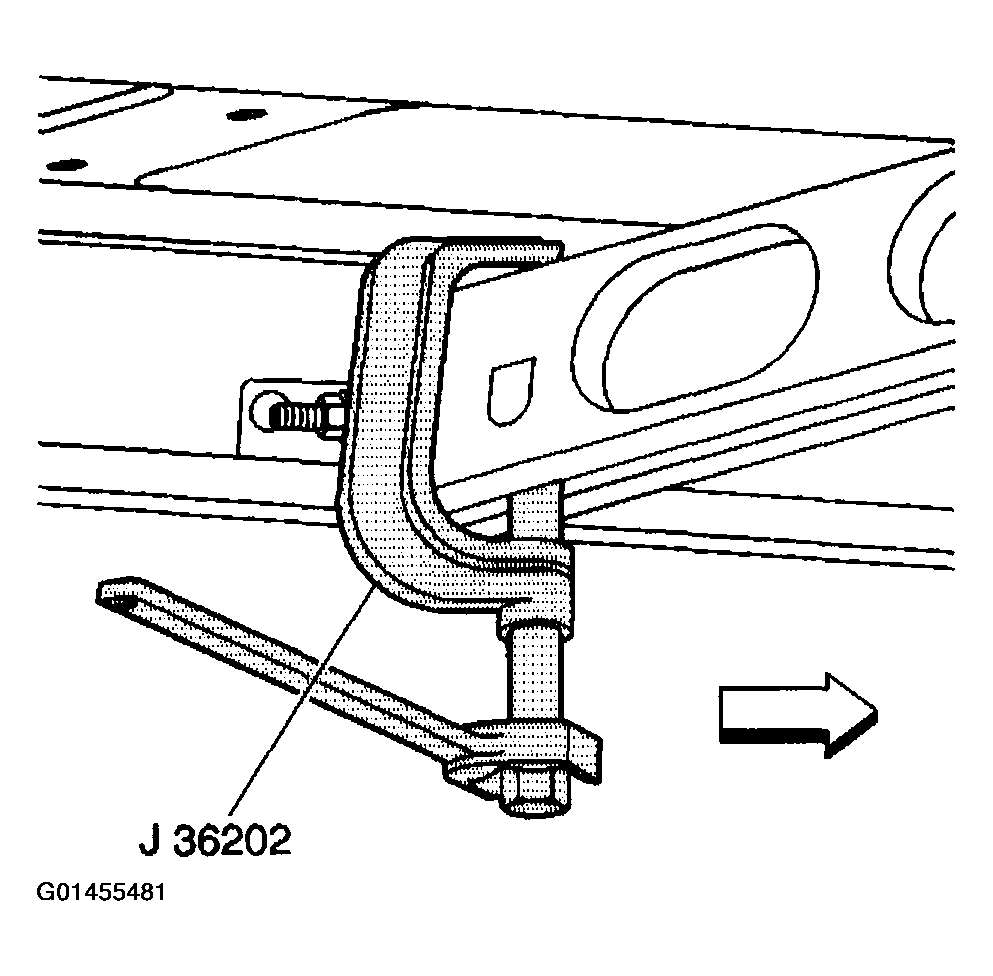

Fig 1: Installing J 36202 To Adjustment Arm & Crossmember
Courtesy of GENERAL MOTORS CORP.

Important: Mark the adjustment bolt and count the number of times that is required to remove the adjustment bolt.
Remove the adjustment bolt (3) and the adjuster nut (4).

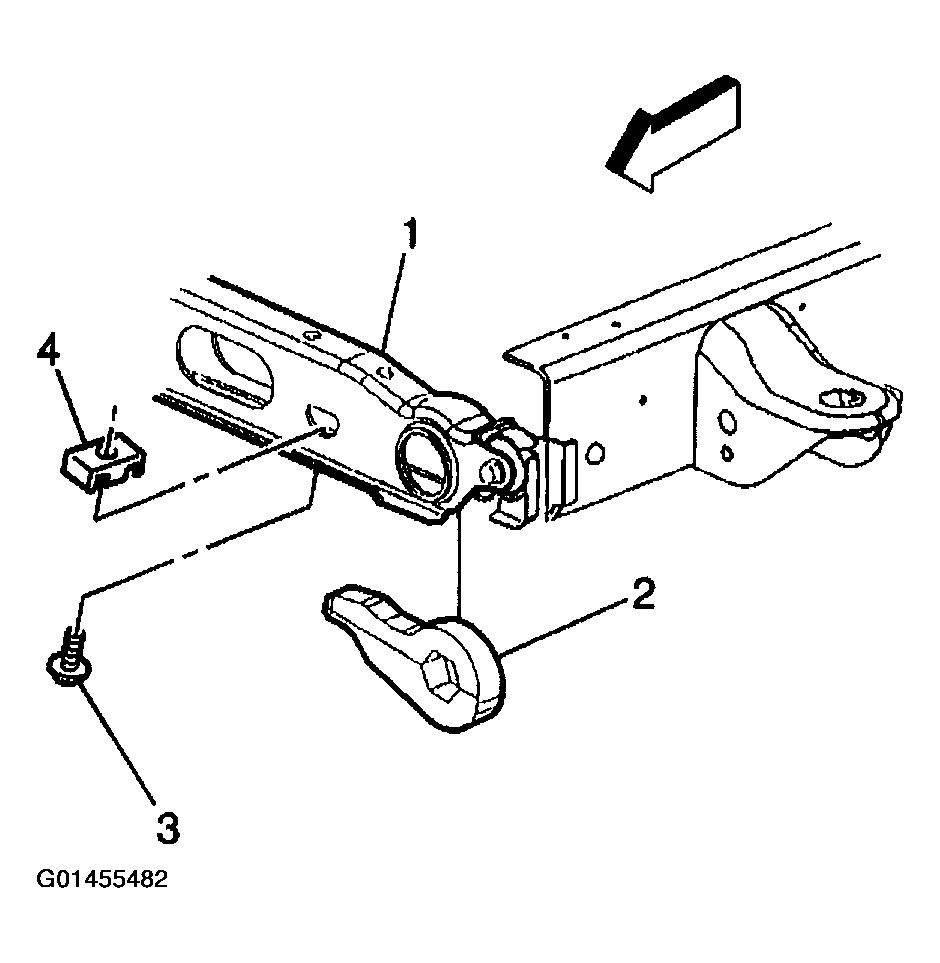

Fig 2: Removing Adjustment Bolt & Adjuster Nut
Courtesy of GENERAL MOTORS CORP.
Remove the J 36202 , allowing the torsion bar to unload.
Remove the adjustment arm by sliding the torsion bar forward until the torsion bar clears the adjustment arm. Use your hand to support the adjustment arm as the adjustment arm releases from the torsion bar.

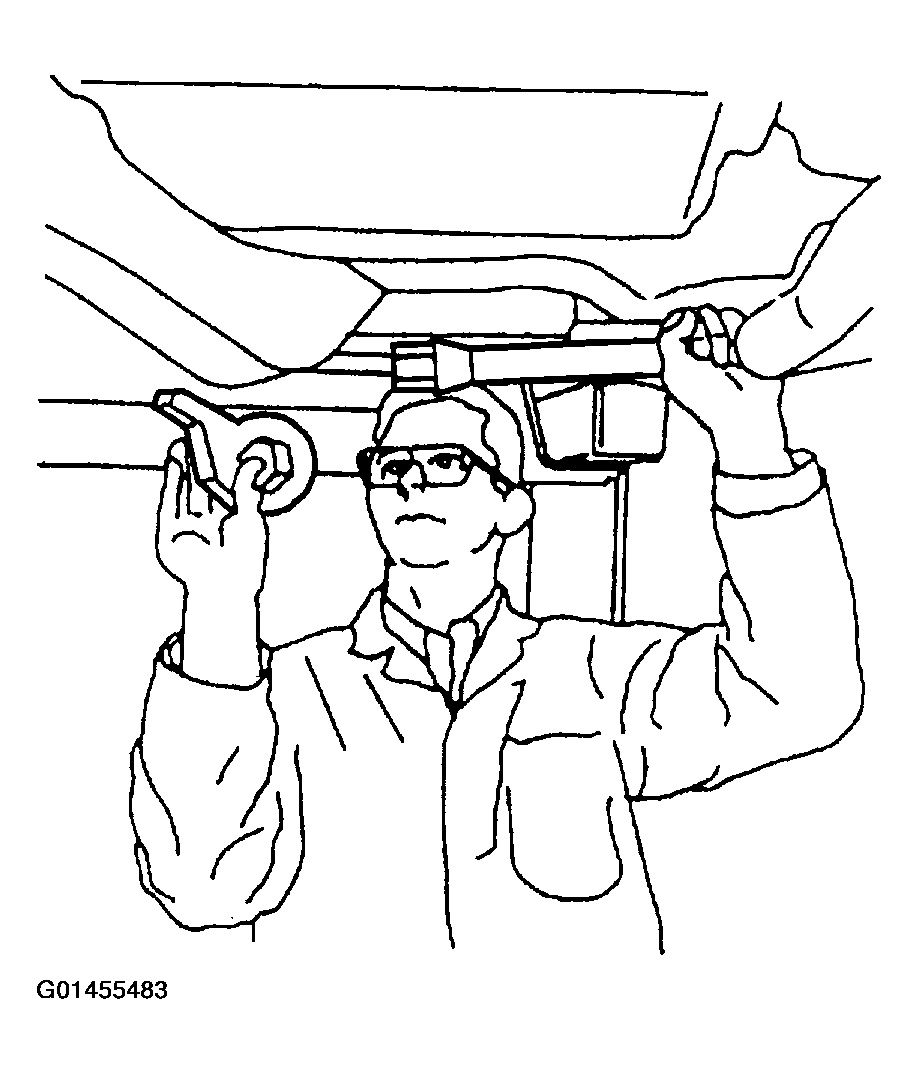

Fig 3: Using Your Hand To Support Adjustment Arm As Adjustment Arm Releases From Torsion Bar
Courtesy of GENERAL MOTORS CORP.
Remove the torsion bar crossmember bolts (4) from the weld nuts (1).

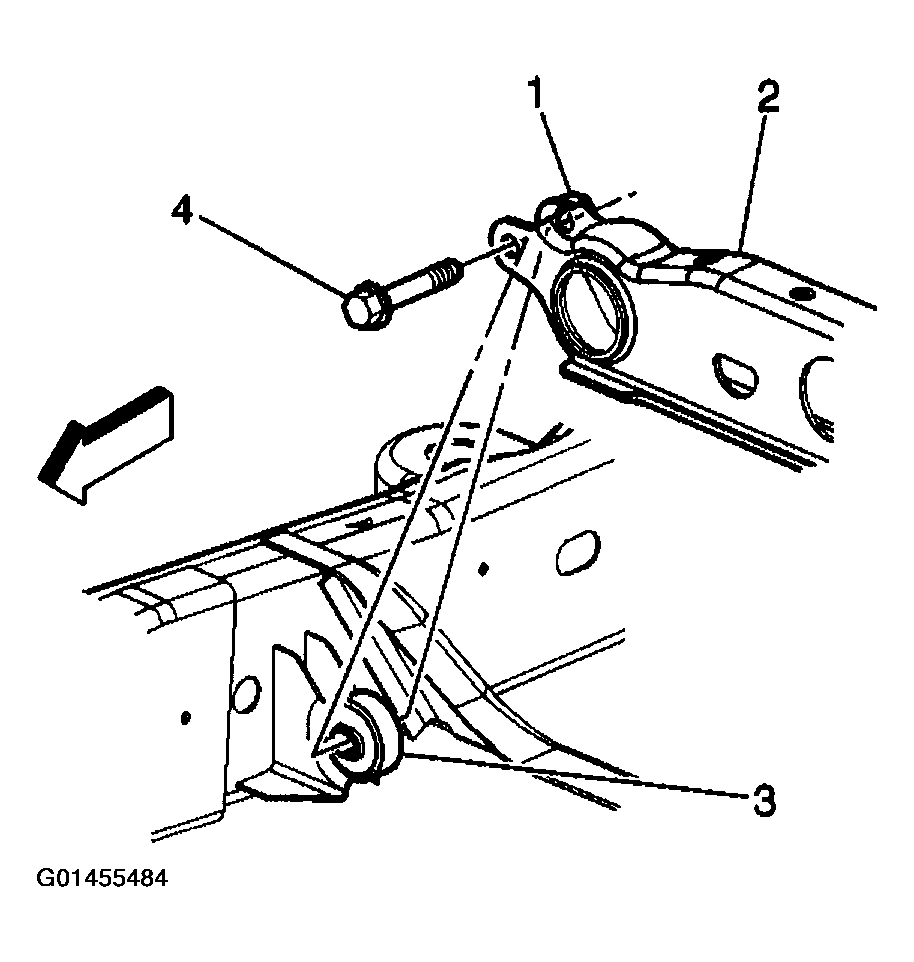

Fig 4: Removing Torsion Bar Crossmember Bolts From Weld Nuts
Courtesy of GENERAL MOTORS CORP.

Important: Note the position of the torsion bars as the left and right bars are different.
Remove the torsion bars from the vehicle.

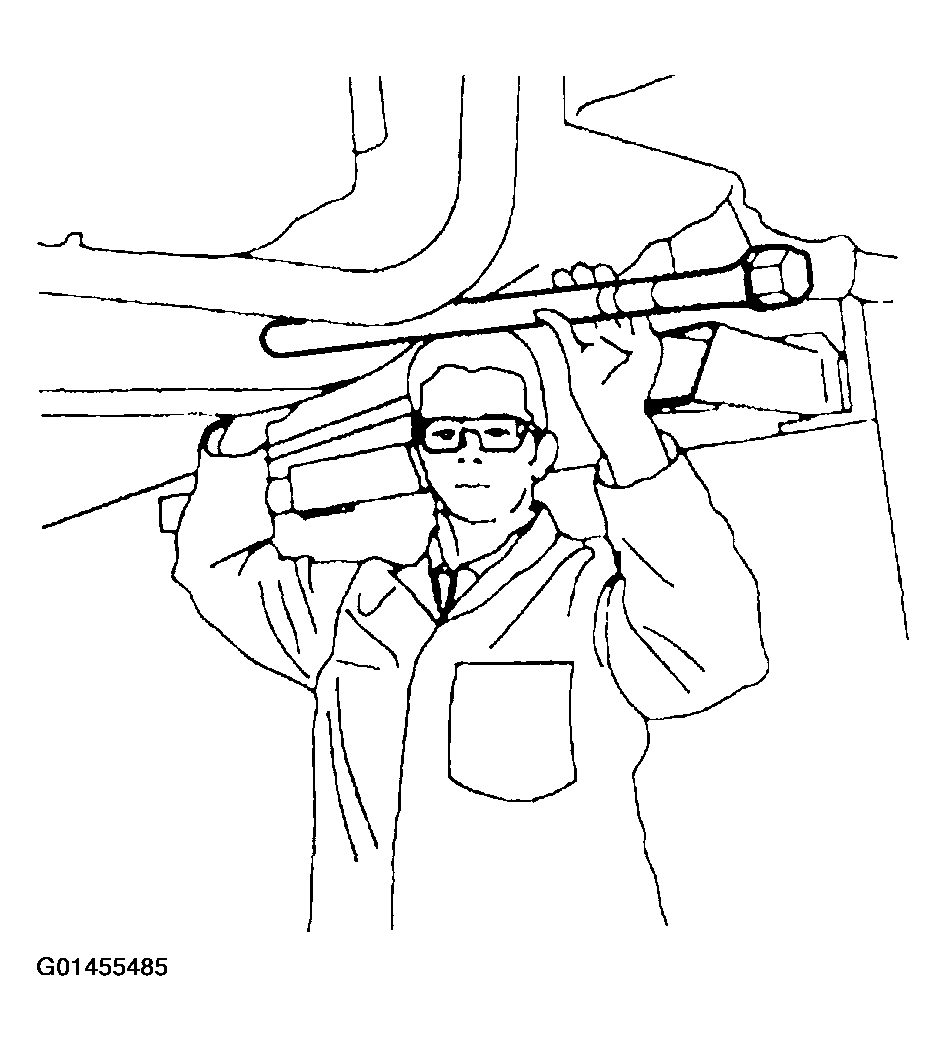

Fig 5: Removing Torsion Bars From Vehicle
Courtesy of GENERAL MOTORS CORP.
