Disassembly Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the thrust support assembly. Refer to STEERING GEAR THRUST SUPPORT REPLACEMENT - OFF VEHICLE (700 GEAR)  .
  2. Remove the stub shaft (1) and the valve assembly (2) from the steering gear housing.
  3. If necessary, remove the stub shaft (1) from the valve assembly (2) in the following manner:
    1. Tap the stub shaft (1) lightly on a wood block in order to loosen the cap.
    2. Pull the cap and the valve spool out from valve body (2) 6 mm (1/4 in).
    3. Disengage the stub shaft pin (3) from the hole in the valve spool (4).

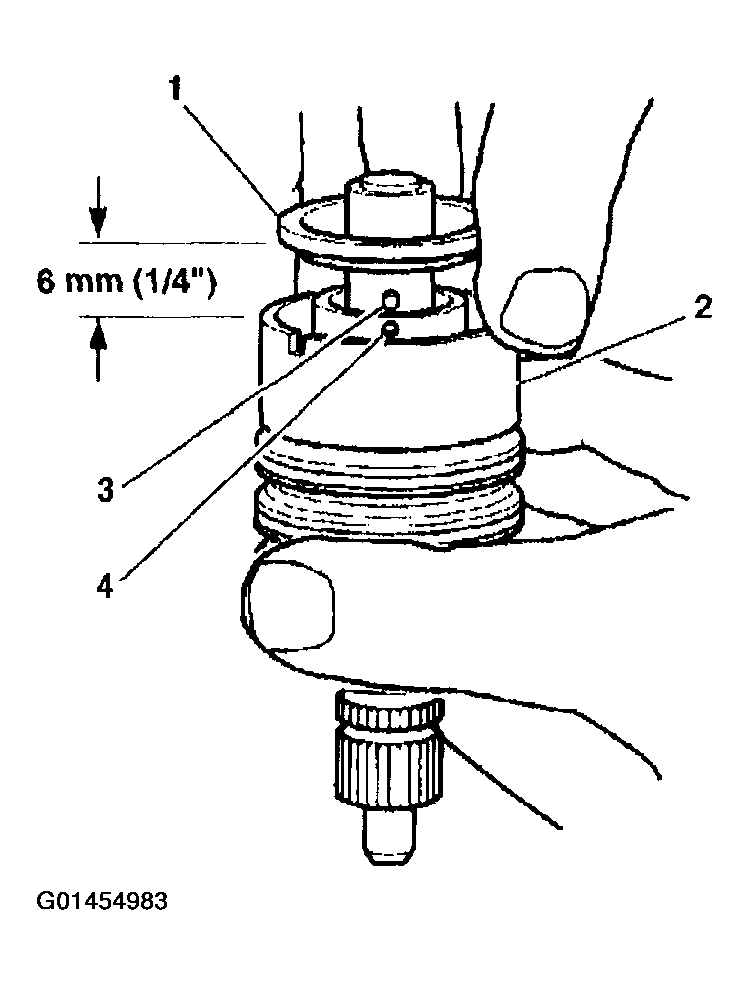

    Fig 1: Removing Stub Shaft And Valve Assembly
    G01454983Courtesy of GENERAL MOTORS CORP.
  4. If the valve assembly needs repair, disassemble the valve in the following manner:
    1. Simultaneously pull and rotate the valve spool (1) from the valve body (3).
    2. Remove the valve spool O-ring seal (2).
    3. Alternately remove the valve body teflon rings (5) and the O-ring seals (4).

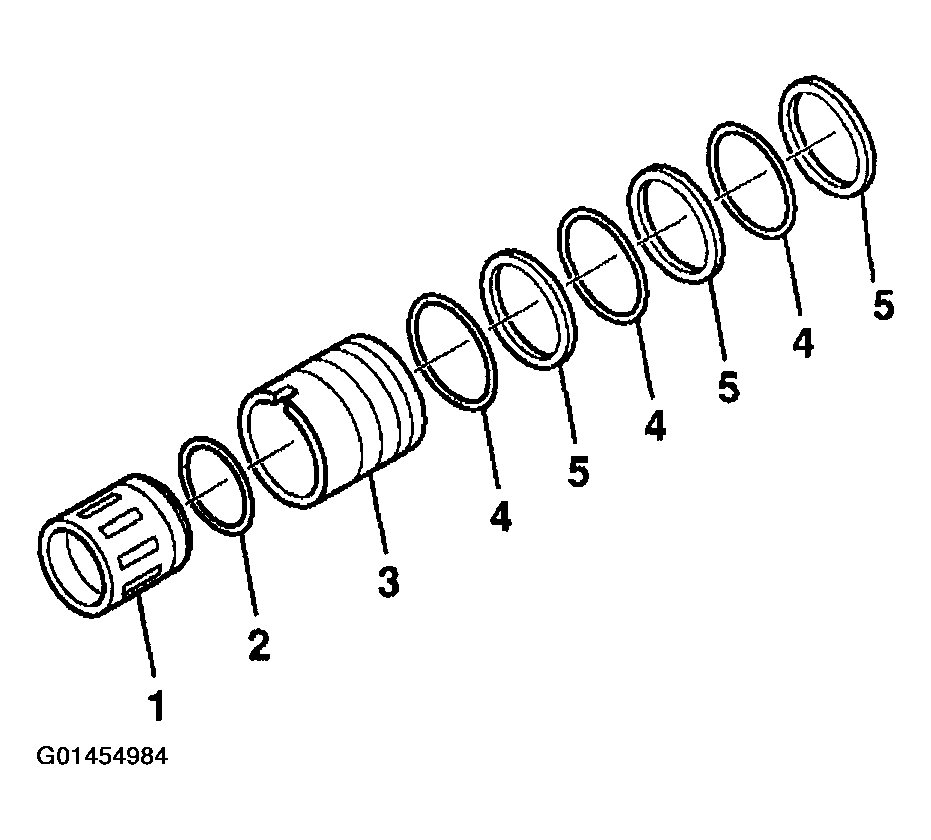

    Fig 2: Removing Valve Body Teflon Rings And O-Ring Seals
    G01454984Courtesy of GENERAL MOTORS CORP.
