Assembly Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Screw the pitman shaft (4) to the side cover (8) until it fully seats to the side cover (8).
  2. Install the adjuster lock nut (1). Do not tighten the adjuster lock nut (1) until the pitman shaft adjustment is completed.
  3. Install the pitman shaft assembly (4) and the side cover (8) to the steering gear housing (7).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the bolts (2).

    Tighten

    Tighten the bolts (2) to 60 N.m (45 lb ft).

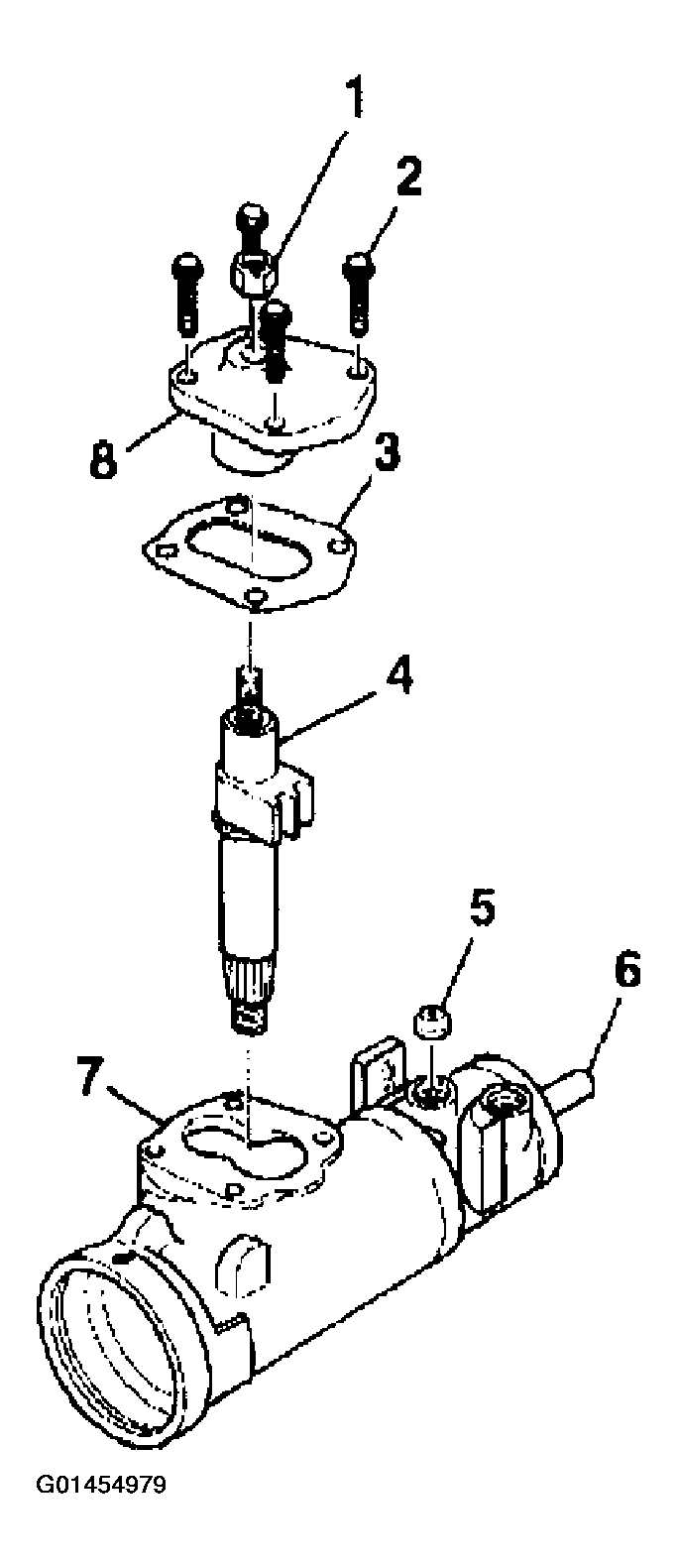

    Fig 1: Installing Pitman Shaft Assembly
    G01454979Courtesy of GENERAL MOTORS CORP.
  5. Install the lock washer (2).
  6. Install the nut (3).
  7. If necessary, adjust the pitman shaft. Refer to PITMAN SHAFT OVER-CENTER PRELOAD ADJUSTMENT - OFF VEHICLE (670 GEAR)  or PITMAN SHAFT OVER-CENTER PRELOAD ADJUSTMENT - OFF VEHICLE (700 GEAR)  to adjust the pitman shaft.

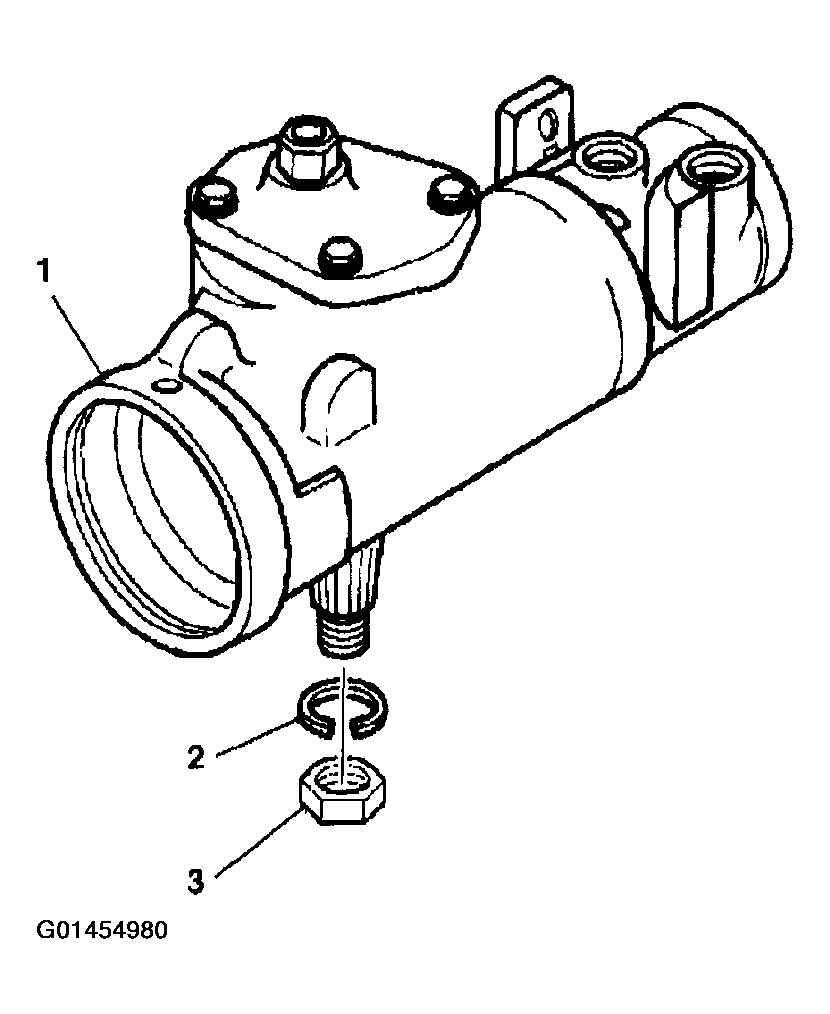

    Fig 2: Installing Nut
    G01454980Courtesy of GENERAL MOTORS CORP.
